Getting Started

Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
1. The Isuzu 98 System PCMCIA card (1) inserts into the Tech 2 (4).
2. Connect the SAE 16/19 adapter (2) to the DLC cable (3).
3. Connect the DLC cable to the Tech 2 (4)
4. Make sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC connector.

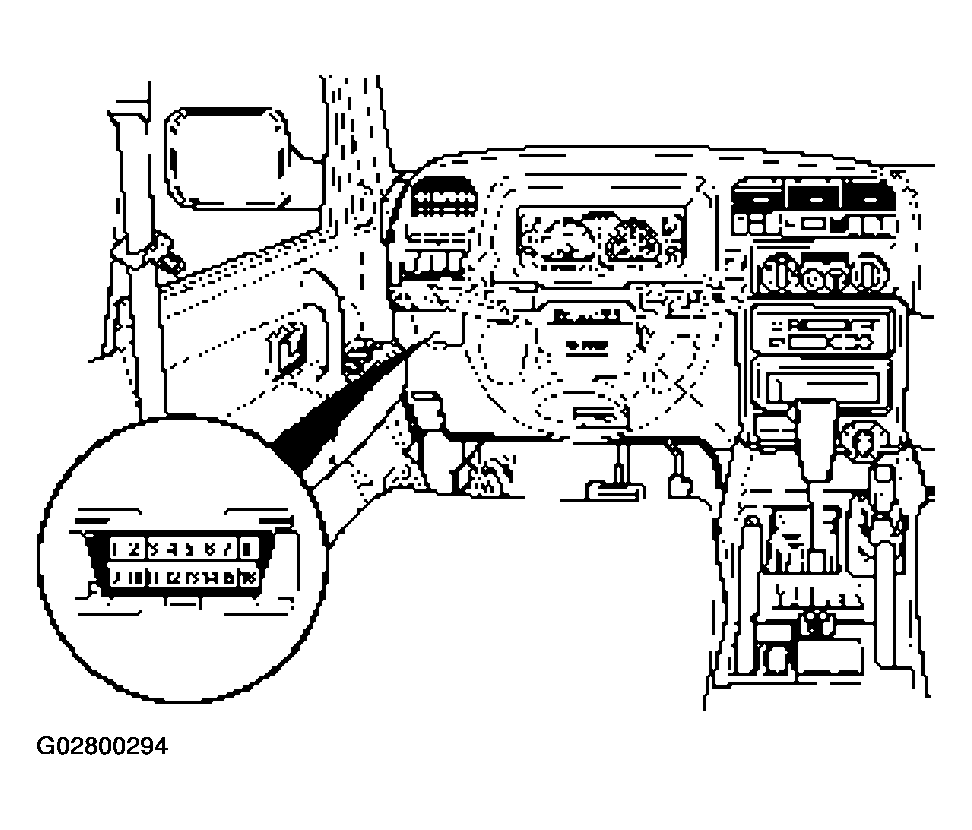

  Fig 1: Identifying DLC Connector Terminal
  Courtesy of ISUZU MOTOR CO.
6. The vehicle ignition turns on.
7. Power up the Tech 2.
8. Verify the Tech 2 power up display.

Fig 2: Identifying Tech 2 Power Up Display

G02800295

Courtesy of ISUZU MOTOR CO.
