Parts Location: Notes

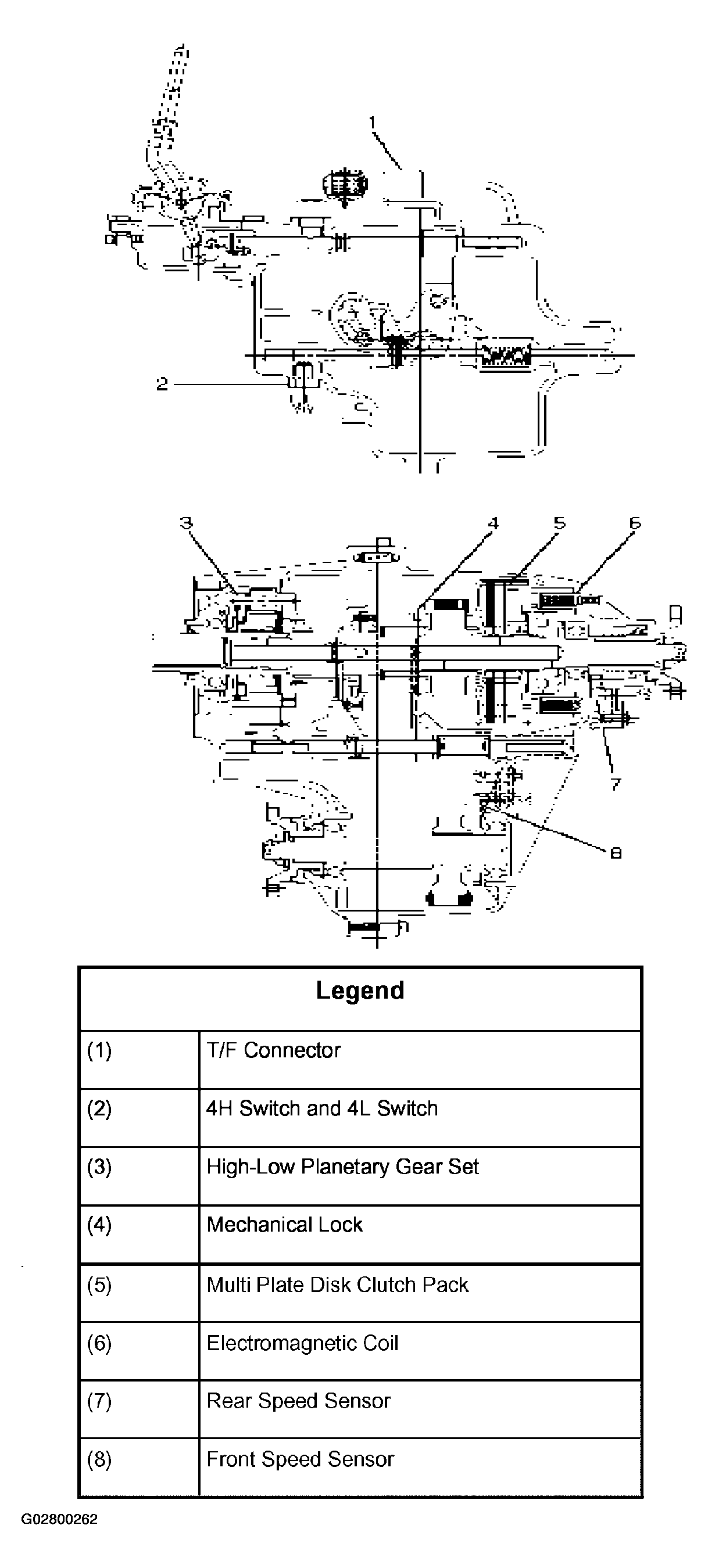

Fig 1: Identifying Driveline Control System (TOD) Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
