Battery Removal

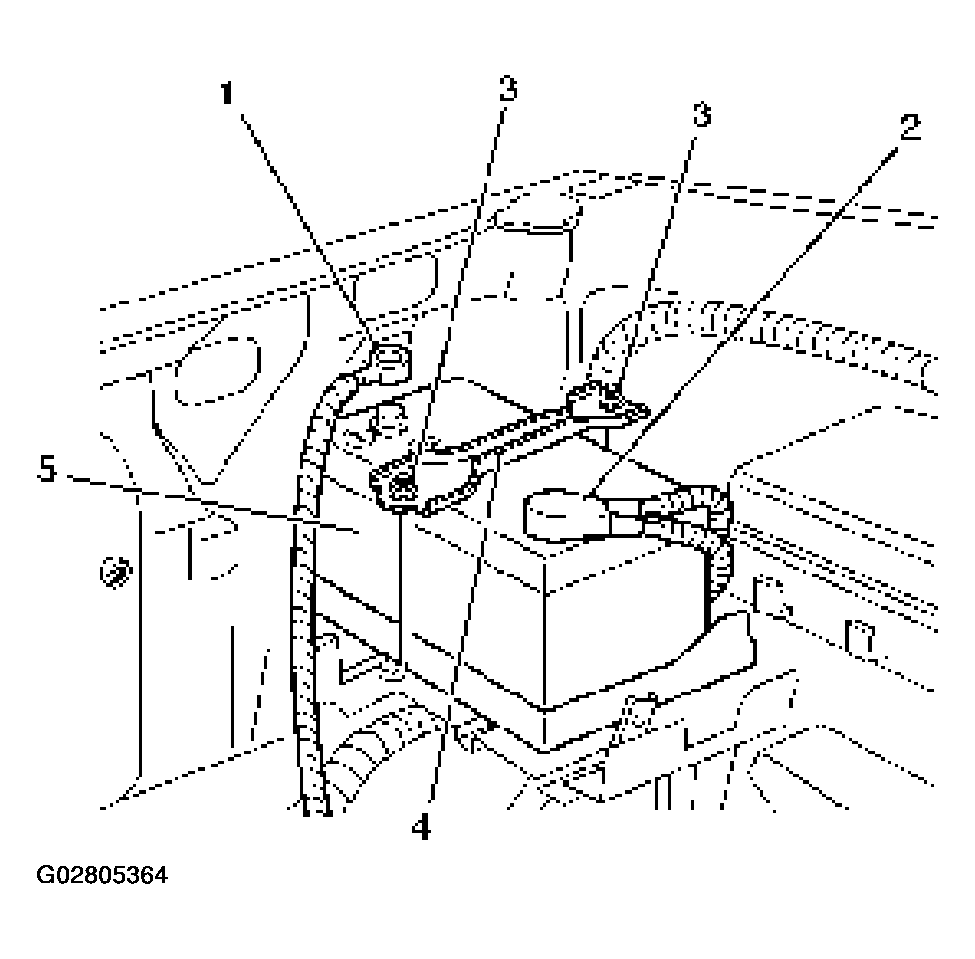

Fig 1: Removing Battery
G02805364Courtesy of ISUZU MOTOR CO.
  1. Remove negative cable (1).
  2. Remove positive cable (2).
  3. Remove retainer screw and rods (3).
  4. Remove retainer (4).
  5. Remove battery (5).
