Inflator Module: Removal

  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn the ignition switch to "LOCK".
  3. Disconnect the battery "-" terminal cable, and wait at least 5 minutes.
  4. Disconnect the yellow 2-way SRS connector located under the steering column.
  5. Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX(R) driver or equivalent until the inflator module can be released from steering assembly.

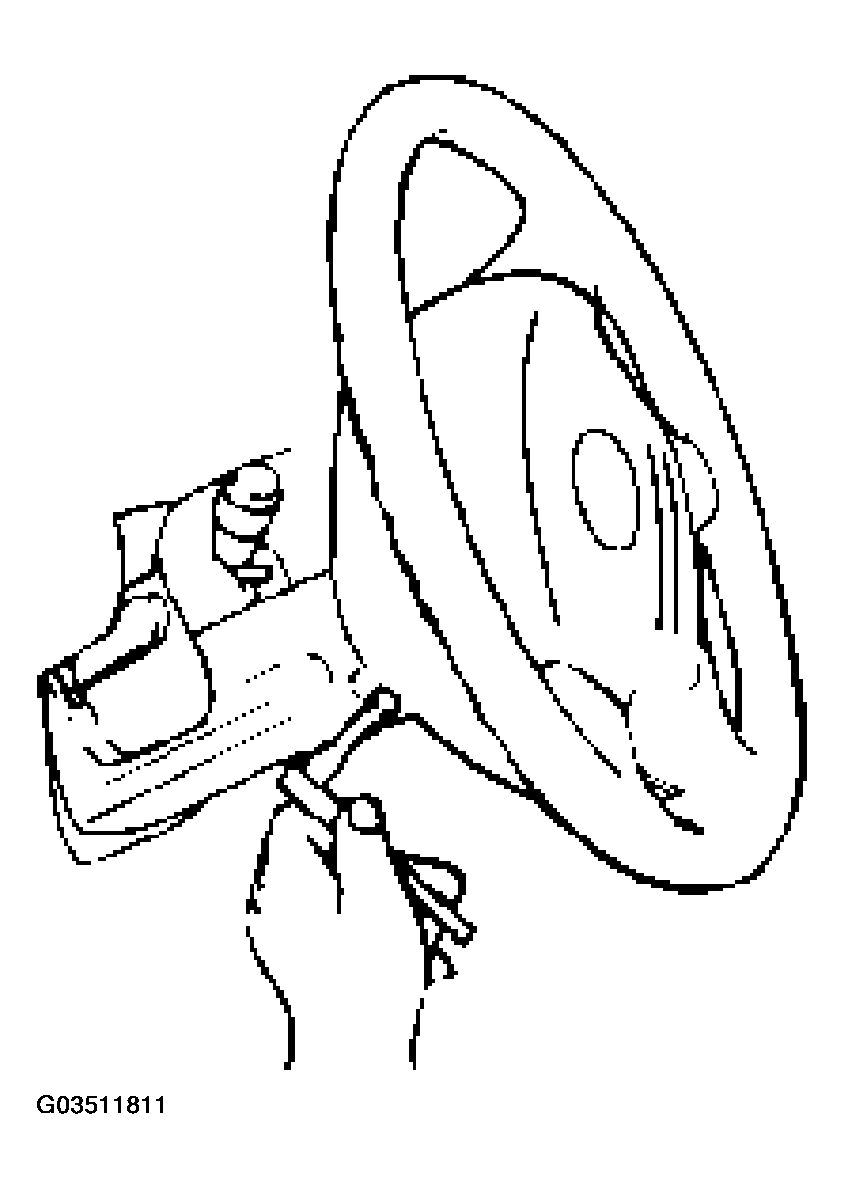

    Fig 1: Loosening Inflator Module Fixing Bolt From Behind Steering Wheel Assembly Using TORX(R)
    G03511811Courtesy of ISUZU MOTOR CO.
  6. Disconnect the yellow 2-way SRS connector and horn lead located behind the inflator module.

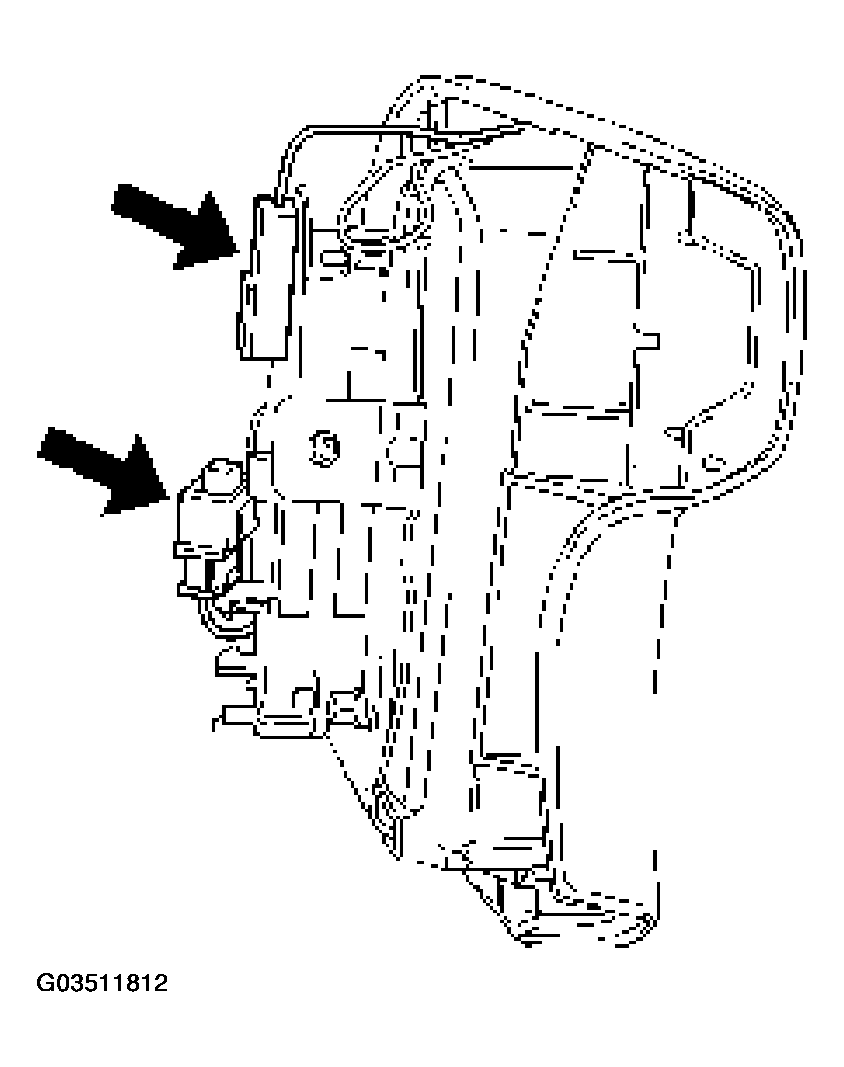

    Fig 2: Disconnecting Yellow 2-Way SRS Connector & Horn Lead Located Behind Inflator Module
    G03511812Courtesy of ISUZU MOTOR CO.
  7. Remove inflator module.
