Torque Specifications

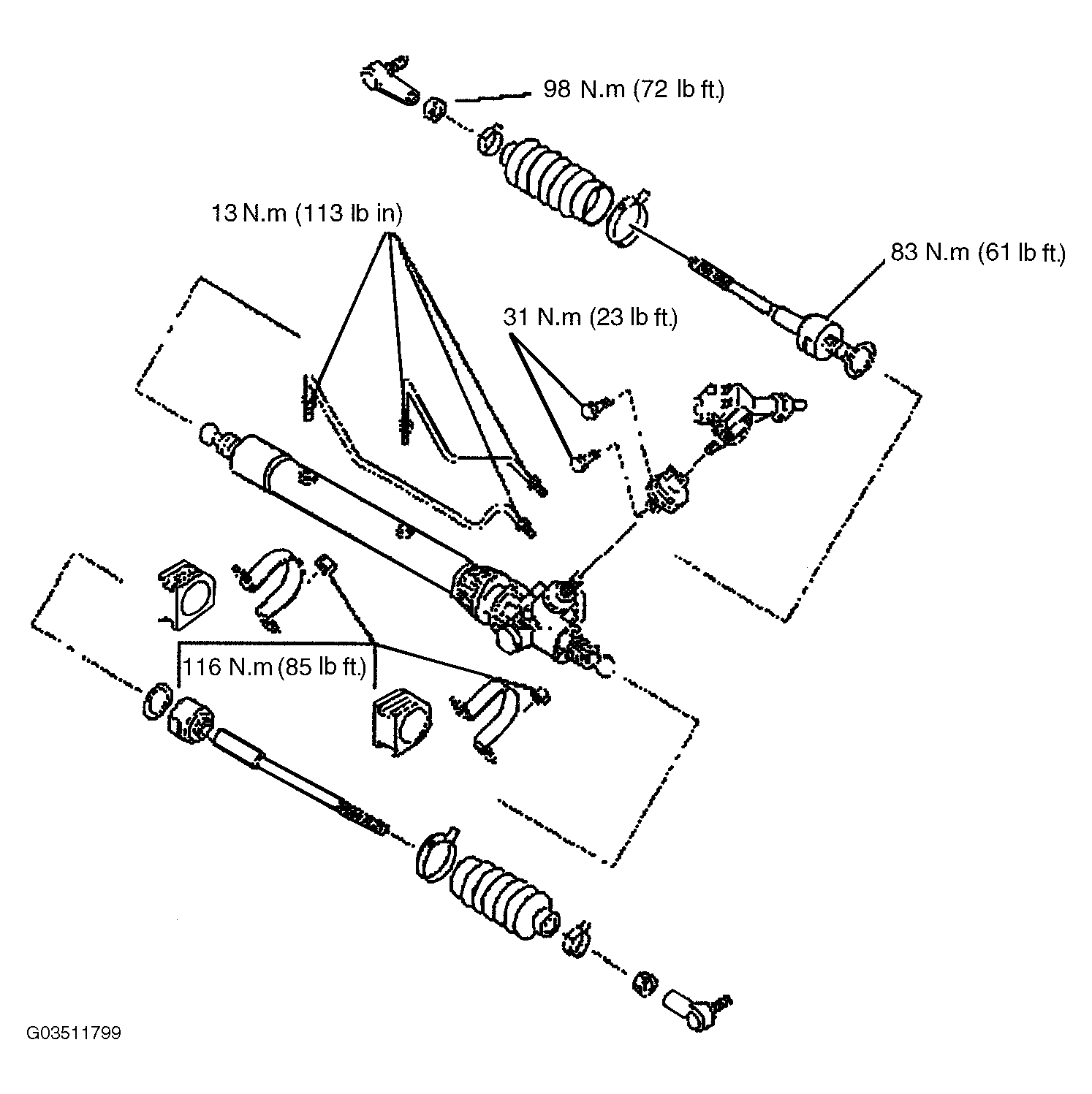

Fig 1: Torque Specifications Power Steering Unit Components
G03511799Courtesy of ISUZU MOTOR CO.

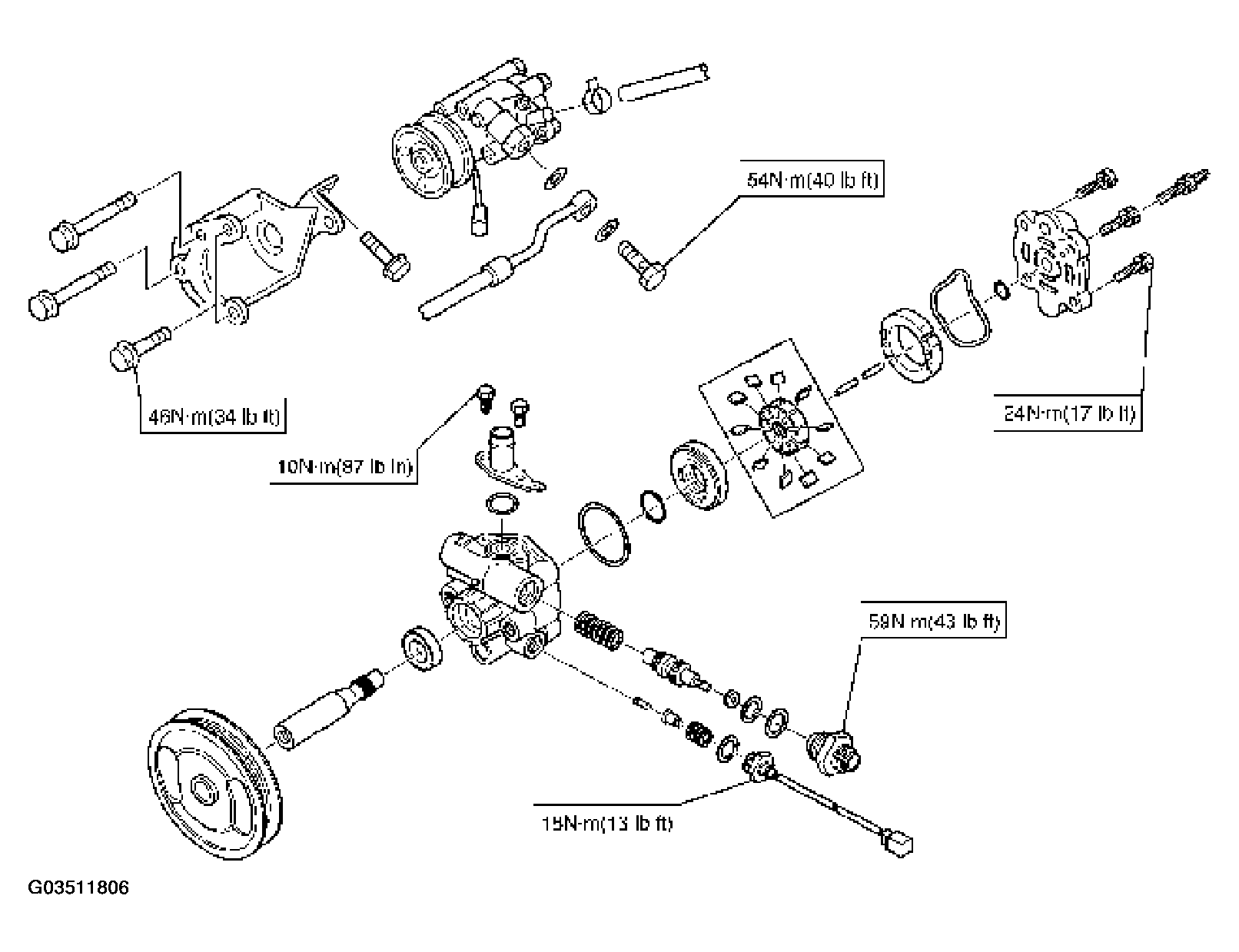

Fig 1: Torque Specifications
G03511806Courtesy of ISUZU MOTOR CO.
