Automatic Transmission
>>
Preliminary Inspection Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Preliminary Inspection Chart

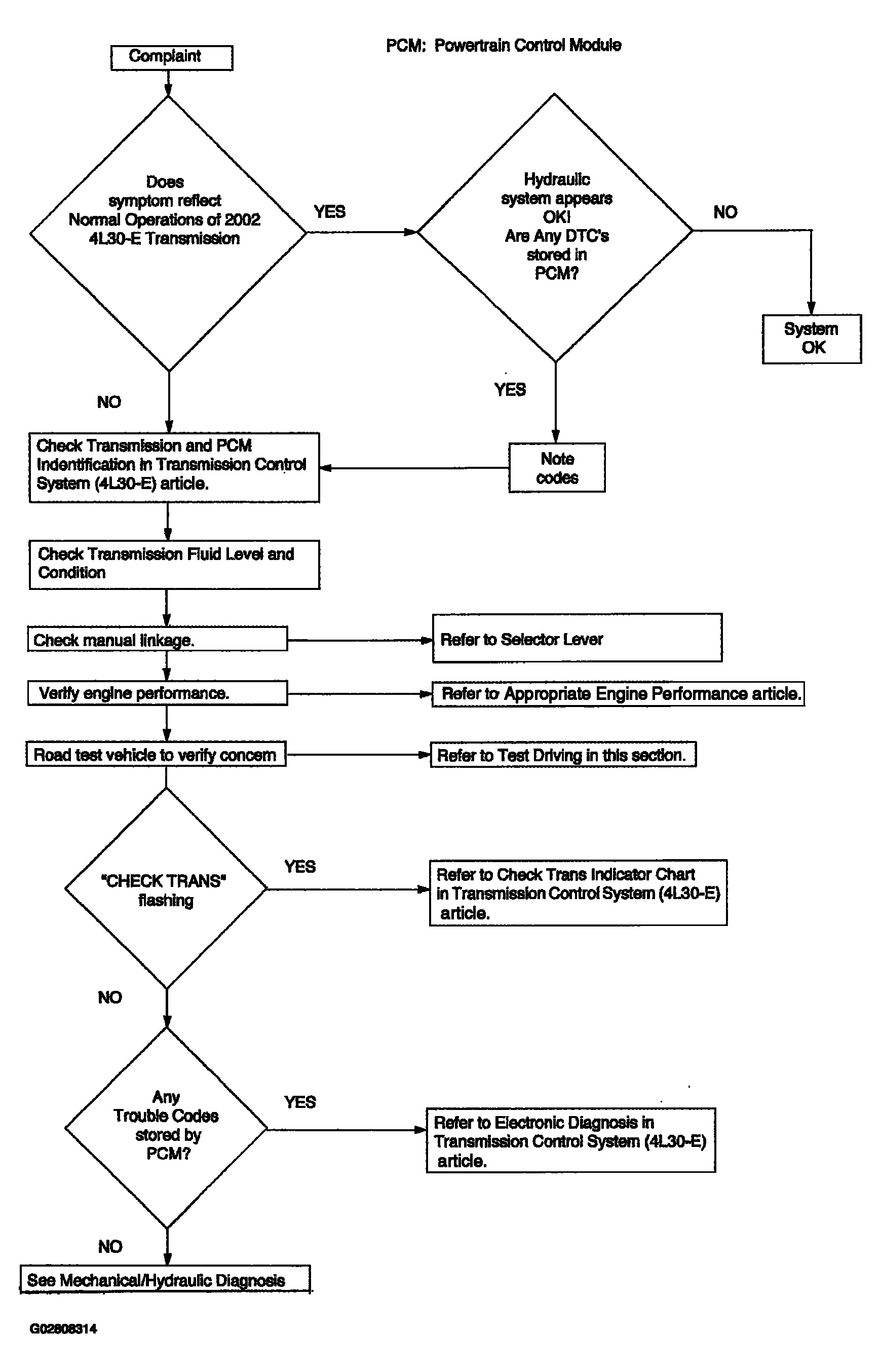

Fig 1: Preliminary Inspection Flow Chart
Courtesy of ISUZU MOTOR CO.
