"Normal Mode": Upshift

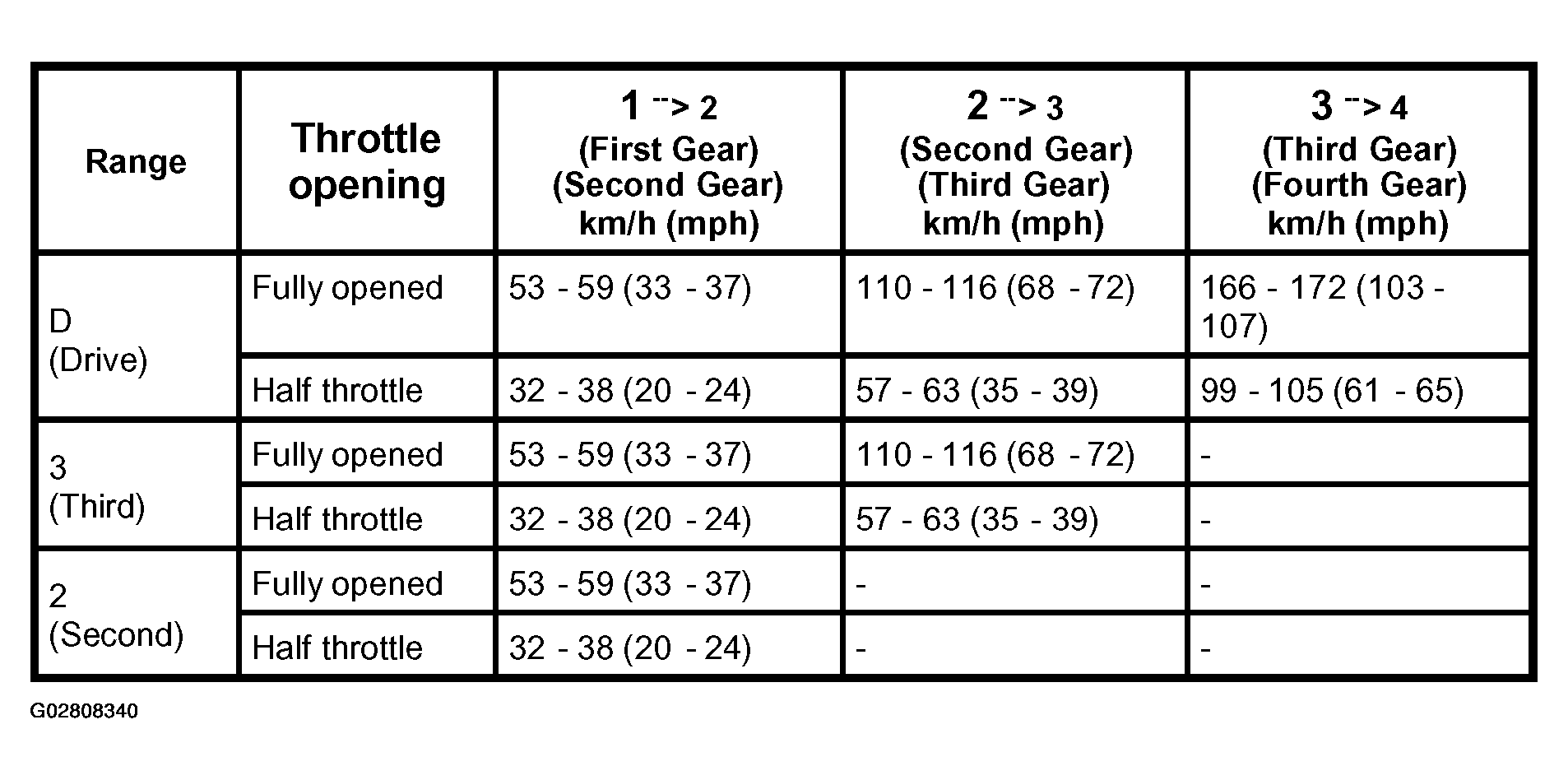

Fig 1: Upshift Speed Chart (Normal Mode)

G02808340

Courtesy of ISUZU MOTOR CO.
