Connector List

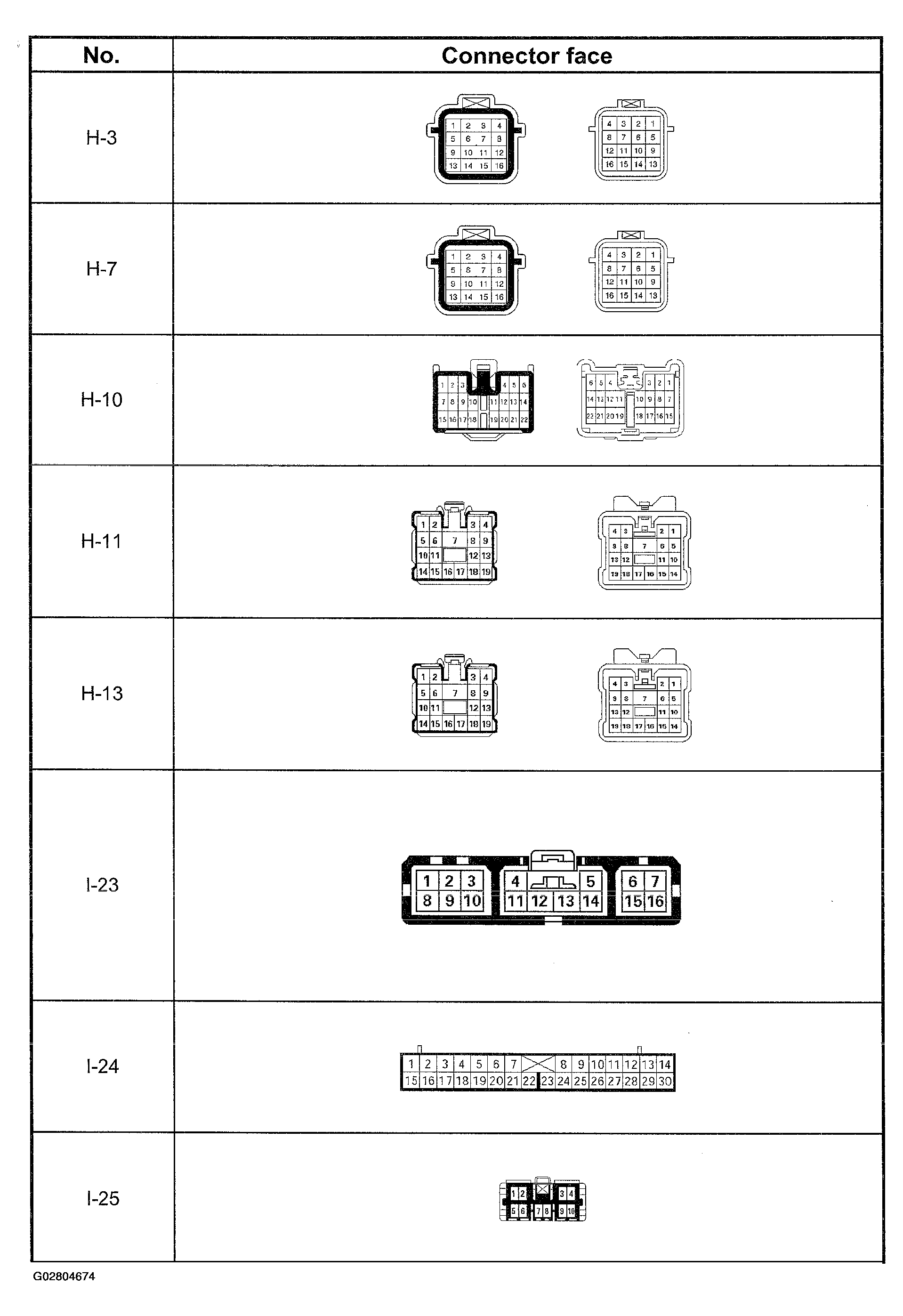

Fig 1: Identifying TOD System Harness Connector Views (1Of 4)
Courtesy of ISUZU MOTOR CO.

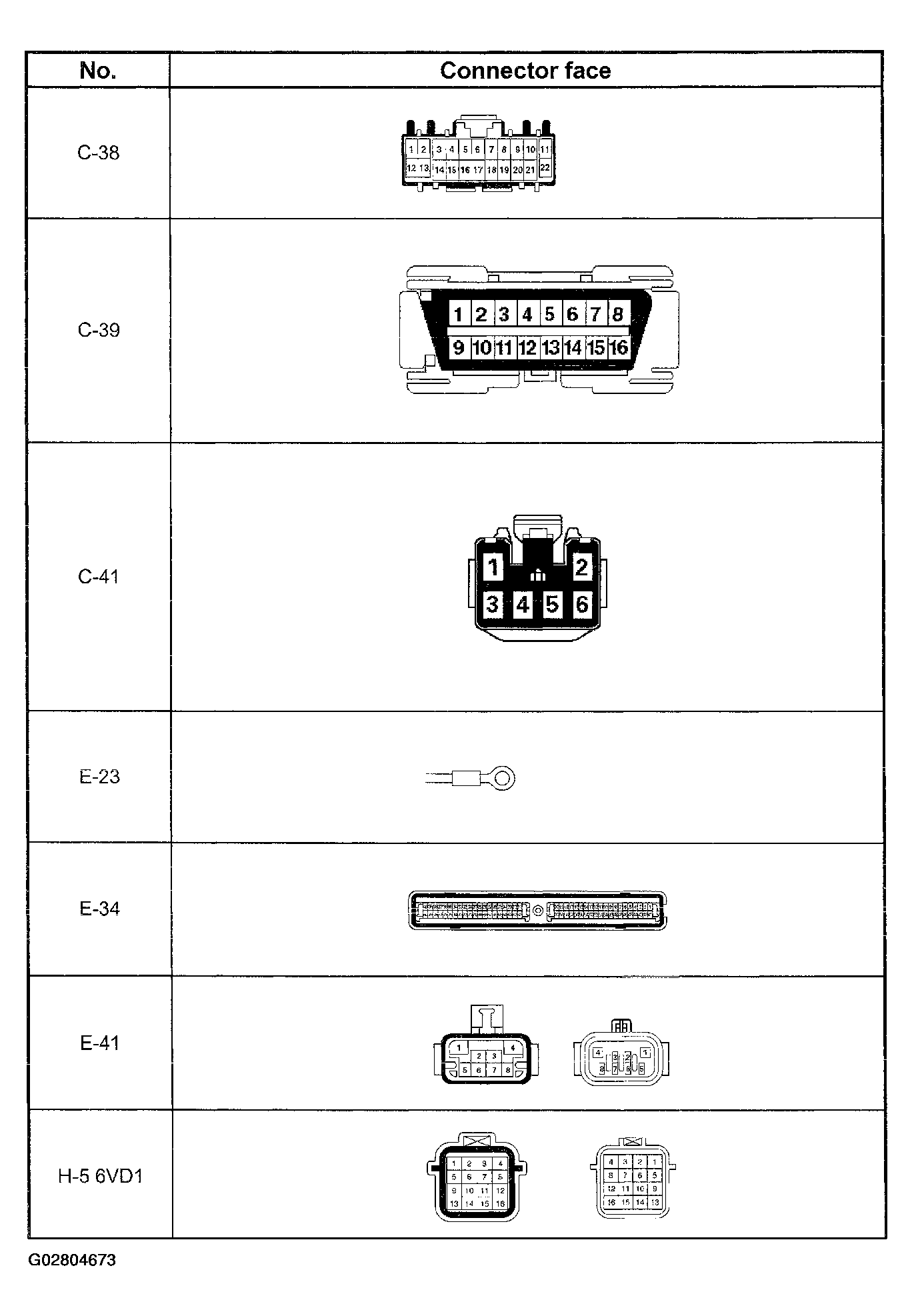

Fig 2: Identifying TOD System Harness Connector Views (2 Of 4)
Courtesy of ISUZU MOTOR CO.

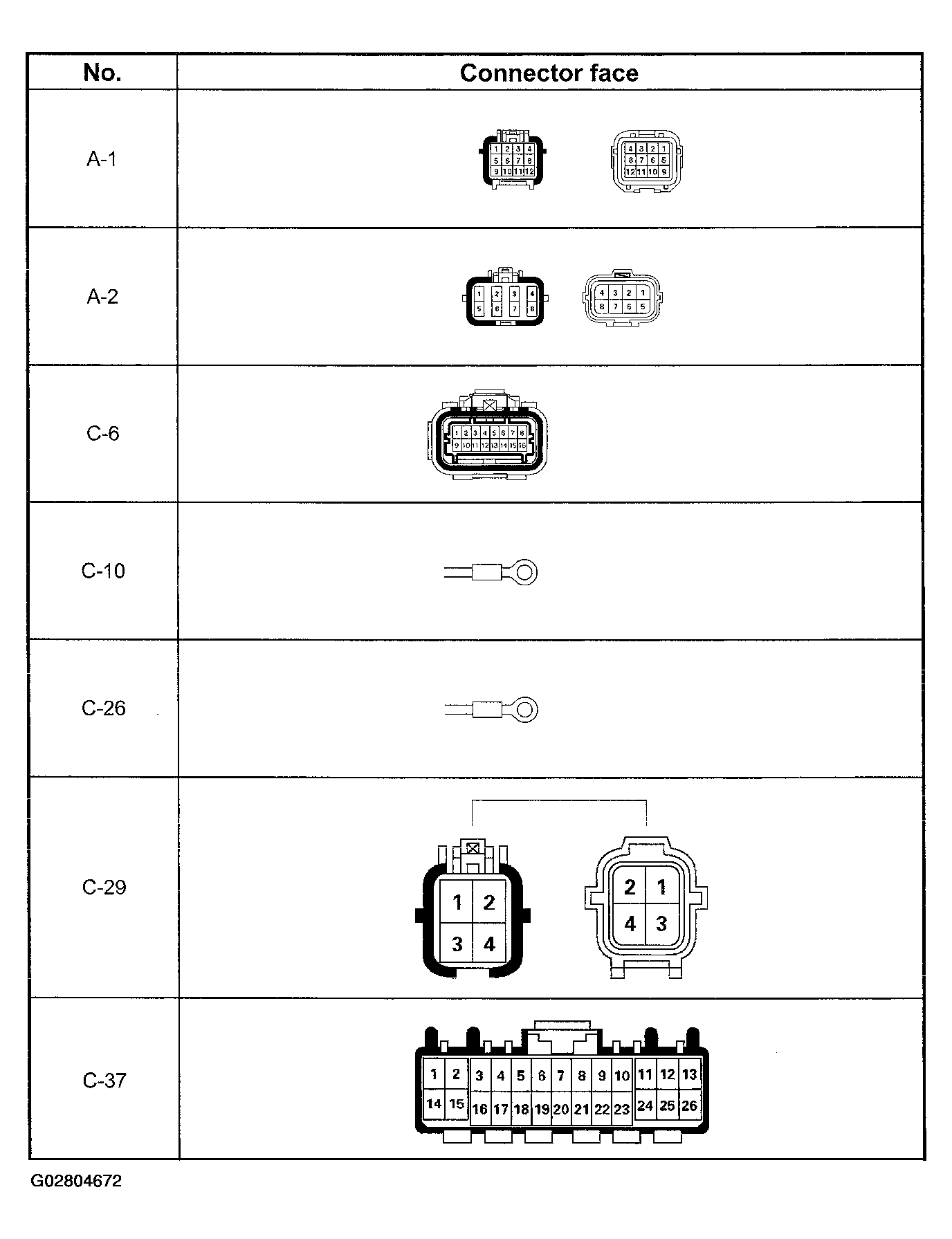

Fig 3: Identifying TOD System Harness Connector Views (3 Of 4)
Courtesy of ISUZU MOTOR CO.

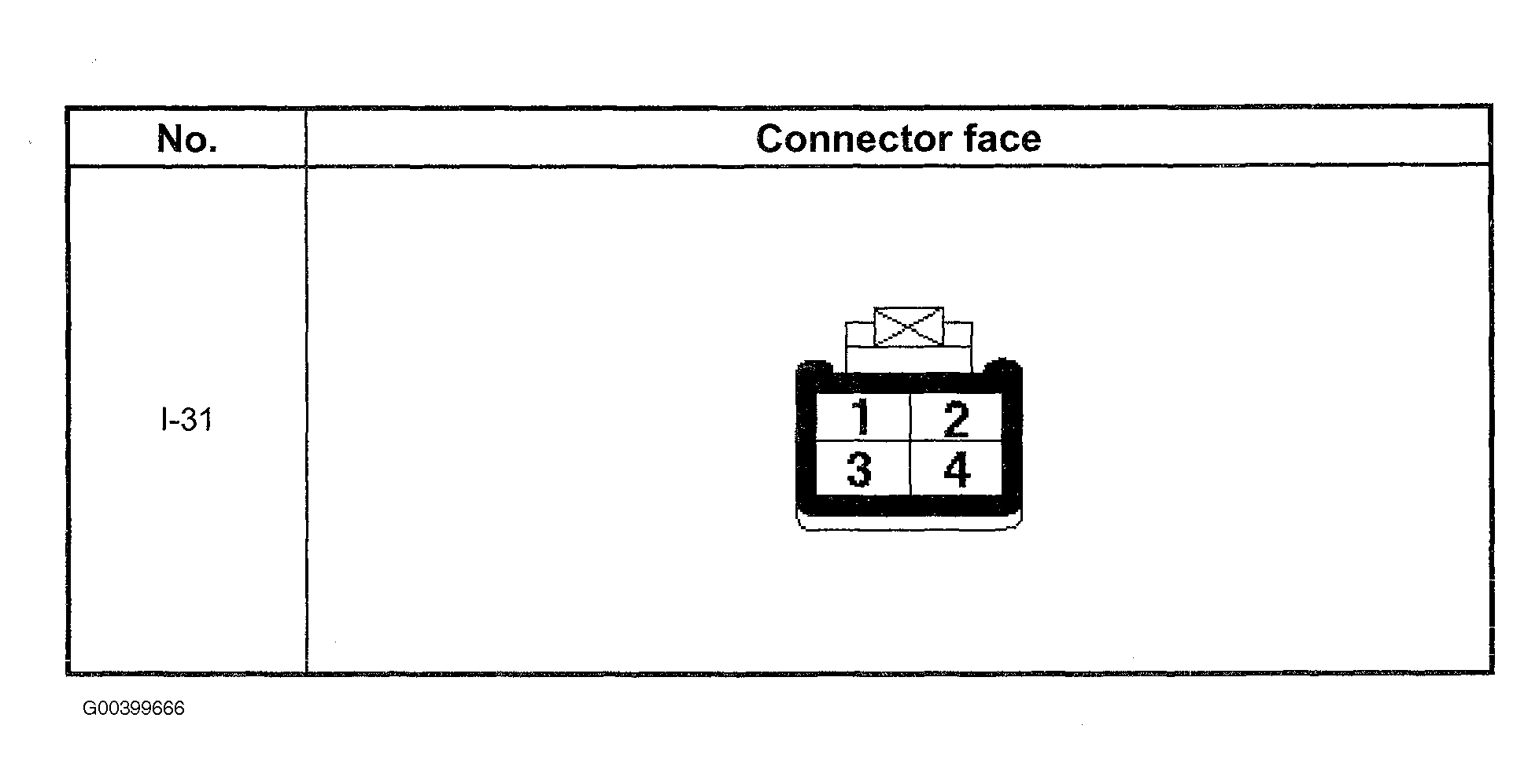

Fig 4: Identifying TOD System Harness Connector Views (4 Of 4)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
