Dash Fuse Box

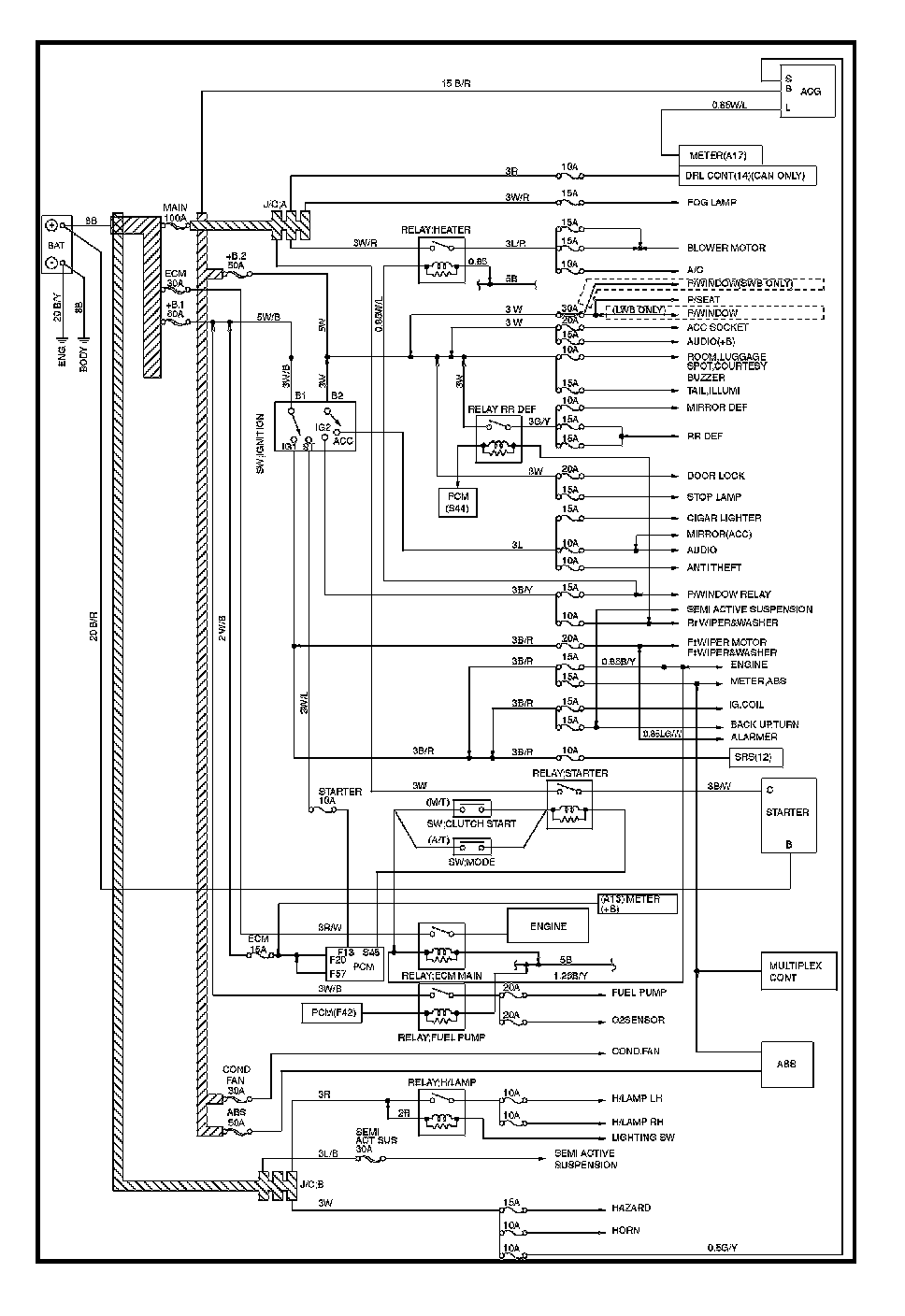

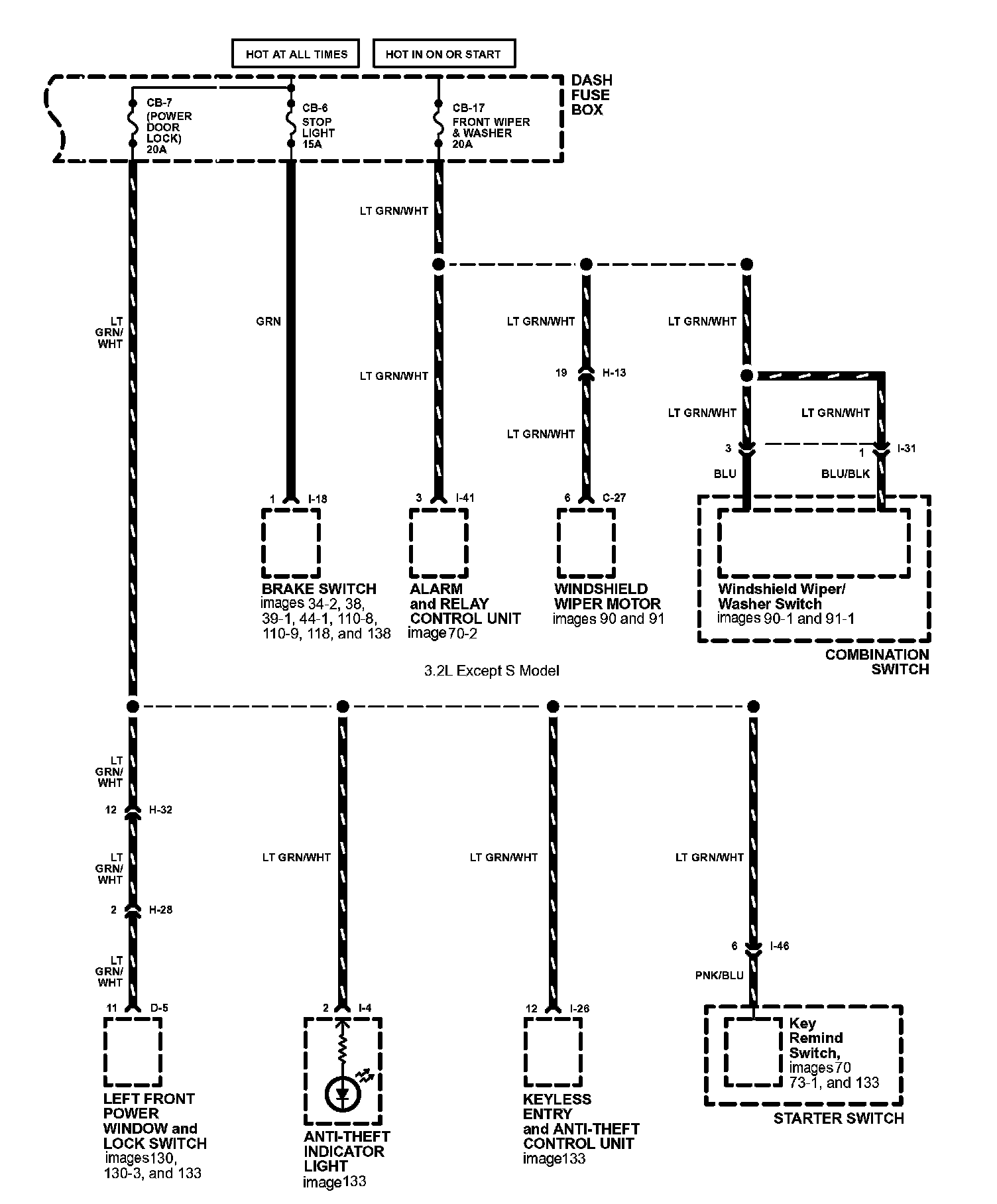

Fuse Block Circuit-2:

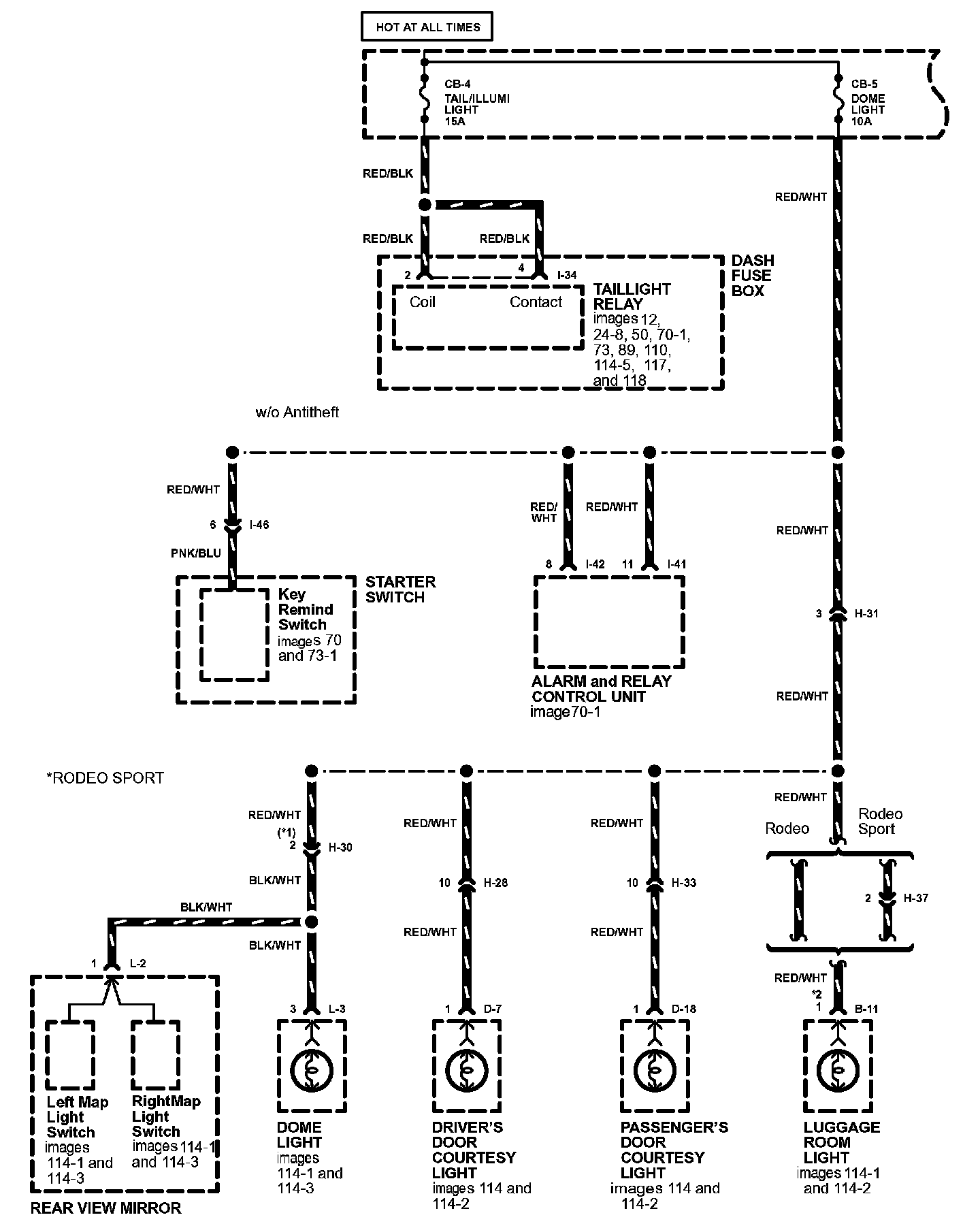

Dash Fuse Box Image 11:

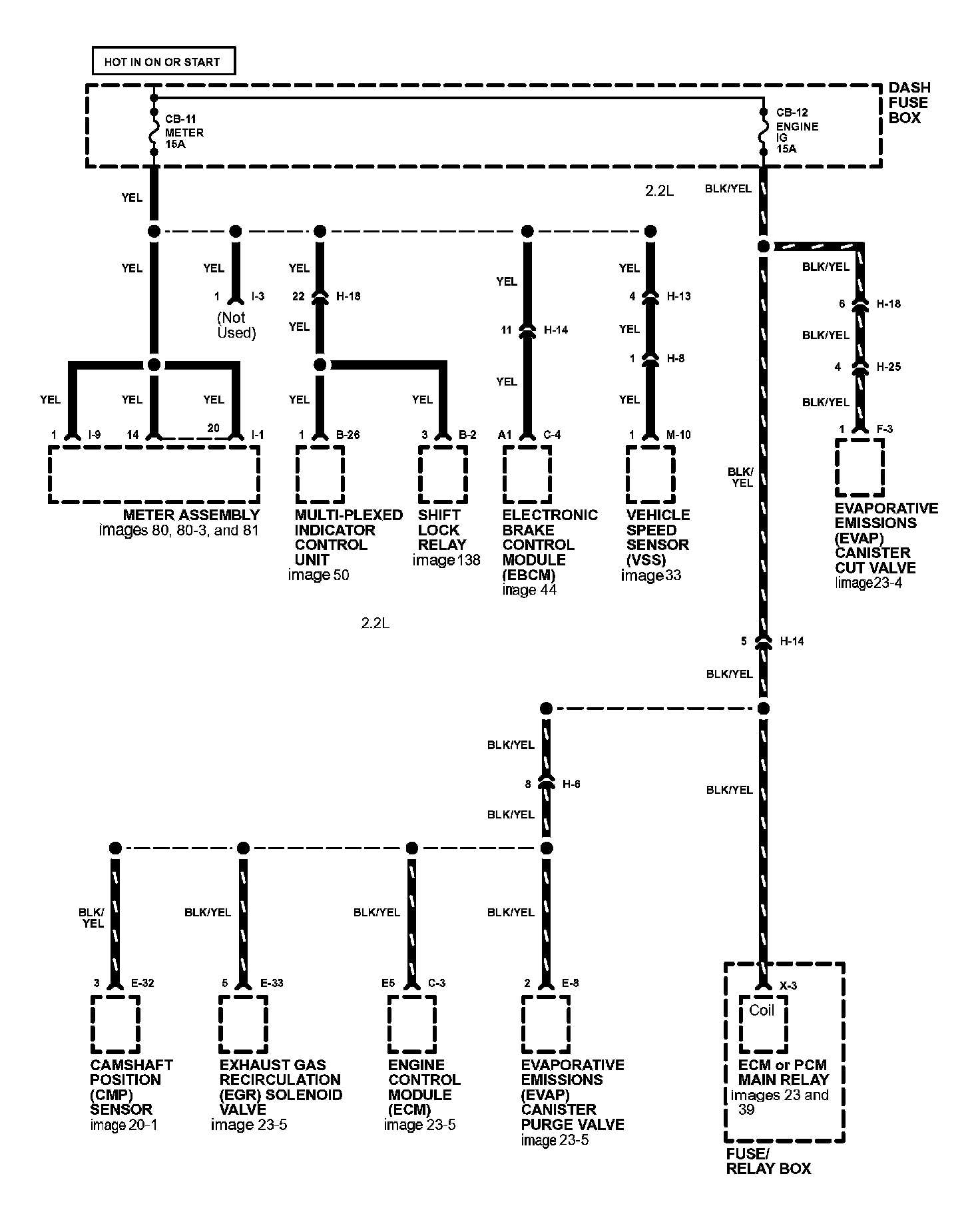

Dash Fuse Box Image 11-1:

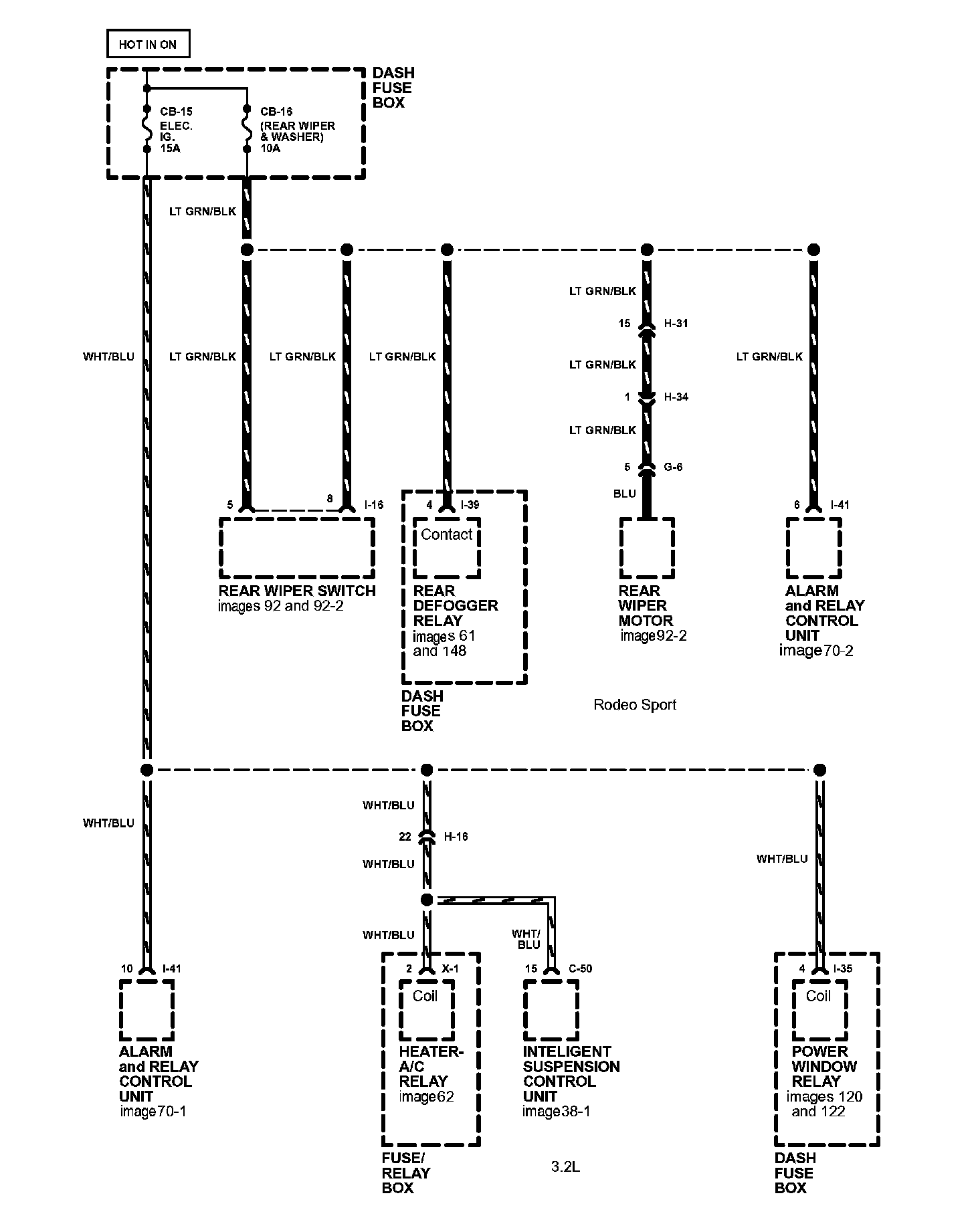

Dash Fuse Box Image 11-2:

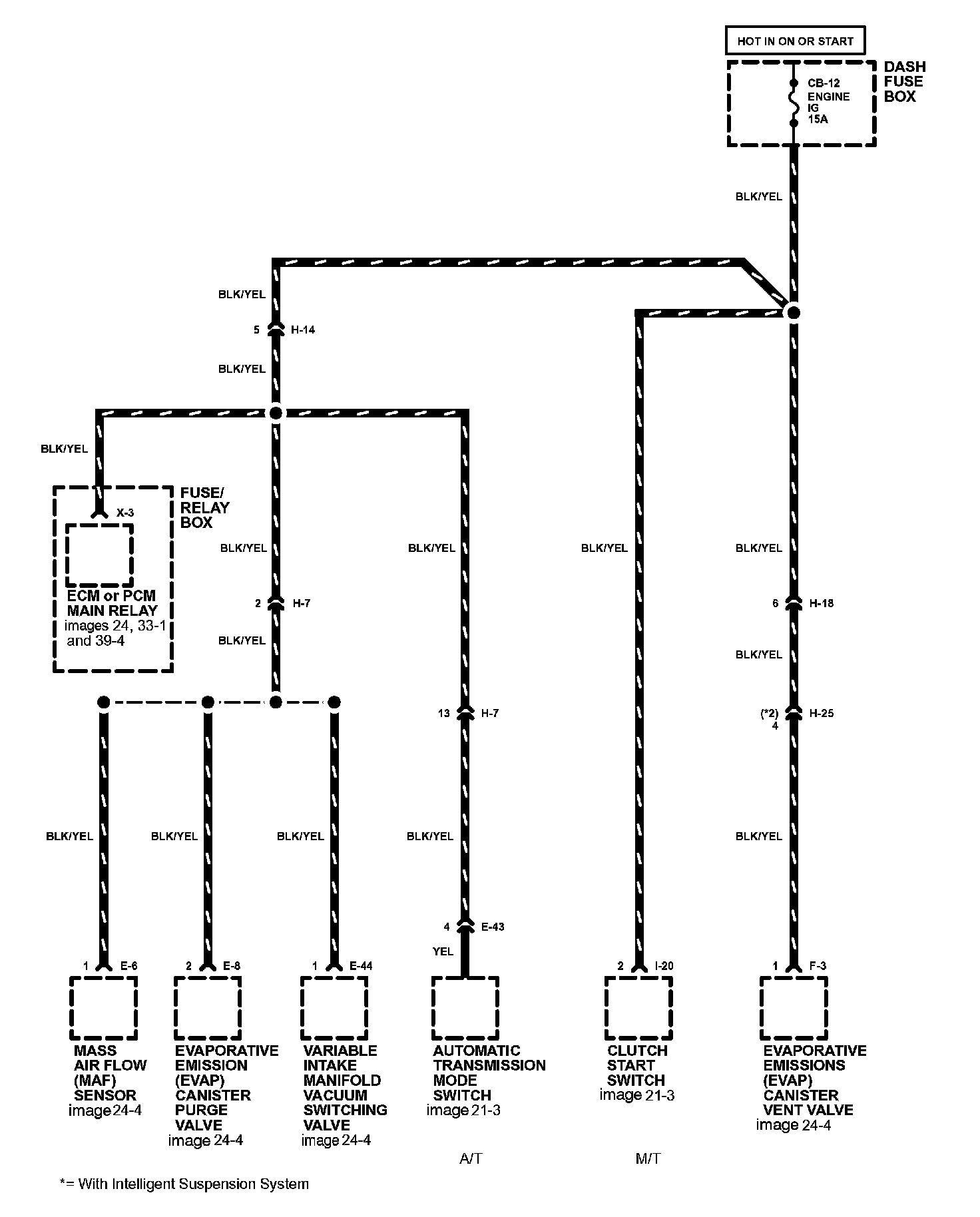

Dash Fuse Box Image 11-3:

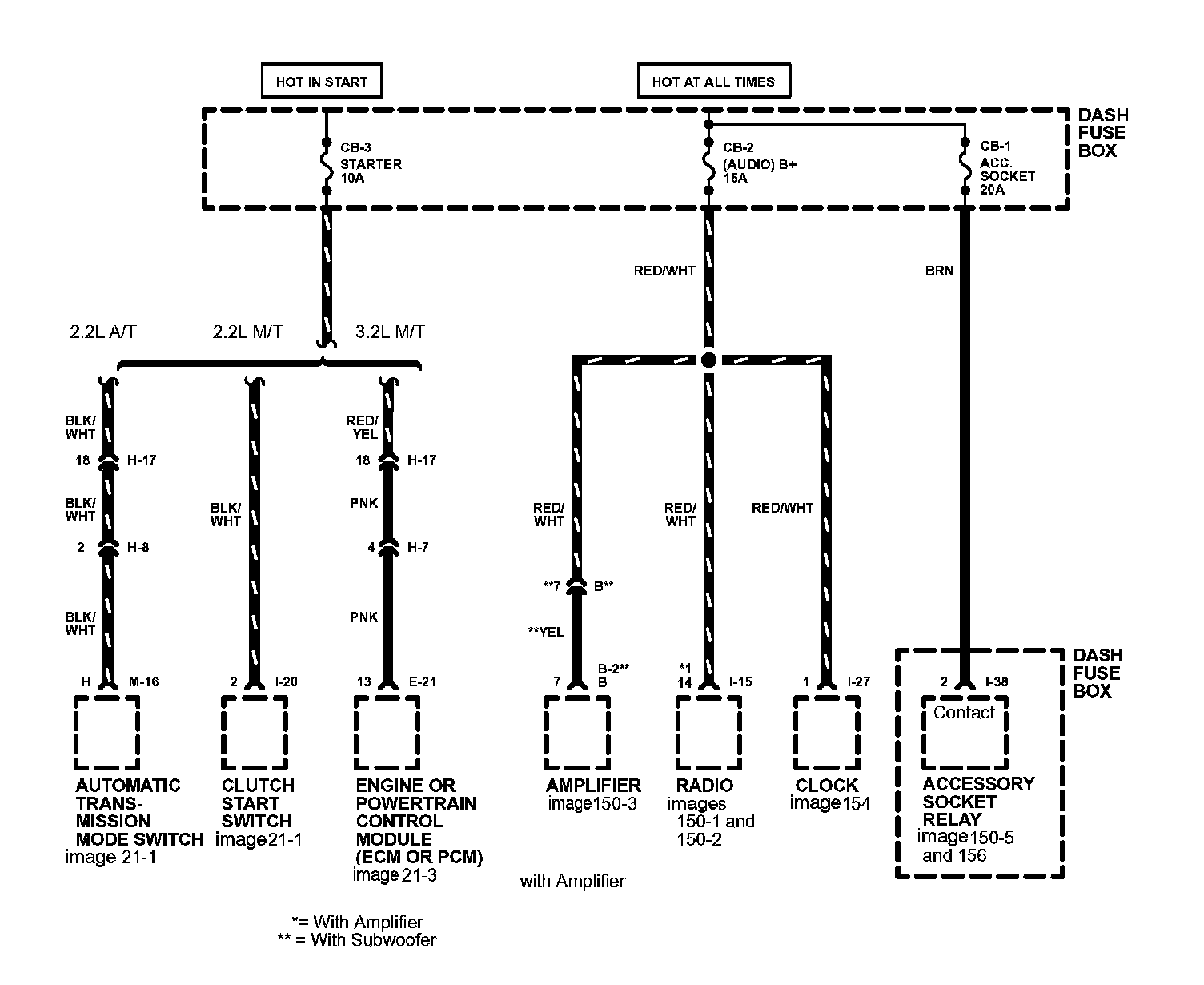

Dash Fuse Box Image 11-4:

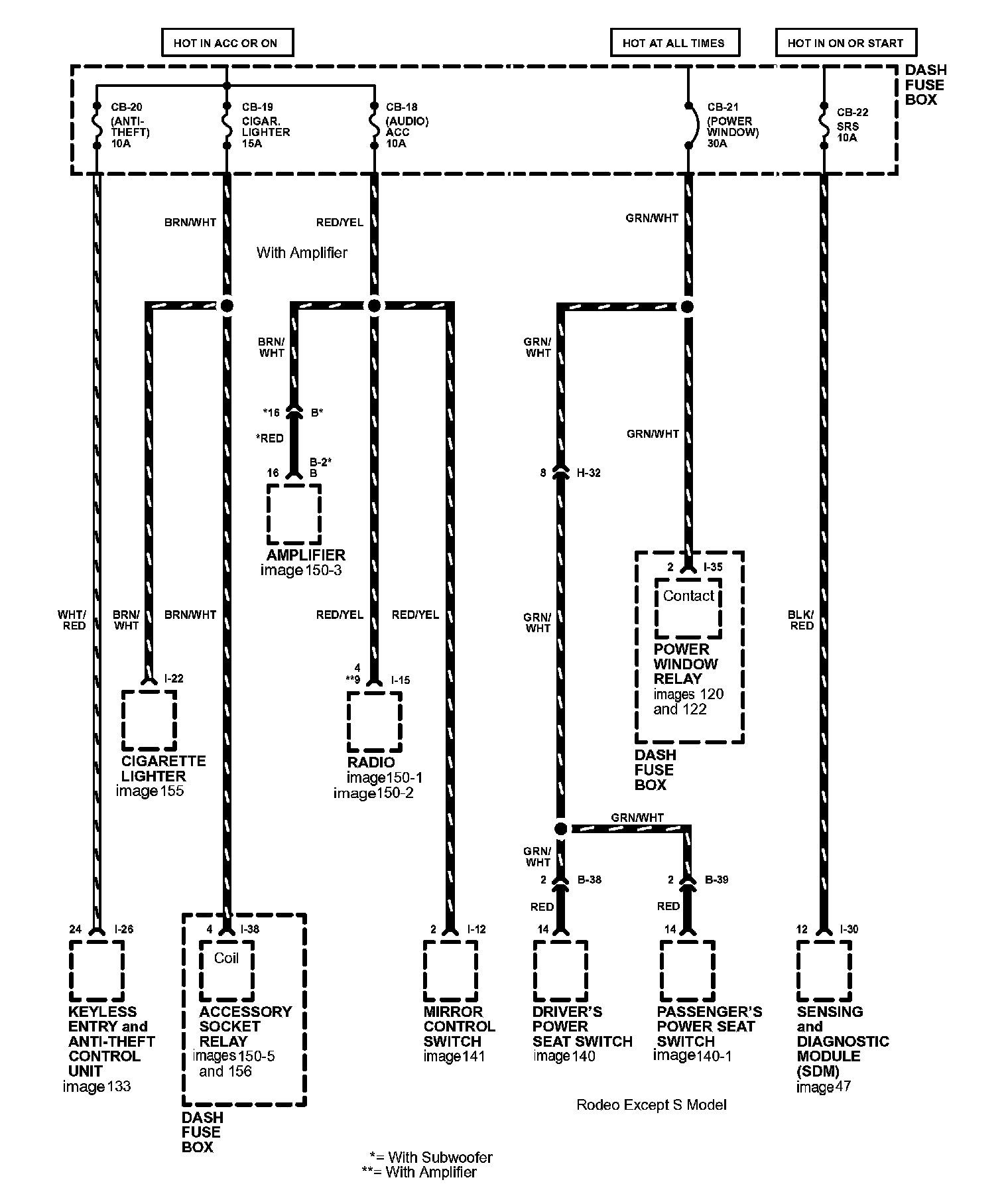

Dash Fuse Box Image 11-5:

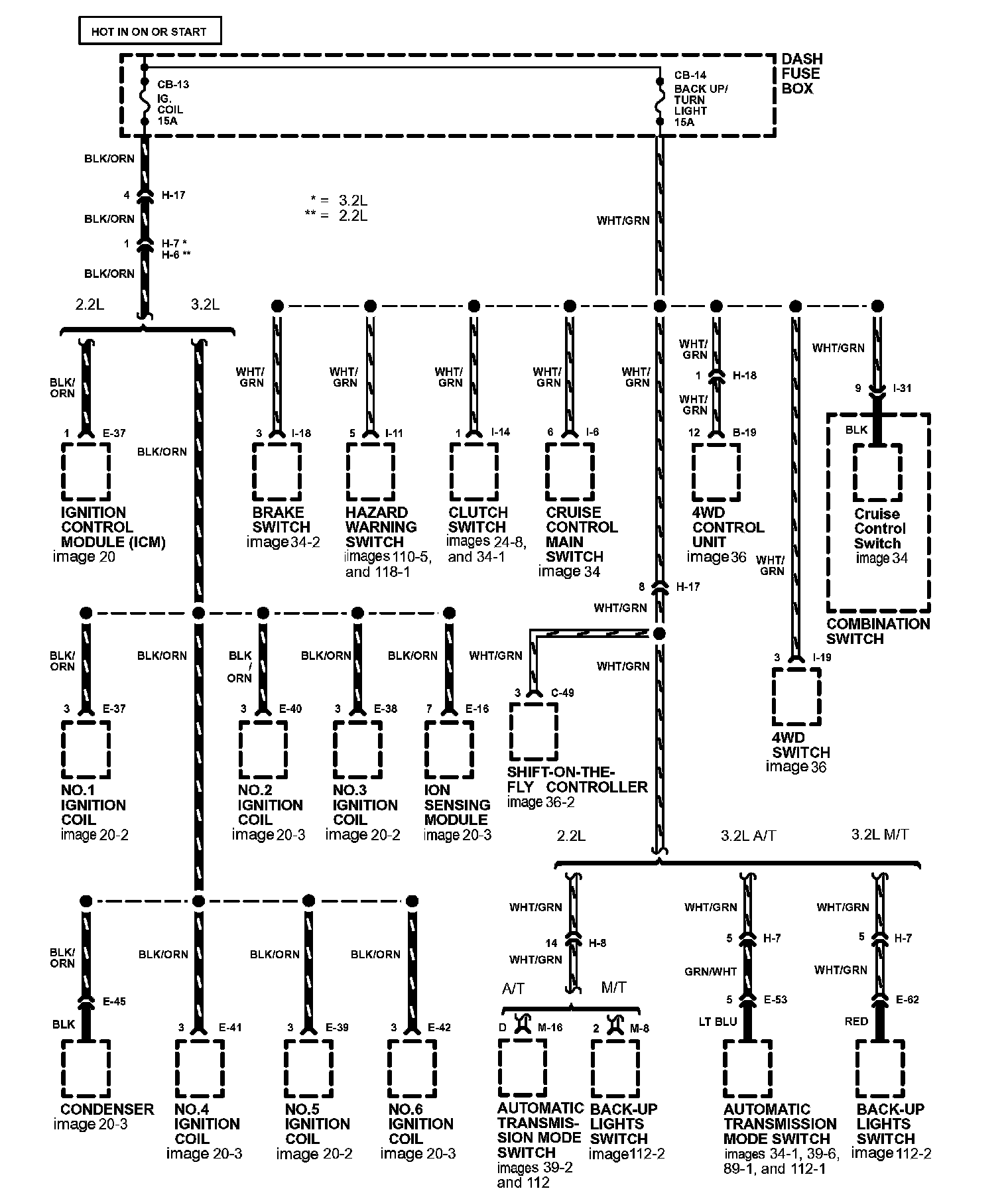

Dash Fuse Box Image 11-6:



Dash Fuse Box Image 11-7:
