Functions of Input / Output Components

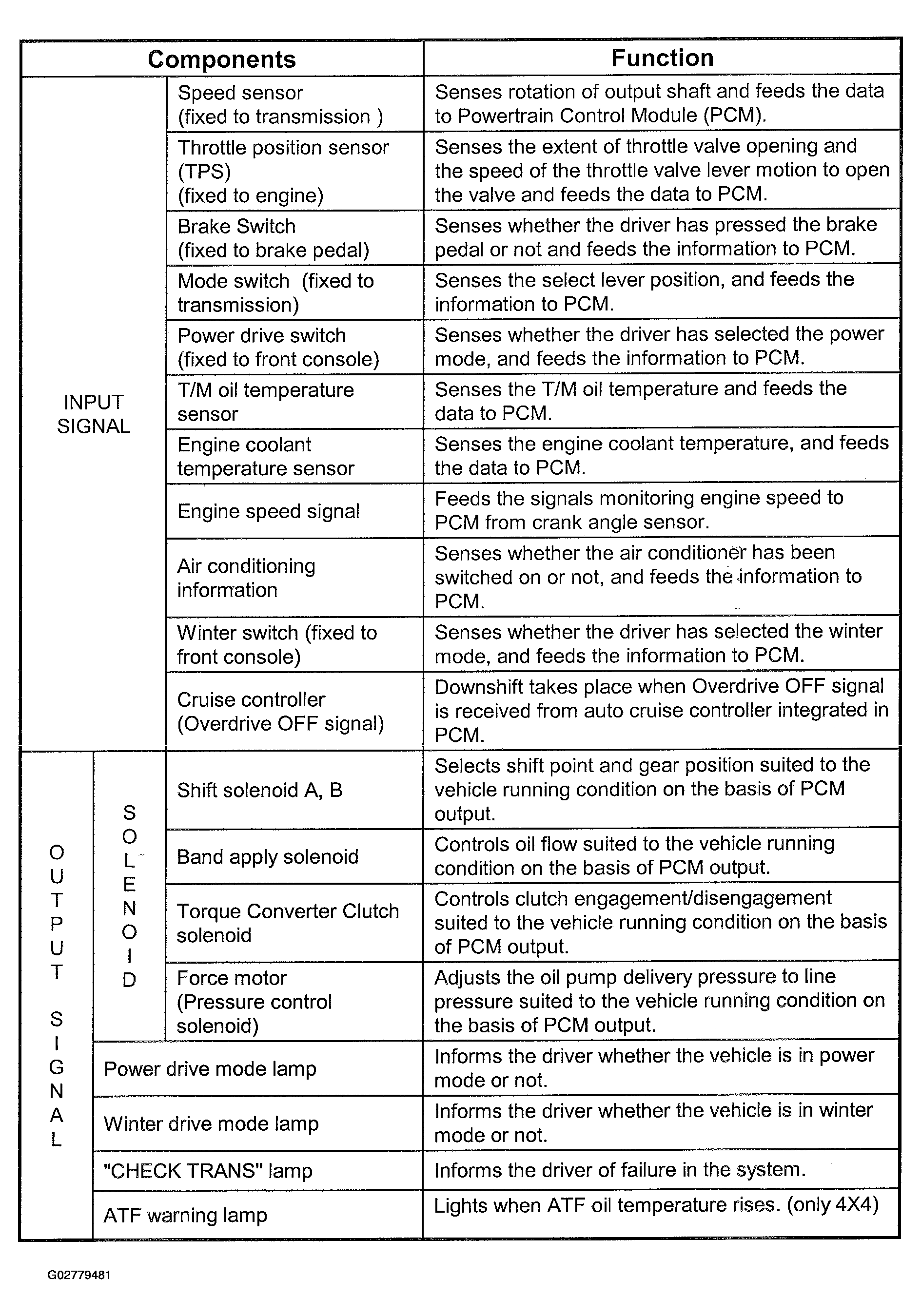

Fig 1: Functions Of Input/Output Components Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
