Inflator Module: Removal

WARNING: This page is about a different car, the 2002 Isuzu Rodeo Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel so that the vehicle's wheels are pointing straight ahead.
  2. Turn the ignition switch to "LOCK".
  3. Disconnect the battery "-" terminal cable, and wait at least 5 minutes.
  4. Disconnect the yellow 2-way SRS connector located under the steering column.
  5. Loosen the inflator module fixing bolt from behind the steering wheel assembly using a TORX® driver or equivalent until the inflator module can be released from steering assembly.

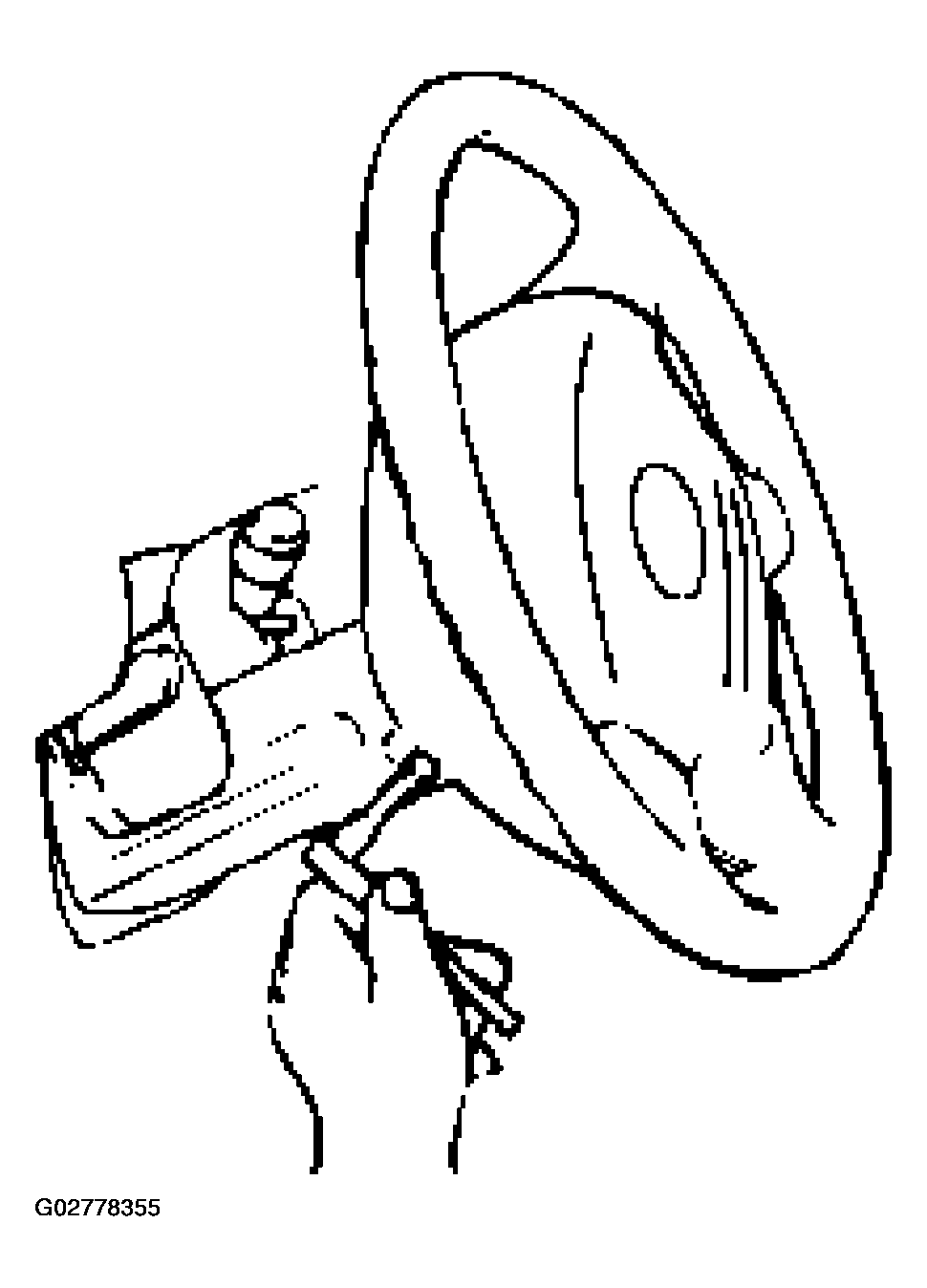

    Fig 1: Loosening The Inflator Module Fixing Bolt
    G02778355Courtesy of ISUZU MOTOR CO.
  6. Disconnect the yellow 2-way SRS connector located behind the inflator module.

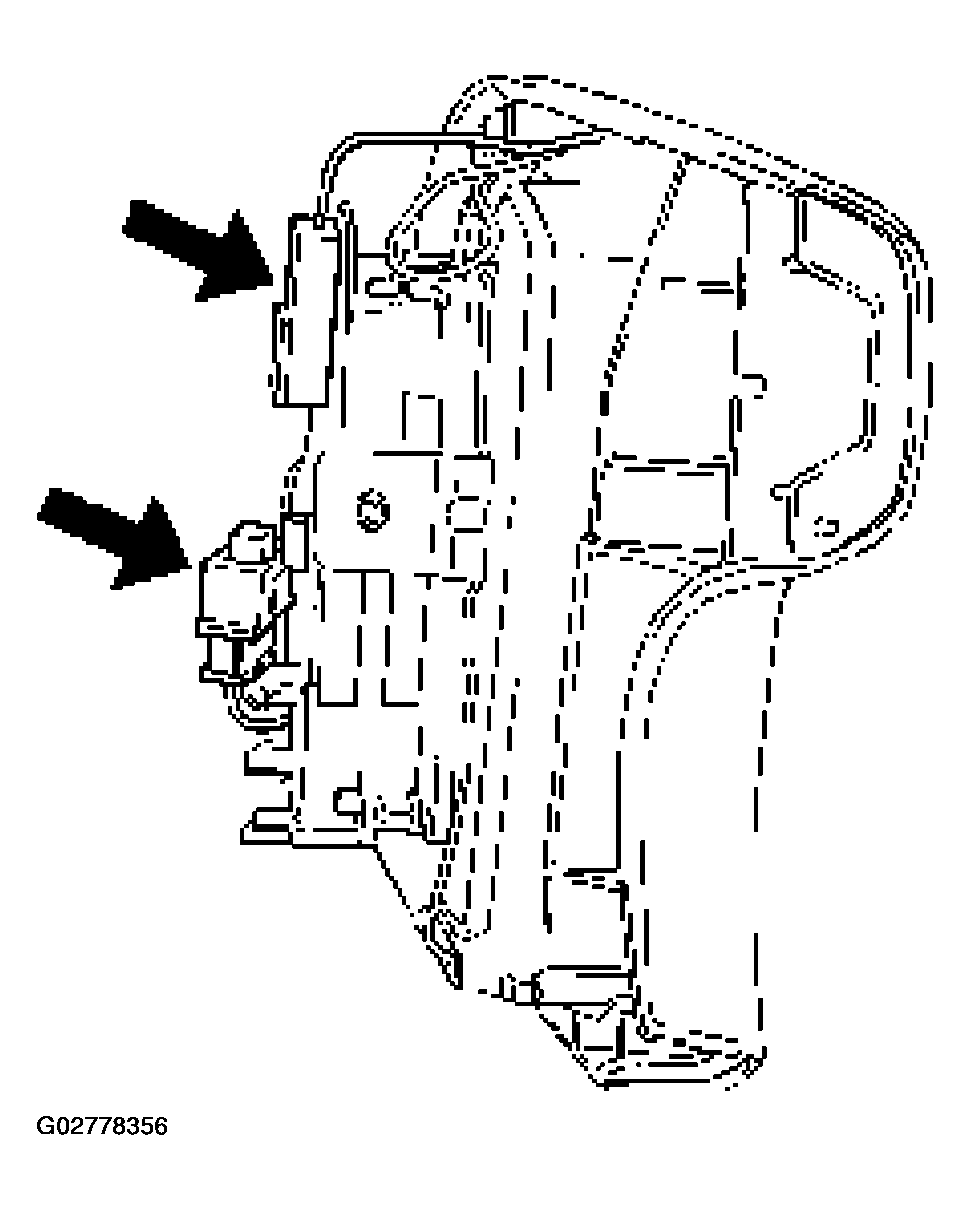

    Fig 2: Disconnecting SRS Connector
    G02778356Courtesy of ISUZU MOTOR CO.
  7. Remove inflator module.
