Torque Specification

WARNING: This page is about a different car, the 2002 Isuzu Rodeo Sport. However, it is still accessible from the selected car via links, so may be relevant.

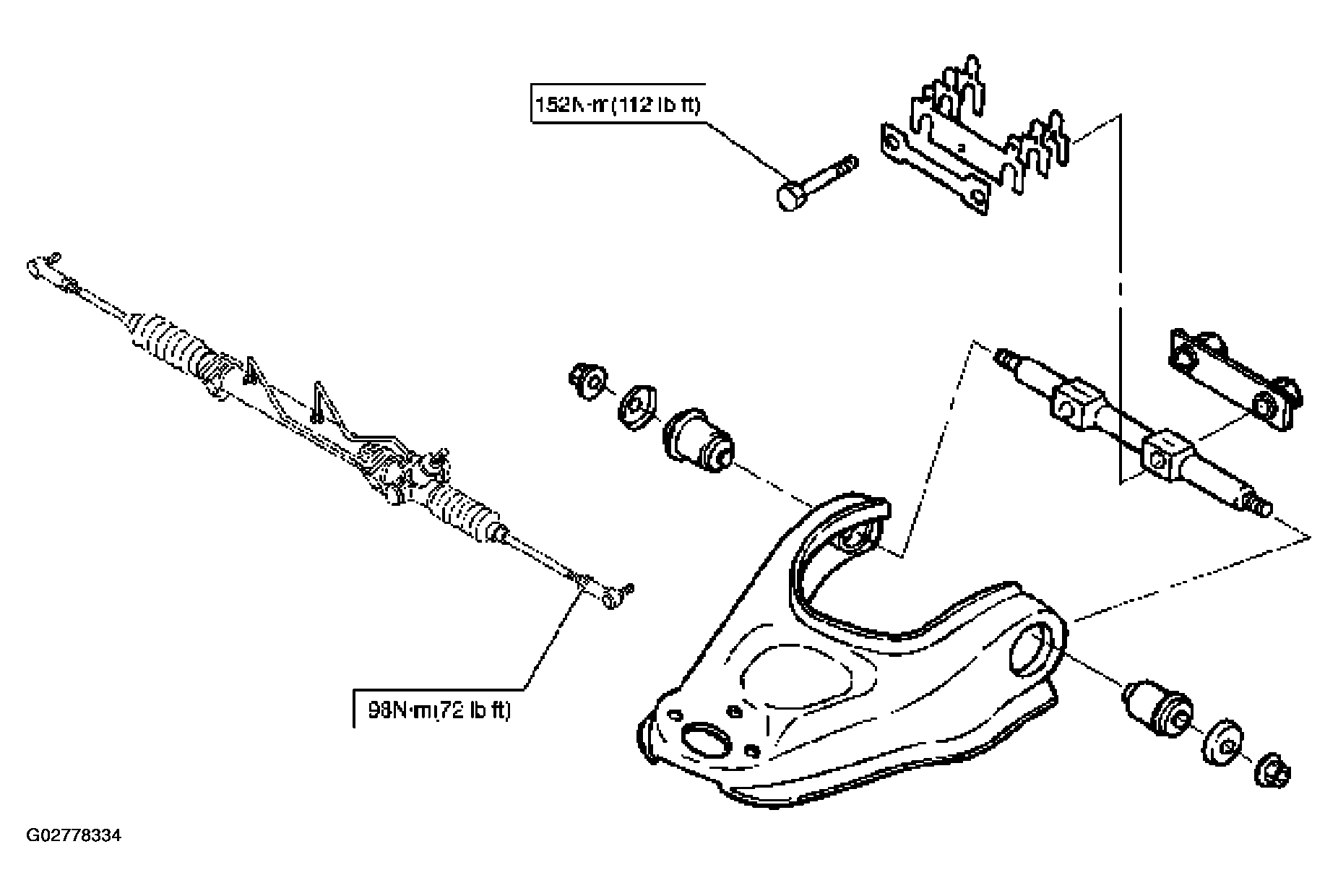

Fig 1: Torque Specification Chart
G02778334Courtesy of ISUZU MOTOR CO.
