Power Steering Unit Disassembled View

WARNING: This page is about a different car, the 2002 Isuzu Rodeo Sport. However, it is still accessible from the selected car via links, so may be relevant.

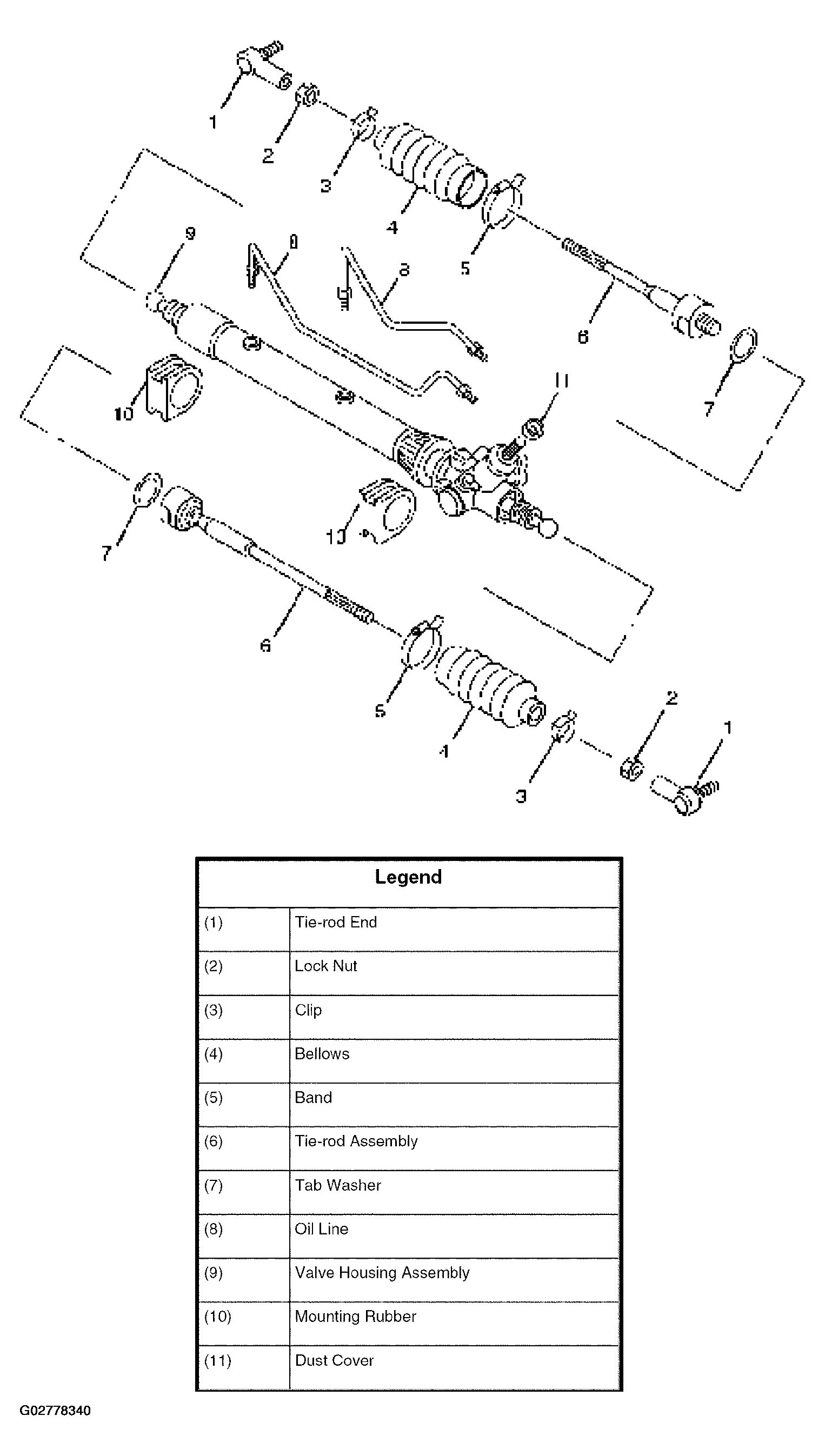

Fig 1: Exploded View Of Power Steering Unit
G02778340Courtesy of ISUZU MOTOR CO.
