Lower Control Arm: Installation

  1. Install rear bushing (5) by using installer J-36834.
    Fig 1: Installing Rear Bushing Using Installer
    G02778428Courtesy of ISUZU MOTOR CO.
  2. Install front bushing by using installer J-36833.
    Fig 2: Installing Front Bushing Using Installer
    G02778429Courtesy of ISUZU MOTOR CO.
  3. Install lower ball joint bolt.
  4. Install torsion bar arm bolt.
  5. Install lower control arm.
  6. Install rear bolt.
  7. Install front bolt.
  8. Install lower ball joint and tighten it to the specified torque.
    1. Torque:  116 N.m (85 lb ft)
  9. Install shock absorber and tighten it to the specified torque.
    1. Torque:  93 N.m (69 lb ft)
  10. Install stabilizer link and tighten it to the specified torque.
    1. Torque:  50 N.m (37 lb ft)
  11. Install torsion bar arm bracket and tighten it to the specified torque.
    1. Torque:  116 N.m (85 lb ft)
  12. Install Torsion bar, Refer to TORSION BAR  .
  13. Install rear nut and tighten lower link nut finger-tight.
    NOTE: Torque lower control arm nut after adjusting buffer clearance.
    • Buffer clearance:  22 mm (0.87 in)
    • Torque:  235 N.m (174 lb ft)
    Fig 3: Installing Rear Nut
    G02778430Courtesy of ISUZU MOTOR CO.
  14. Install front nut then tighten lower link nut finger-tight.
    NOTE: Torque lower control arm nut after adjusting buffer clearance.
    • Buffer clearance:  22 mm (0.87 in)
    • Torque:  186 N.m (137 lb ft)
    NOTE: Adjust the trim height. Refer to FRONT END ALIGNMENT INSPECTION AND ADJUSTMENT .

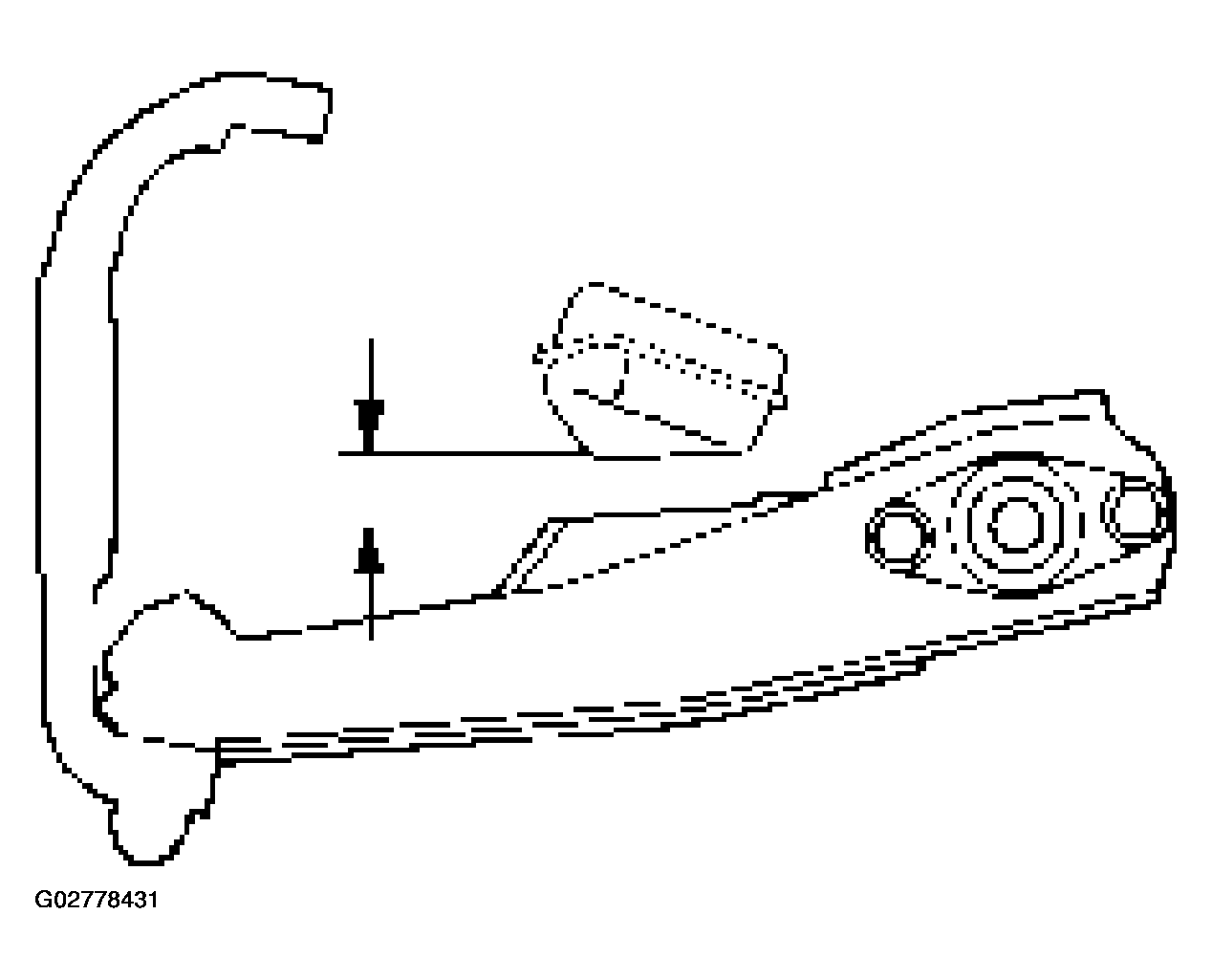

    Fig 4: Installing Front Nut
    G02778431Courtesy of ISUZU MOTOR CO.
