Connector Pin Assignment

Transfer control unit pin assignment

Fig 1: Identifying Transfer Control Connector Pin Assignment
G02790013Courtesy of ISUZU MOTOR CO.

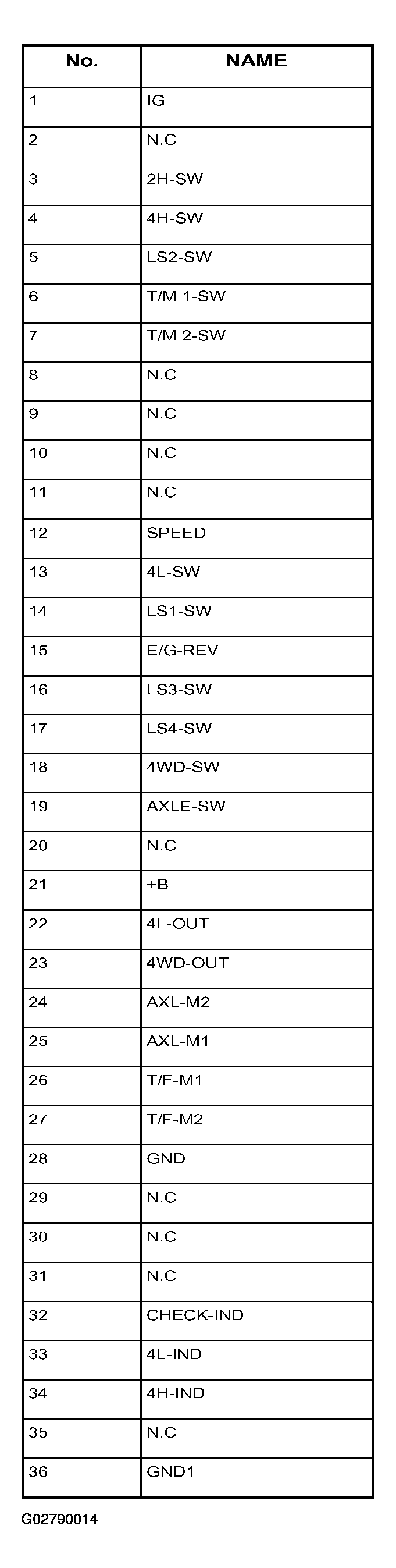

Fig 2: Connector Pin Assignment Chart
G02790014Courtesy of ISUZU MOTOR CO.
