Suspension Control Module

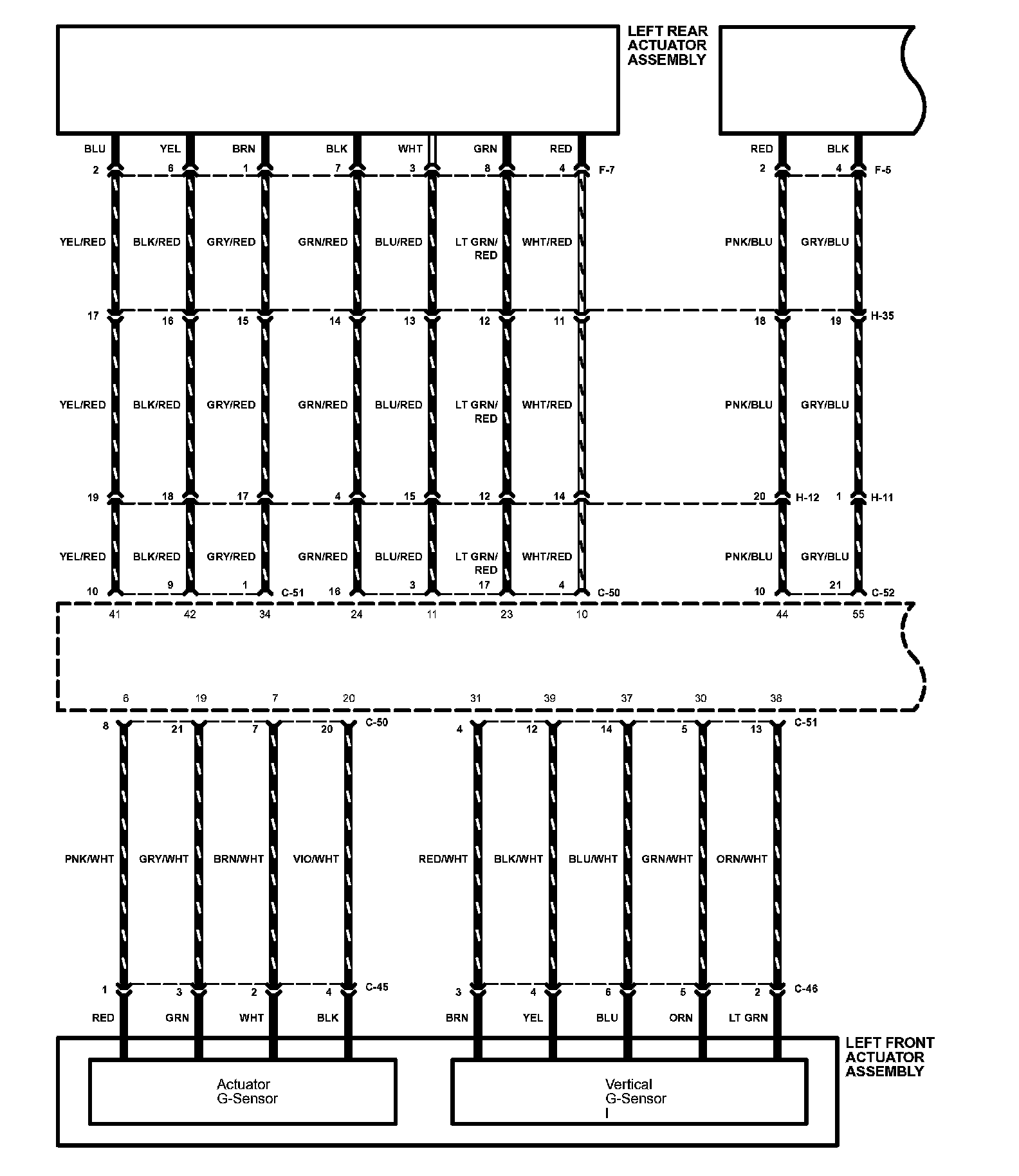

Intelligent Suspension System Image 38-2:

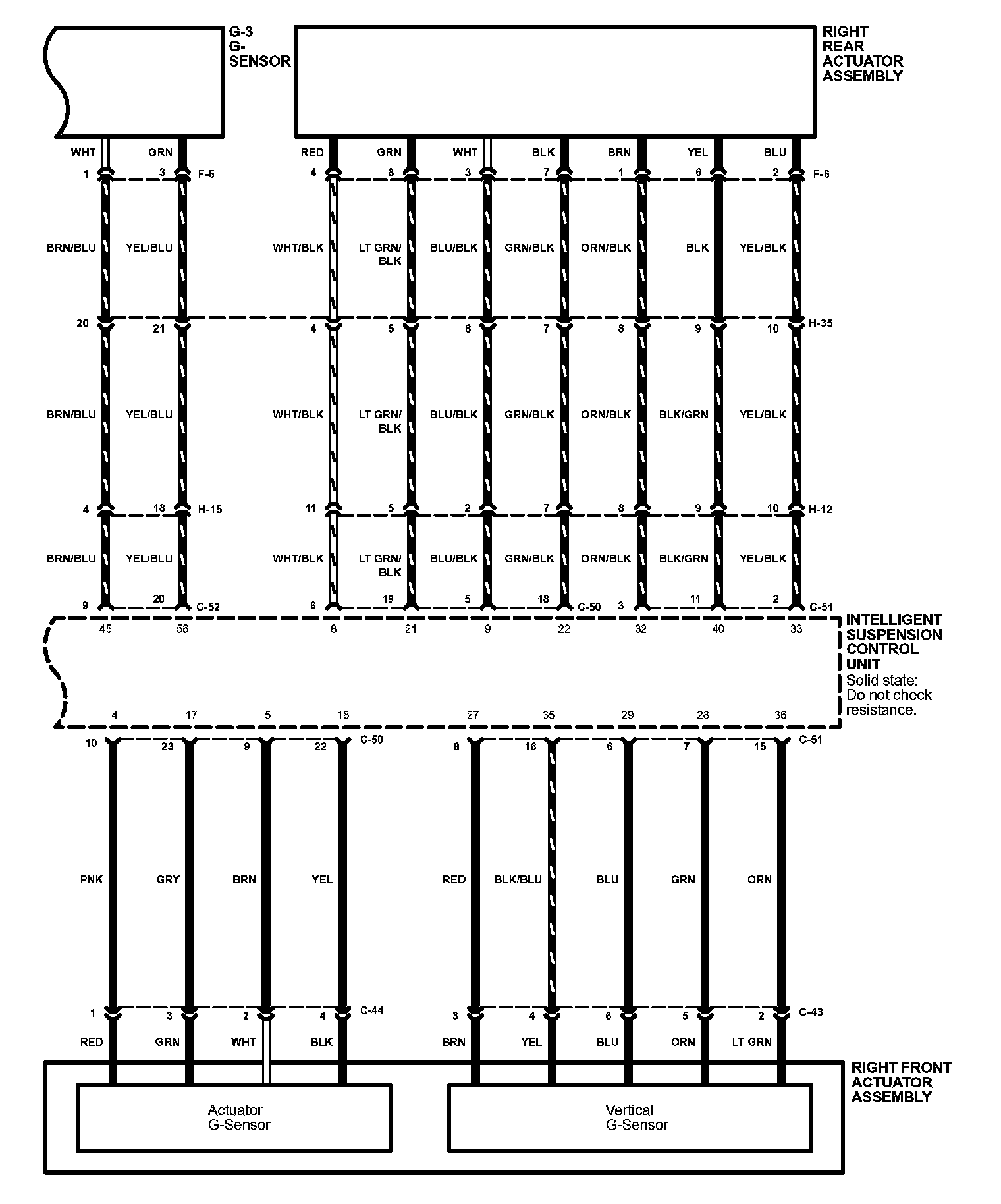

Intelligent Suspension System Image 38-3:
