Steering

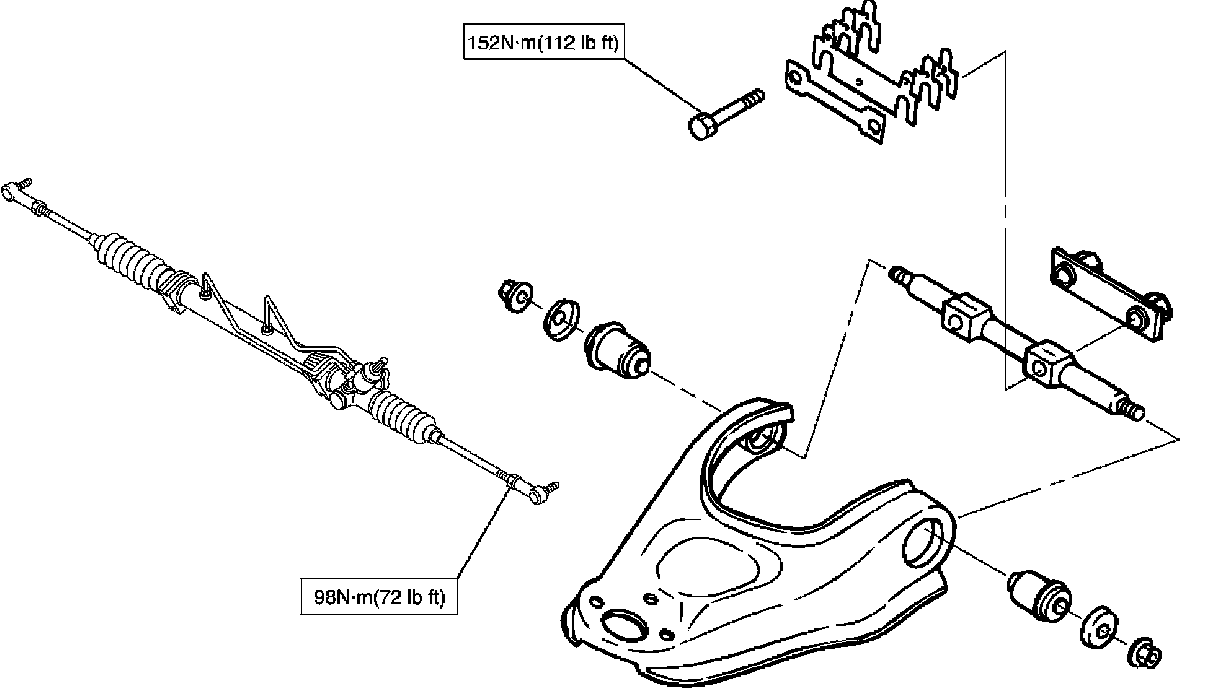

STEERING





General Specification





Torque Specification

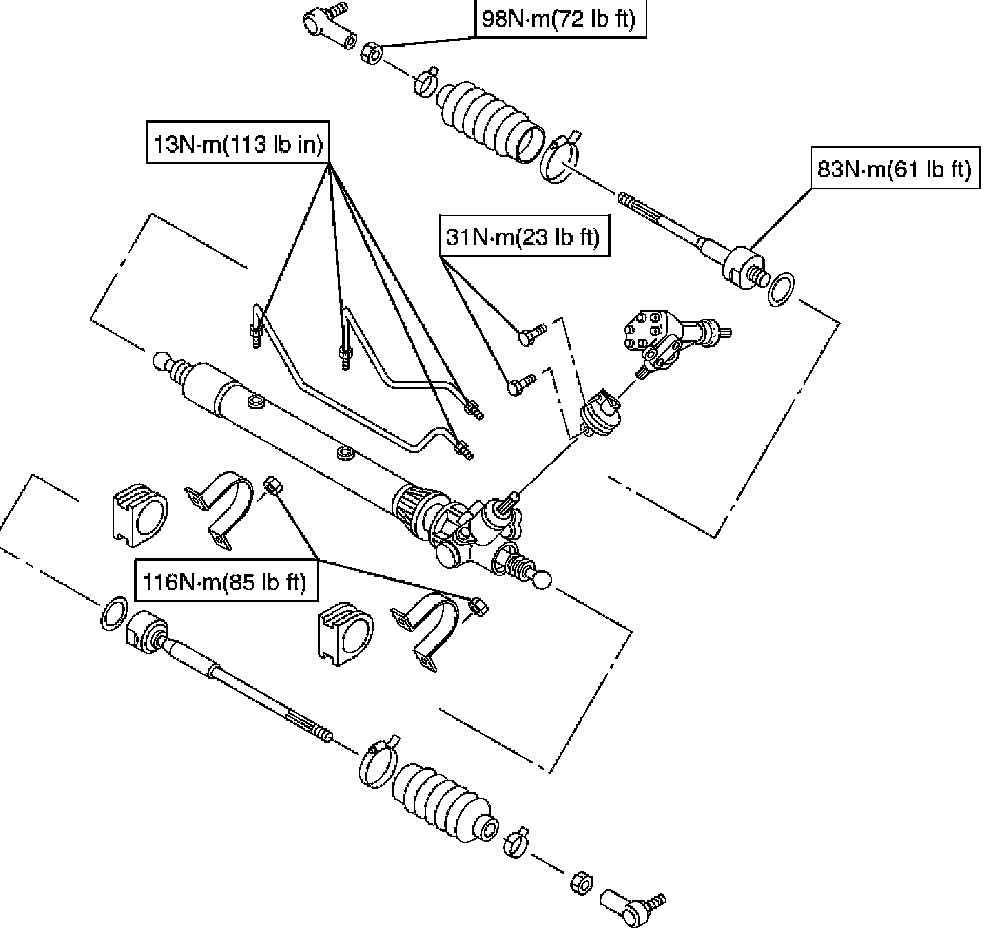

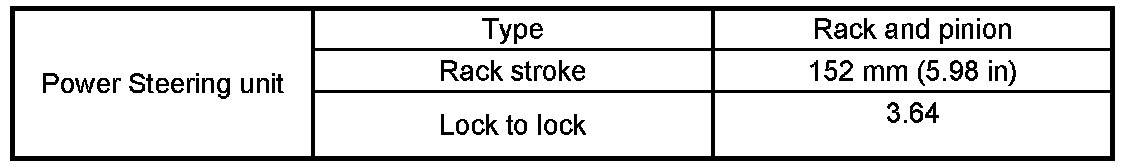

POWER STEERING





General Specifications





Torque Specifications

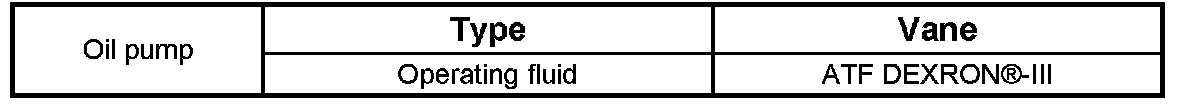

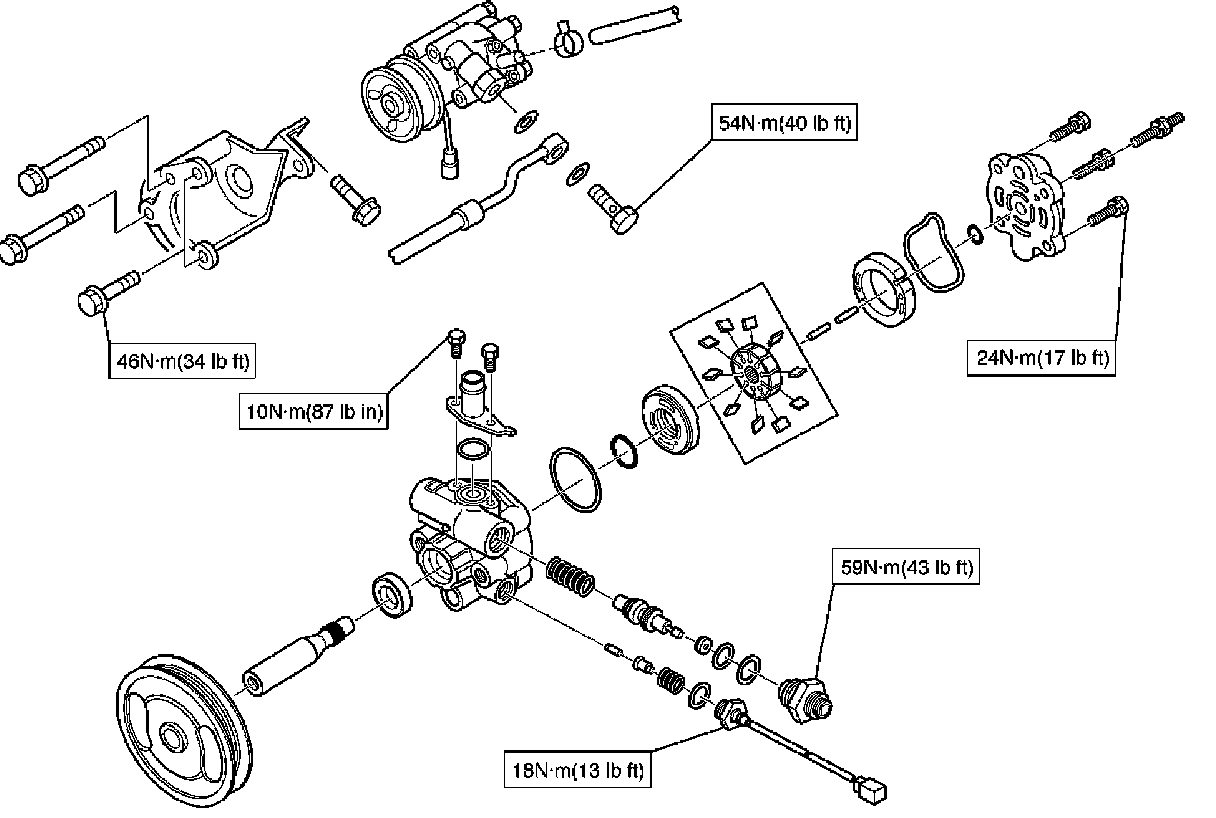

POWER STEERING PUMP





General Specifications





Torque Specifications

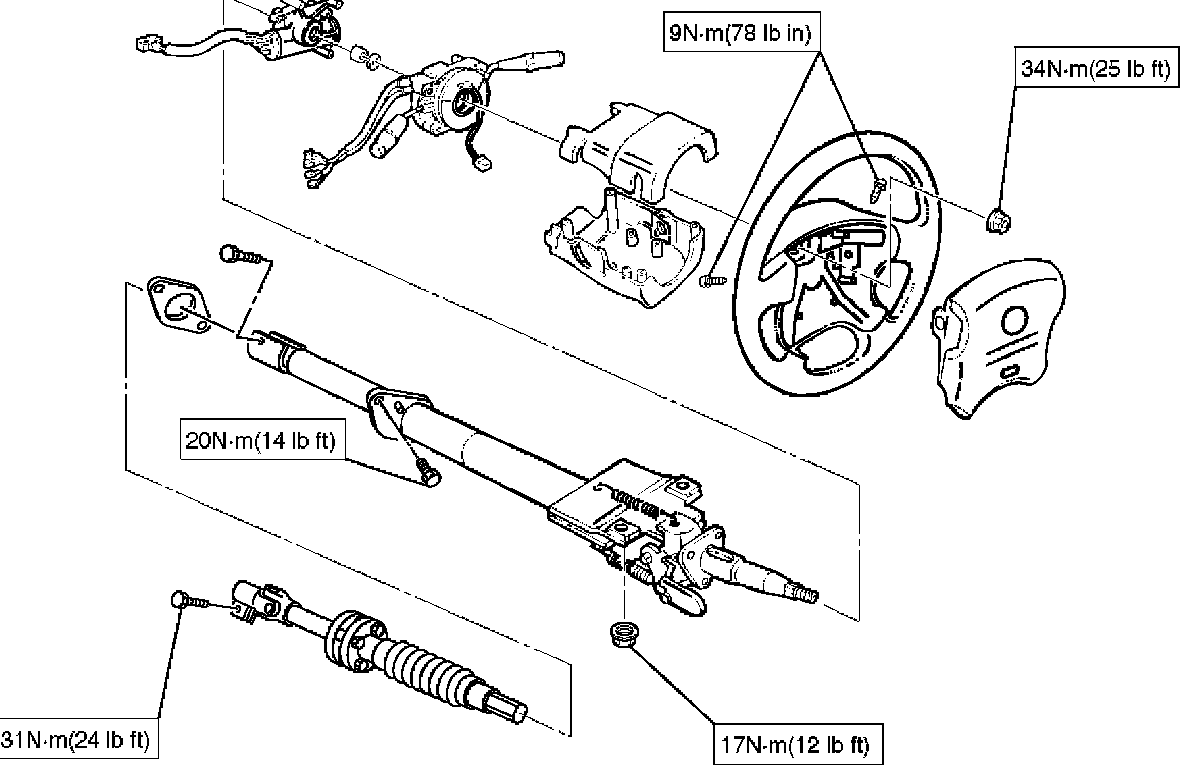

STEERING COLUMN





Torque Specifications
