System Diagram

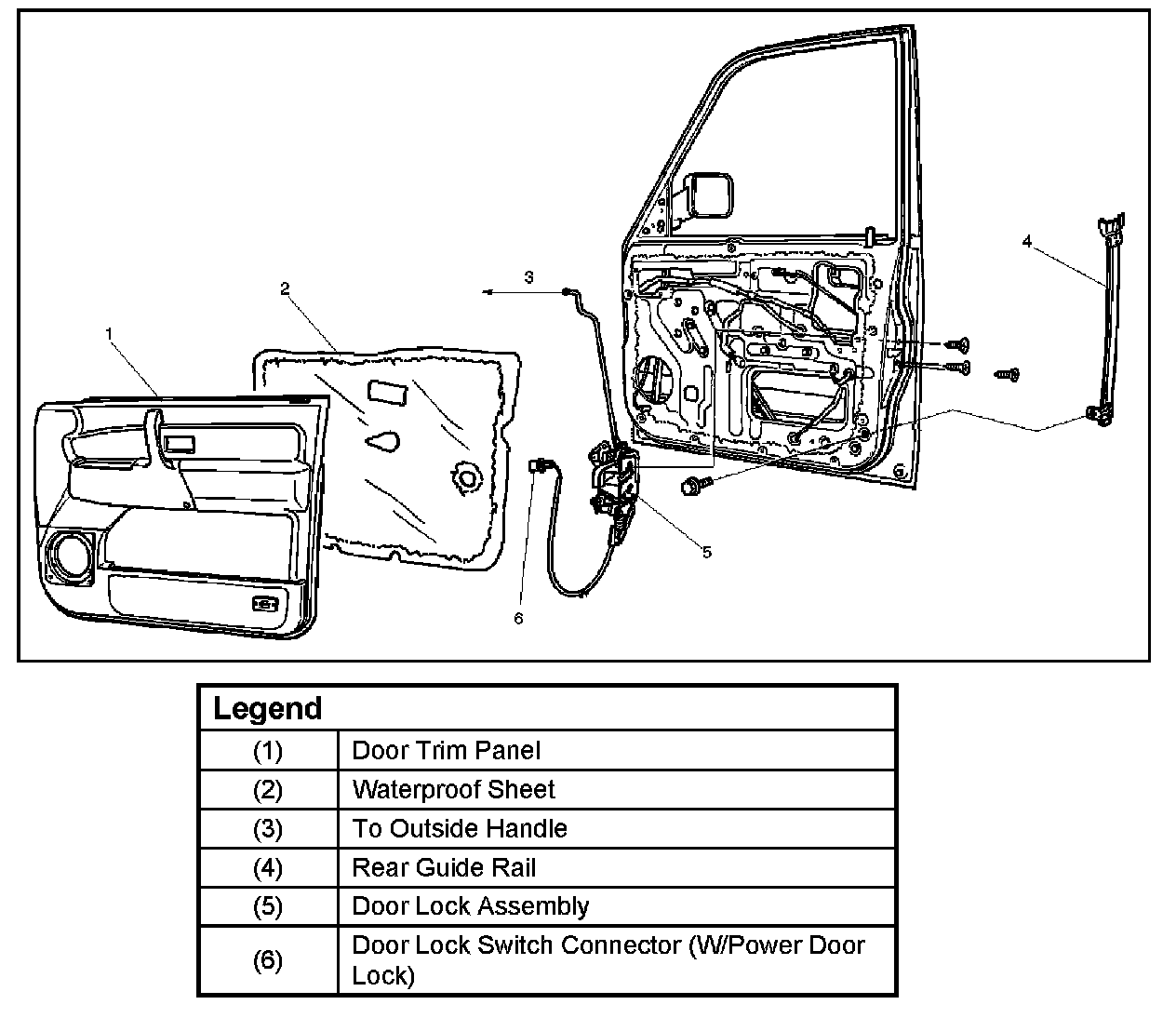

Front Door Lock Assembly And Associated Parts:

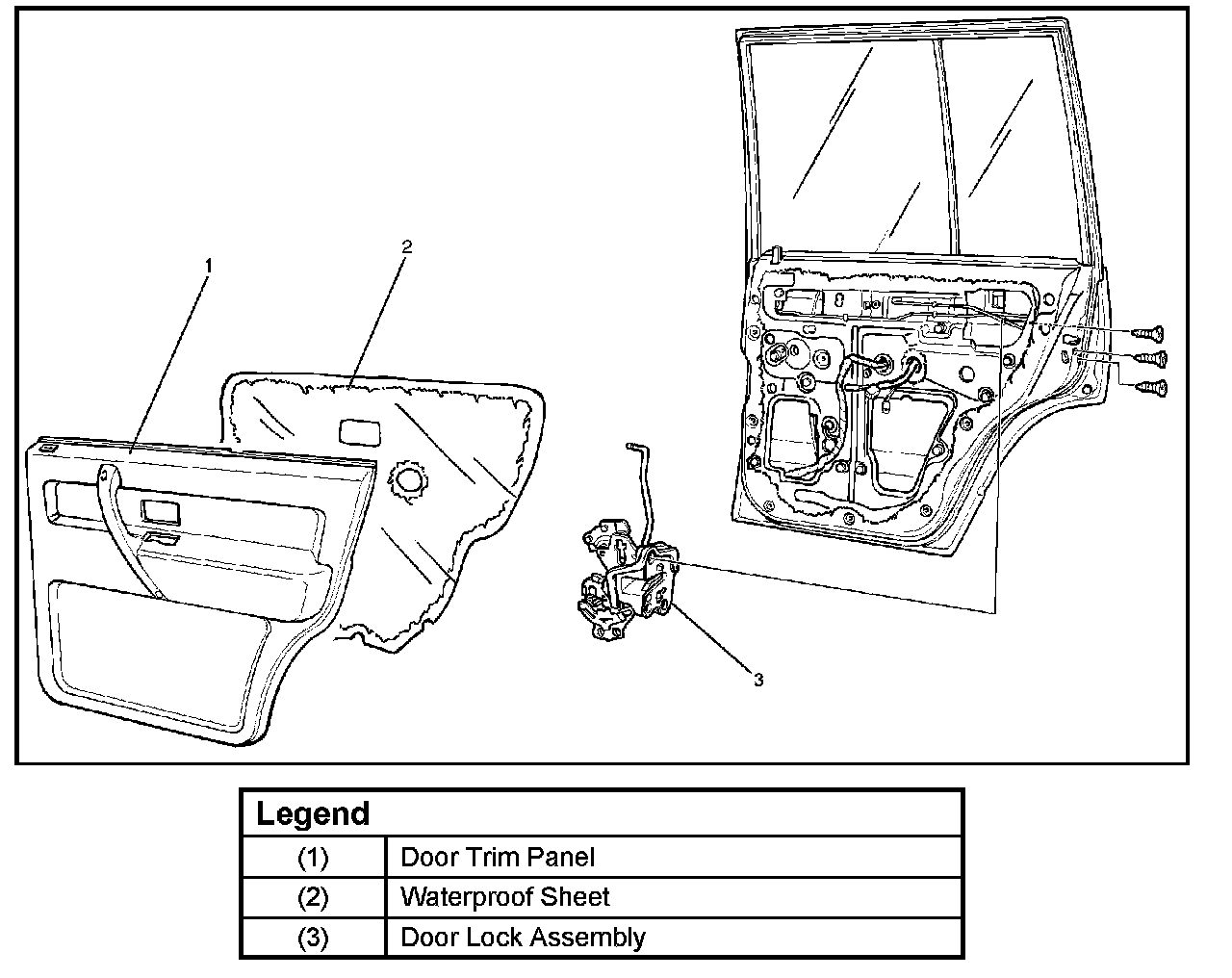

Rear Door Lock Assembly And Associated Parts:
