Tailgate Release Handle

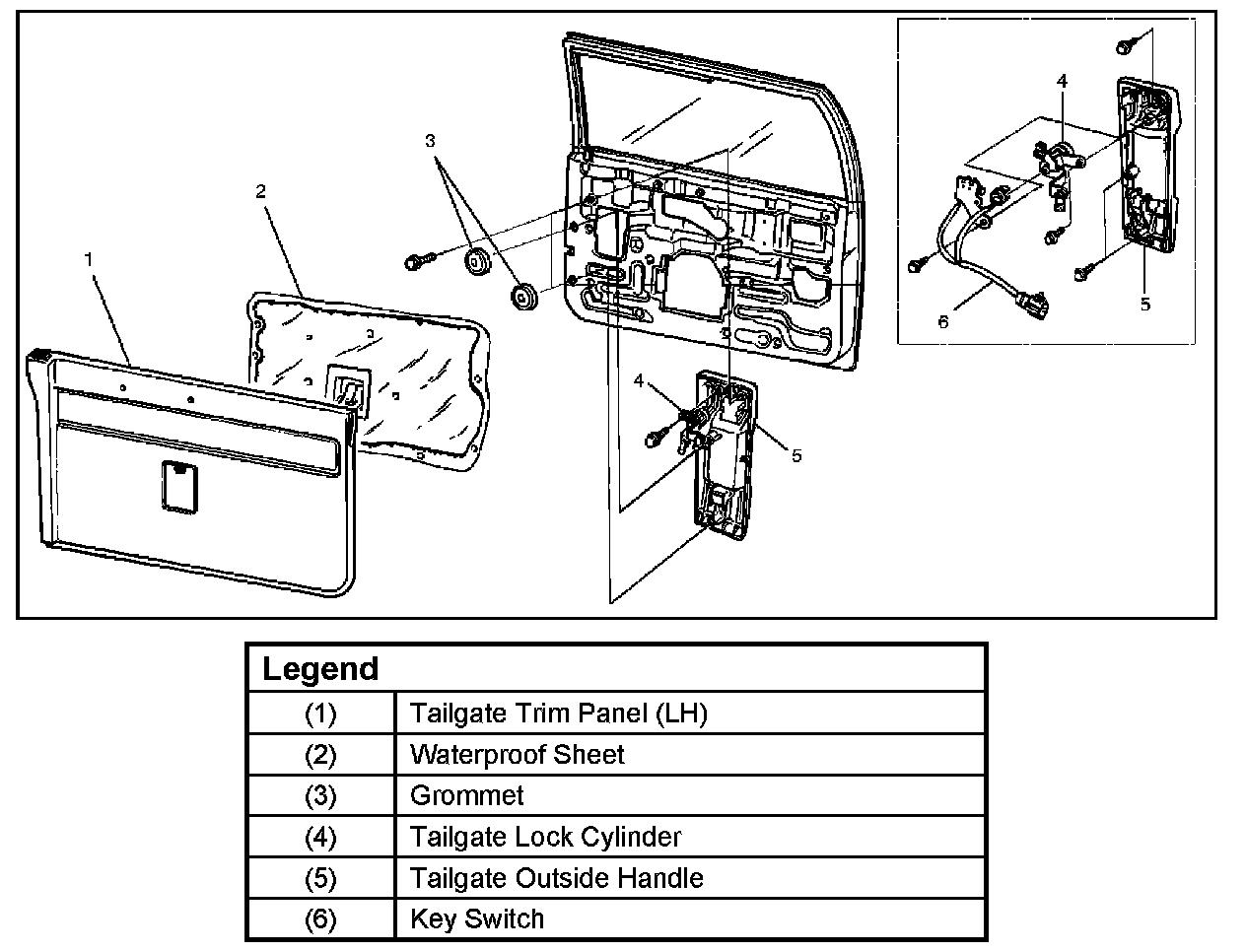

Tailgate Outside Handle And / Or Tailgate Lock Cylinder And Associated Parts:
