Ignition Switch: Service and Repair

Starter Switch

Removal

1. Disconnect the battery ground cable.




2. Remove the front console assembly (1).
Refer to Instrument Panel Assembly in Body Structure.
3. Remove the lower cluster assembly (2).
Refer to Instrument Panel Assembly in Body Structure.
4. Remove the instrument panel driver lower cover assembly (3).
Refer to Instrument Panel Assembly in Body Structure.




5. Remove seven screws to remove the steering cow (6 ).

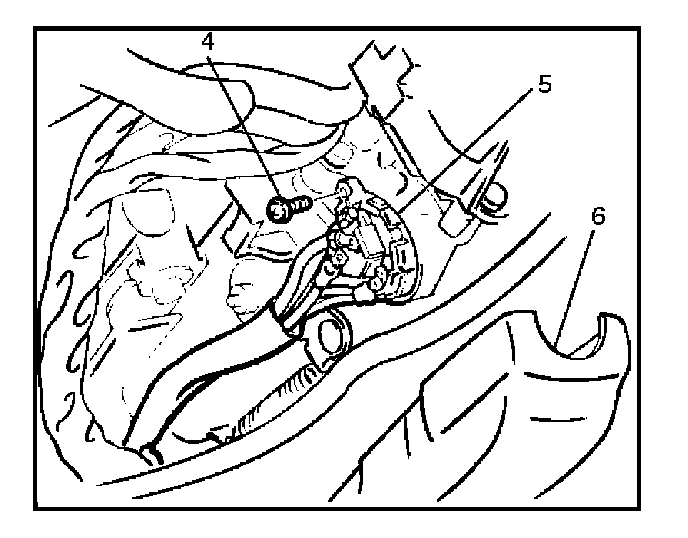

6. Disconnect the connector, remove the screw (4) and then remove the starter switch (5).

Installation

To install, follow the removal steps in the reverse order noting the following point.




1. When installing the steering cow (10) be sure to pass the harnesses through the route as shown in the figure so that the starter switch harness (7), the combination switch harness (8) and the inflator module harness (9) will not get caught.
