Relay Lever: Removal

  1. Raise the vehicle and support the frame with suitable safety stands.
  2. Remove nut and cotter pin then use remover J-36831 to disconnect relay lever at the center track rod.

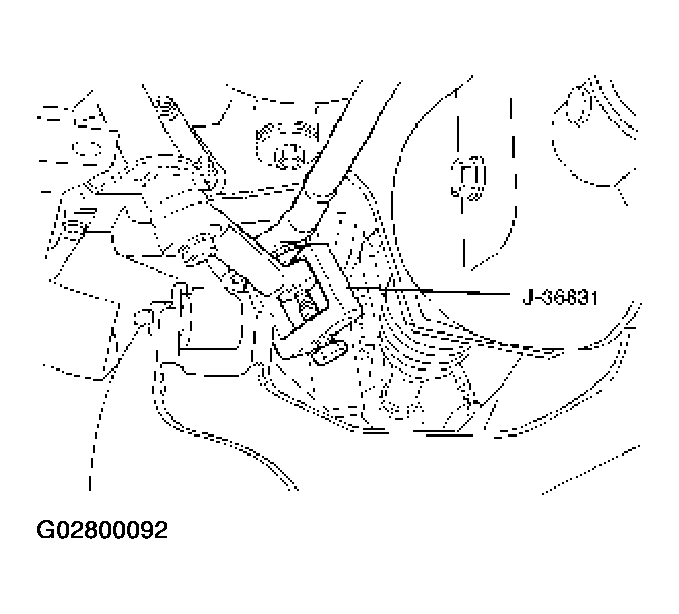

    Fig 1: Disconnecting Relay Lever At Center Track Rod
    G02800092Courtesy of ISUZU MOTOR CO.
  3. Remove stabilizer bar bolt and nut and push the stabilizer bar aside, then remove the relay lever bolts and nuts.

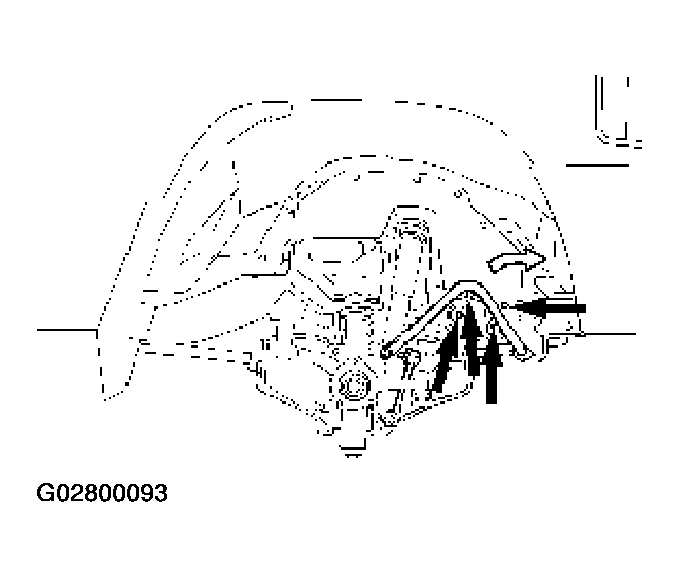

    Fig 2: Removing Relay Lever Bolts And Nuts
    G02800093Courtesy of ISUZU MOTOR CO.
  4. Remove relay lever and bracket.
  5. Remove relay lever nut and washer.
  6. Remove relay lever, use remover J-22912-01 to remove relay lever from the bracket.

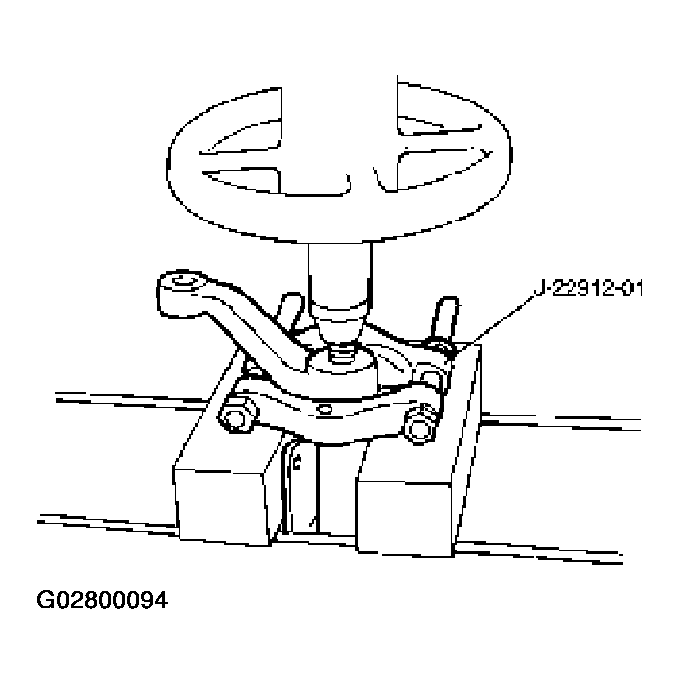

    Fig 3: Removing Relay Lever From Bracket
    G02800094Courtesy of ISUZU MOTOR CO.
  7. Remove bracket.
