Ic Regulator Assembly

Check for continuity across "B" and "F" in the X 100W range of multimeter. See Fig 1 . Change polarity, and ensure that there is continuity in one direction, and not in the reverse direction. In case of continuity in both directions, replace the IC regulator assembly.

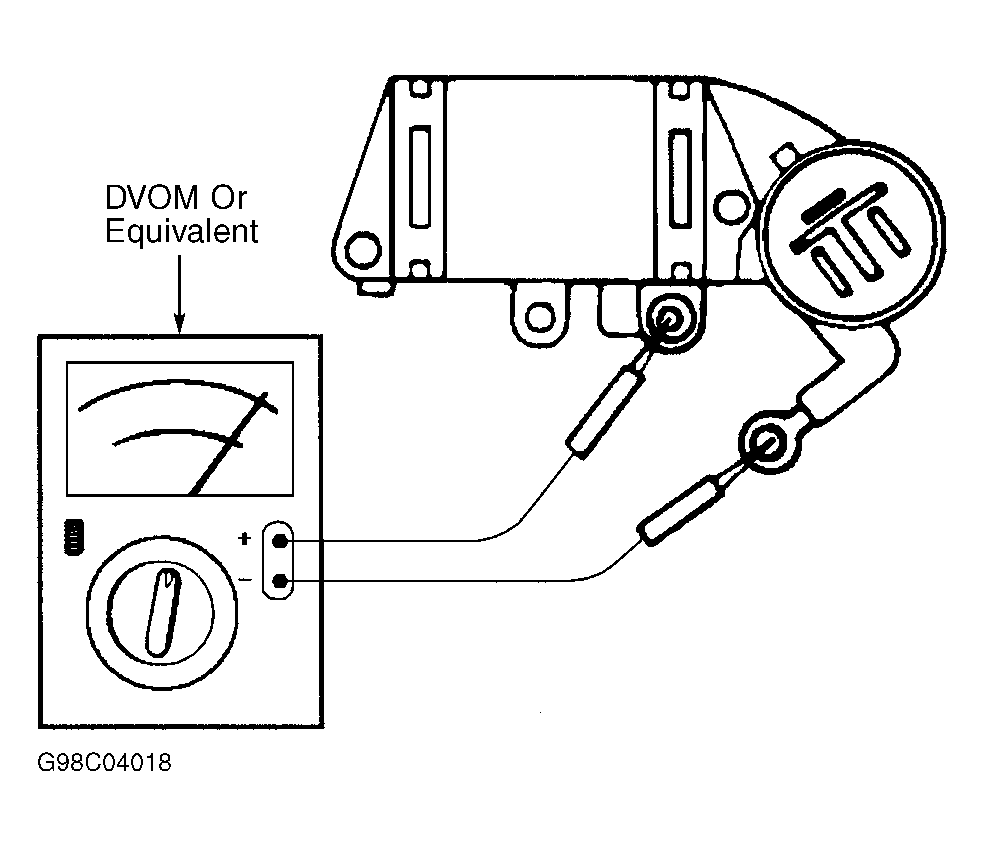

Fig 1: Testing IC Voltage Regulator

Courtesy of ISUZU MOTOR CO.
