Inflator Module: Installation

  1. Install inflator module.
    CAUTION:
    • Never use the air bag assembly from another vehicle. Use only the air bag assembly for "UX".
  2. Support the module and carefully connect the module connector.
    NOTE: Pass the lead wire through the tabs on the plastic cover (wire protector) of inflator to prevent lead wire from being pinched.
  3. Secure the module with one bolt to relieve weight on the wire connector and tighten bolts to specified sequence as illustrated.

    Torque:  8 N.m (69 lb in)

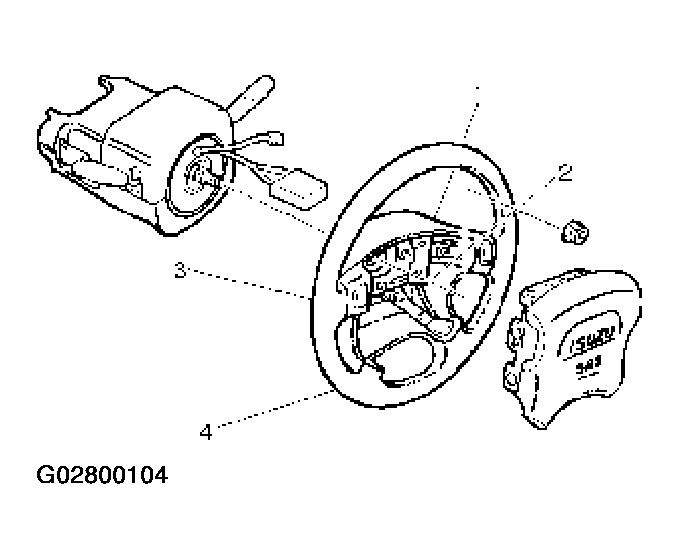

    Fig 1: Installing Inflator Module And Associated Parts
    G02800104Courtesy of ISUZU MOTOR CO.
  4. Connect the yellow 2-way SRS connector located under the steering column.
  5. Connect the battery "-" (negative) terminal cable.
  6. Set ignition to "ON" while watching warning light. Light should flash 7 times and then go off. If lamp does not operate correctly, refer to AIR BAG RESTRAINT SYSTEMS .
