Torque Specification

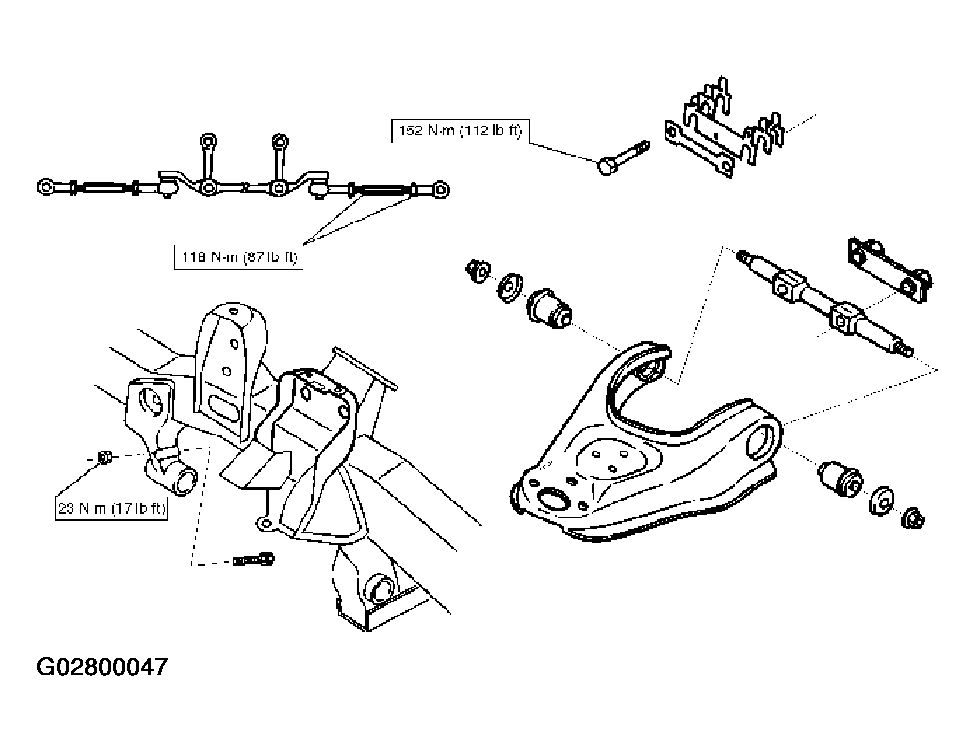

Fig 1: Identifying Tightening Torque
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
