Column Capsule

Check capsules on steering column bracket assembly; all must be securely seated in bracket slots and checked for any loose conditions when pushed or pulled by hand.

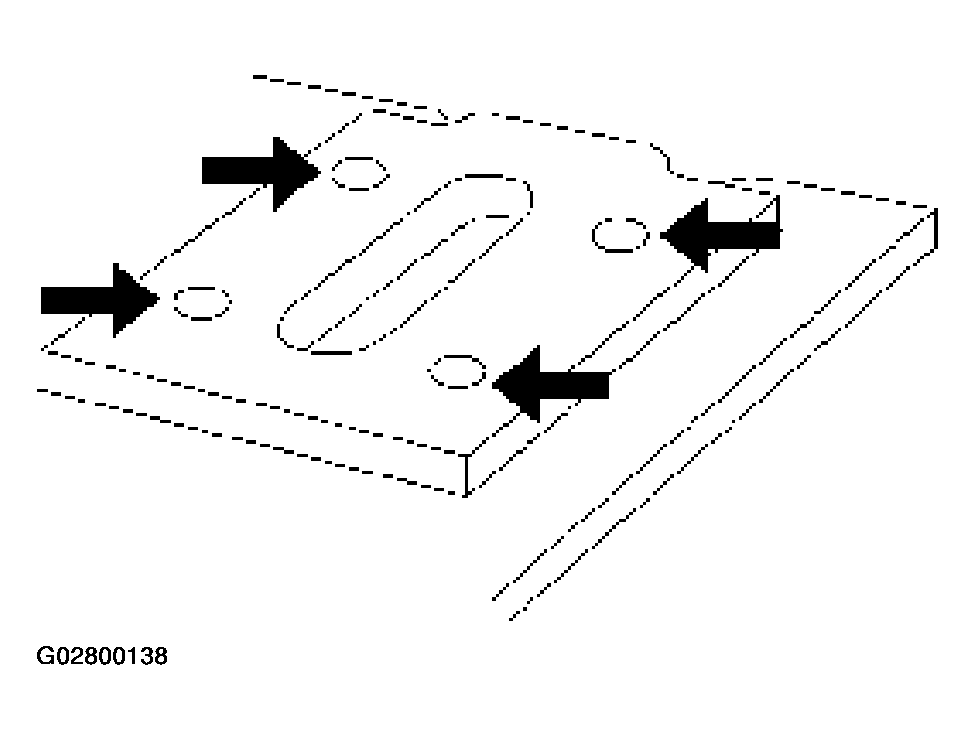

Fig 1: Checking Capsules On Steering Column Bracket Assembly

Courtesy of ISUZU MOTOR CO.

Check clearance between capsule and bracket. It must be within 1 mm (0.039 in).

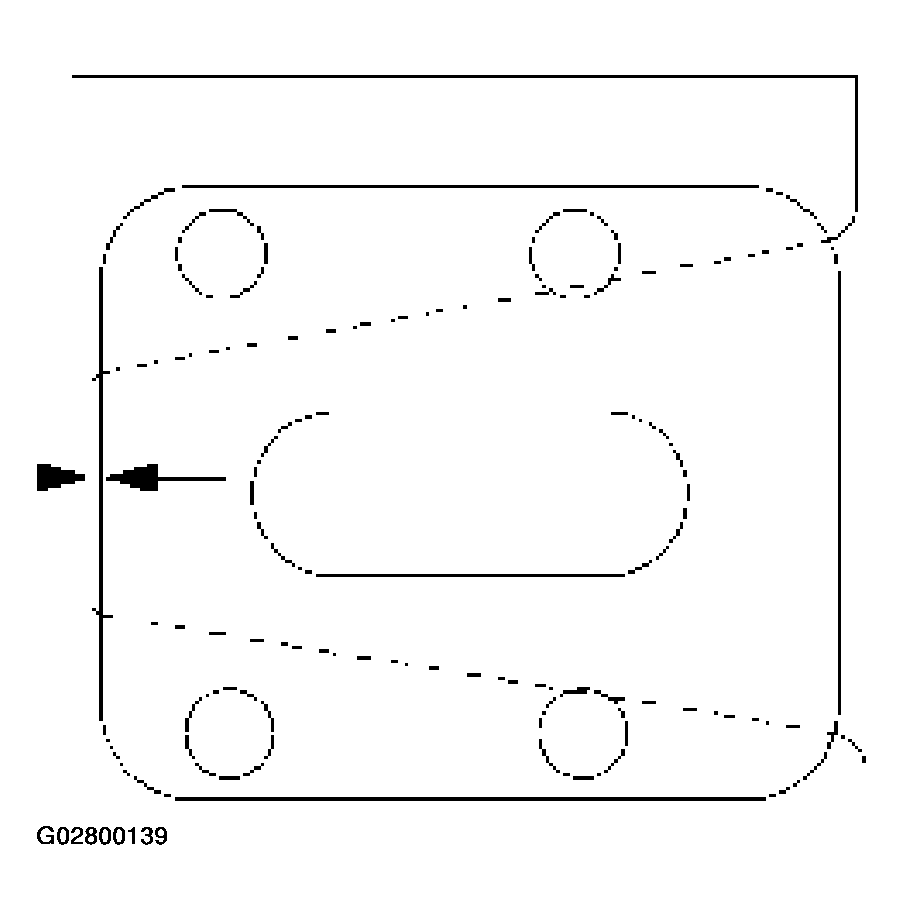

Fig 2: Checking Clearance Between Capsule And Bracket

Courtesy of ISUZU MOTOR CO.
