Functions of Input/Output Components

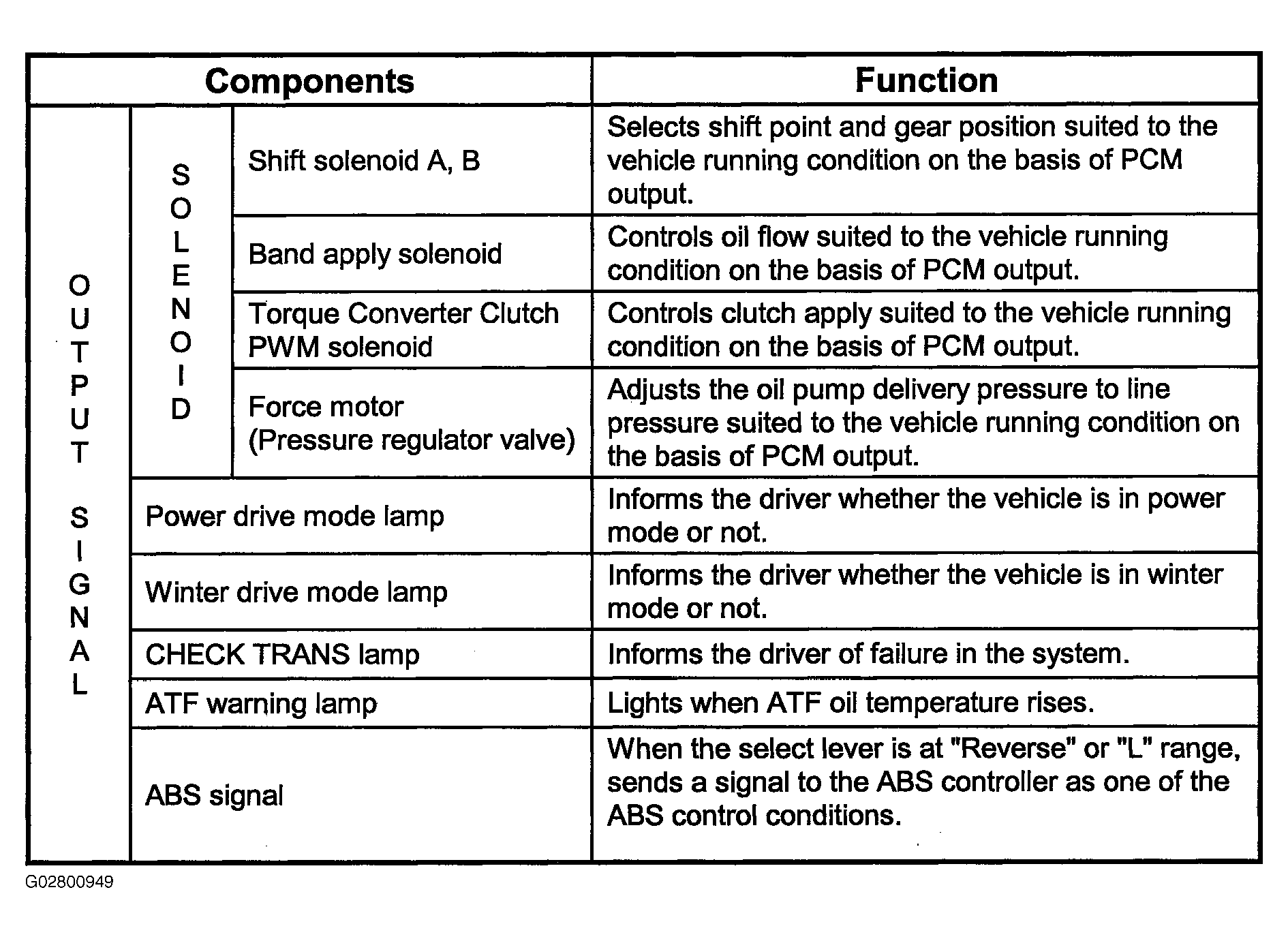

Fig 1: Functions Of Input/Output Components - Chart (1 Of 2)
Courtesy of ISUZU MOTOR CO.

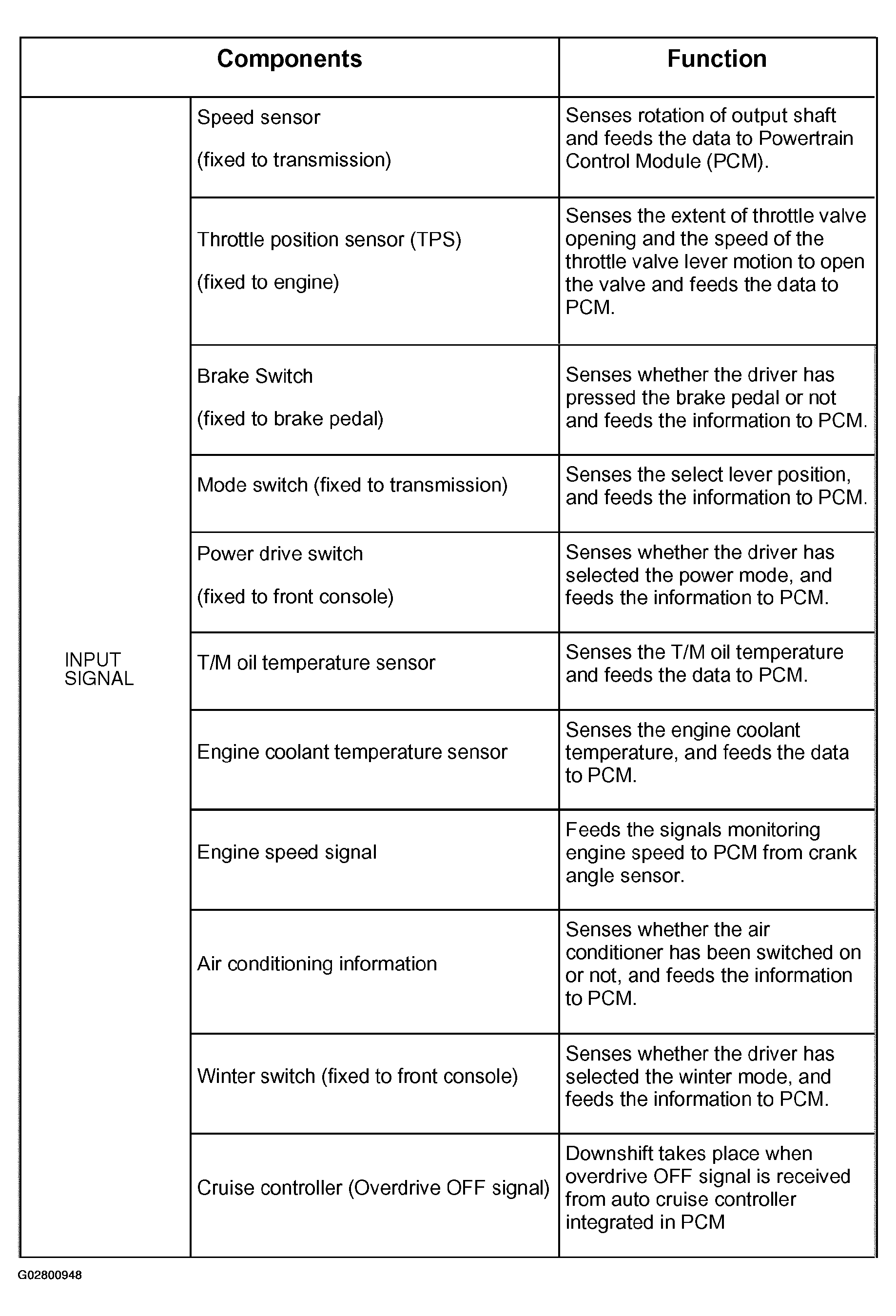

Fig 2: Functions Of Input/Output Components - Chart (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
