Connector Pin Assignment: Notes

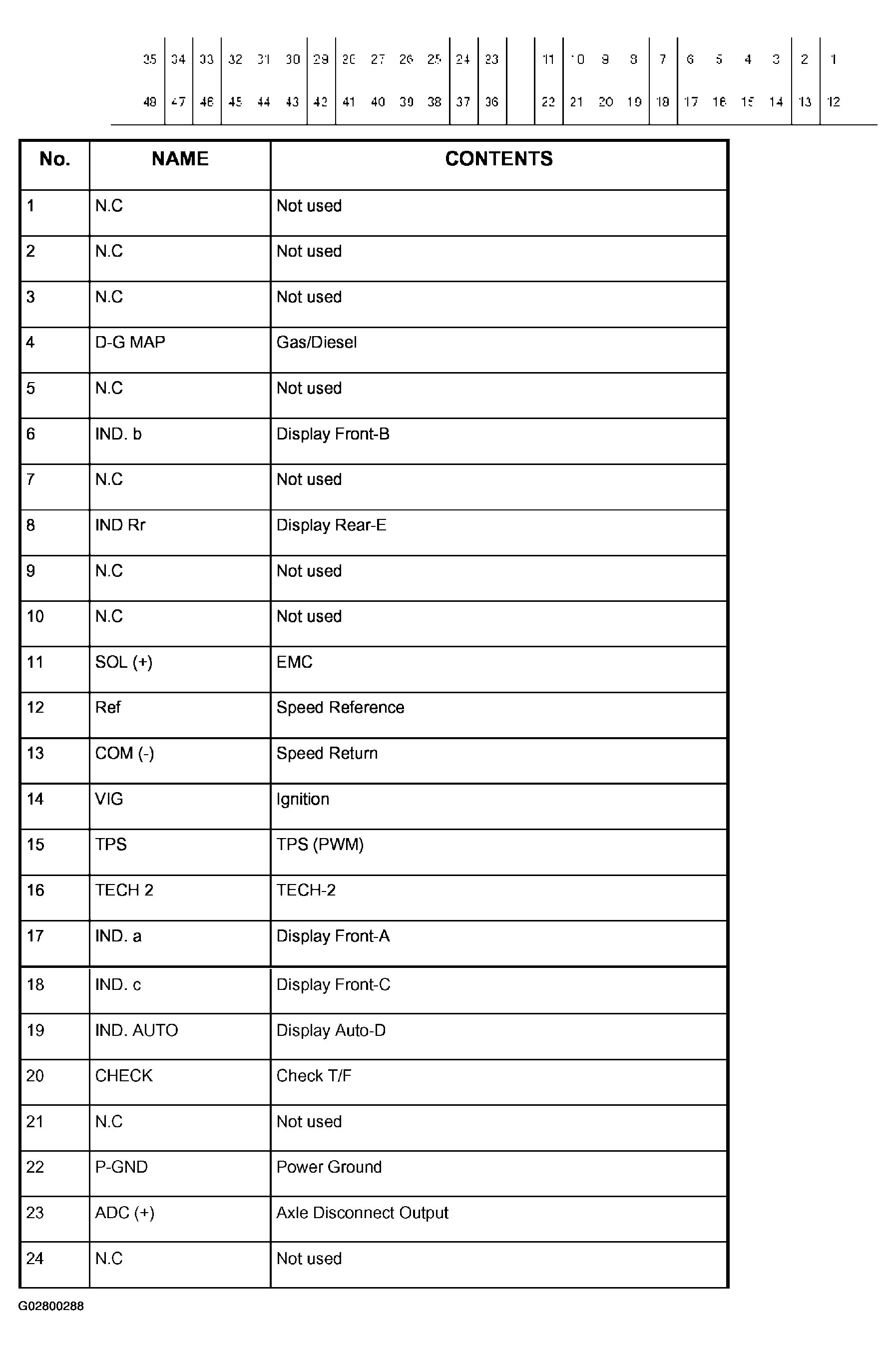

Fig 1: Connector Pin Assignment Chart (1 Of 2)
G02800288Courtesy of ISUZU MOTOR CO.

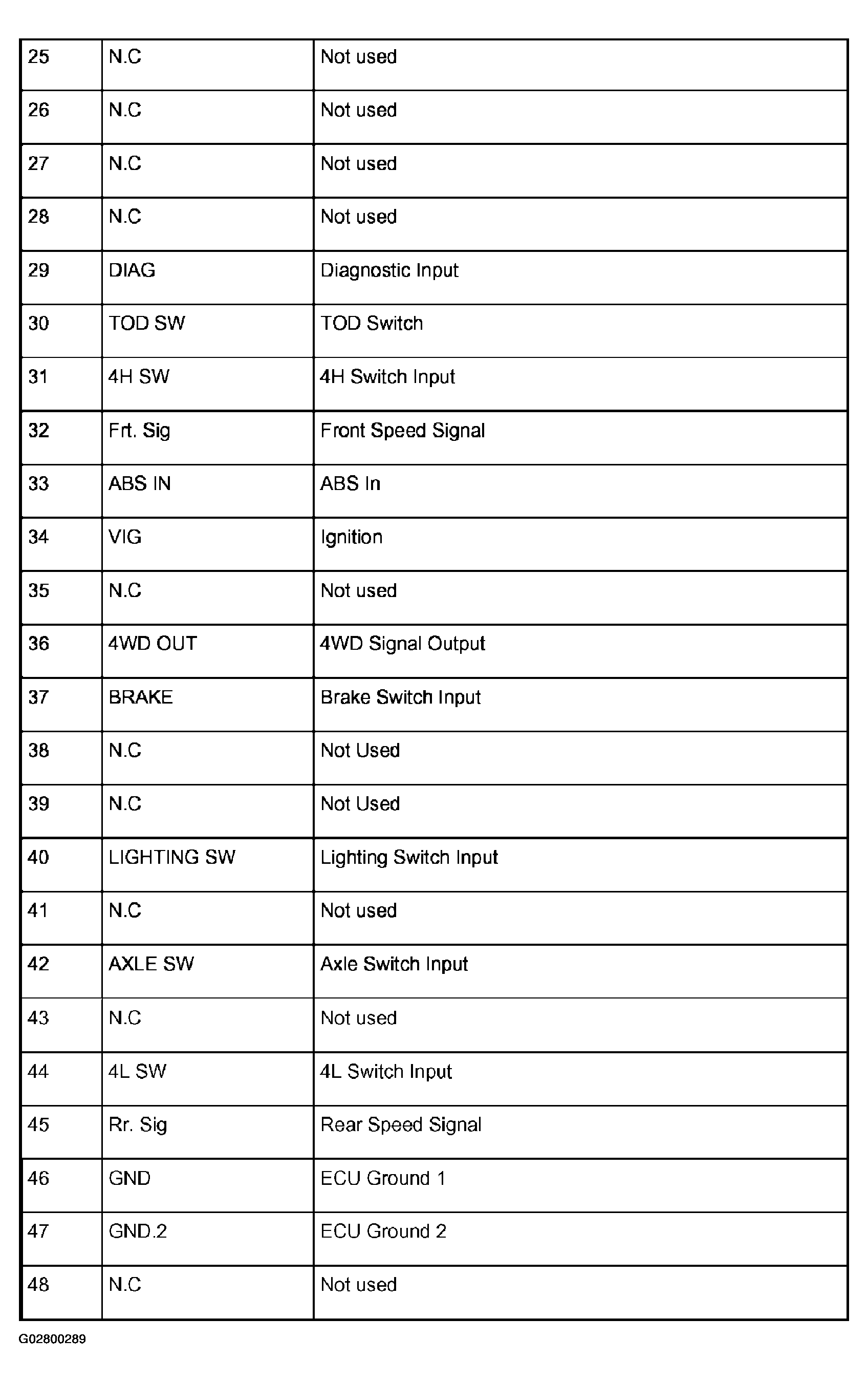

Fig 2: Connector Pin Assignment Chart (2 Of 2)
G02800289Courtesy of ISUZU MOTOR CO.
