Connector Pin Assignment: Reference

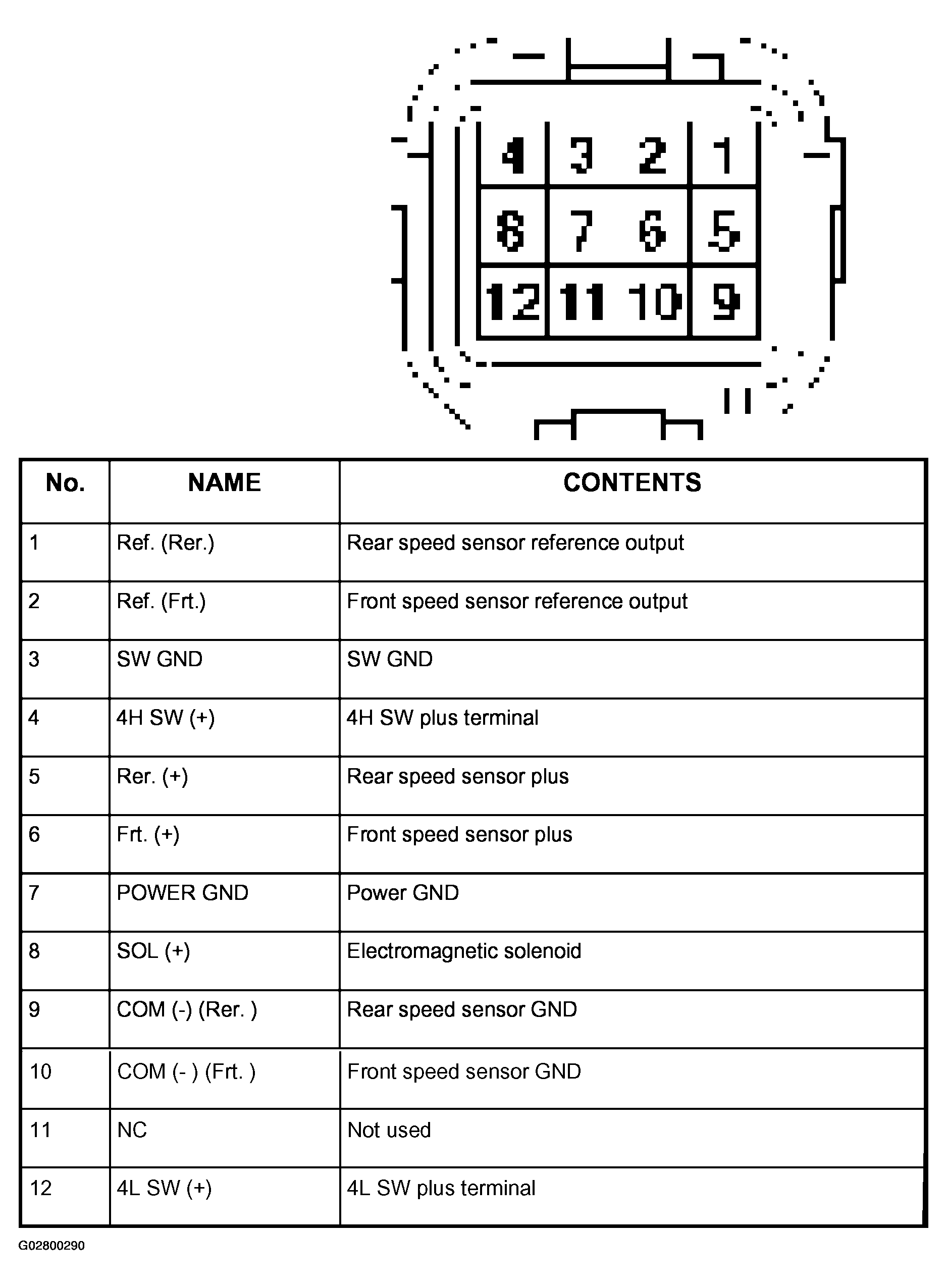

Fig 1: Identifying Transfer Connector Terminals
G02800290Courtesy of ISUZU MOTOR CO.
