Shift Mode Control

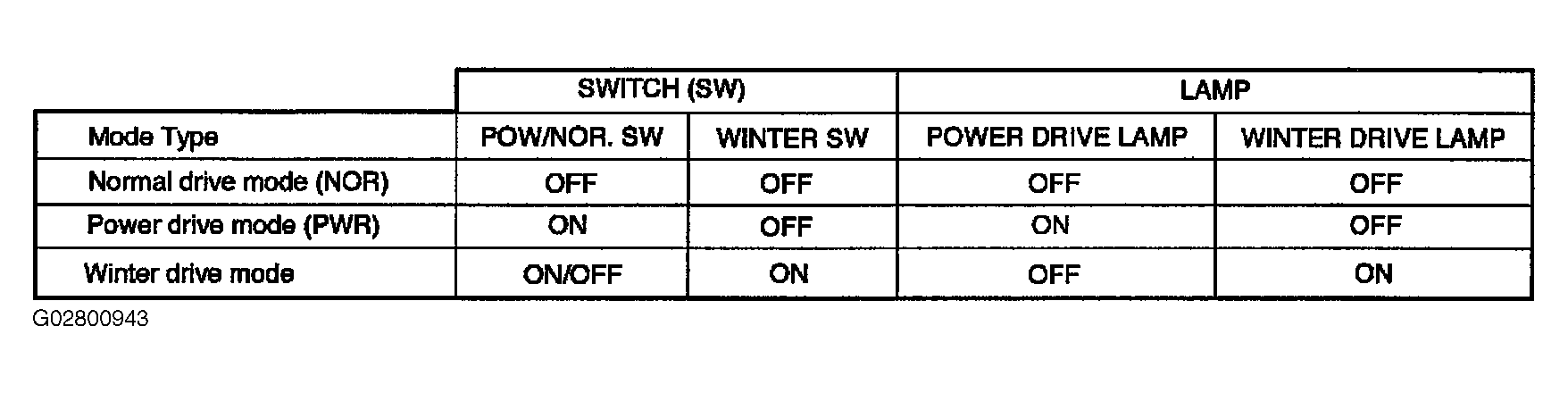

Fig 2: Shift Mode Control - Mode Selection

Courtesy of ISUZU MOTOR CO.

However, the winter switch prevails over the PWR/NOR switch.

The mode becomes normal drive mode when the winter switch is operated from ON to OFF.

1. The normal drive mode is set at the normal shift points.
2. The shift points of the power drive mode are shifted to fro higher speed side compared to the normal drive mode
3. The winter drive mode is a special mode used exclusively for starting in third gear.

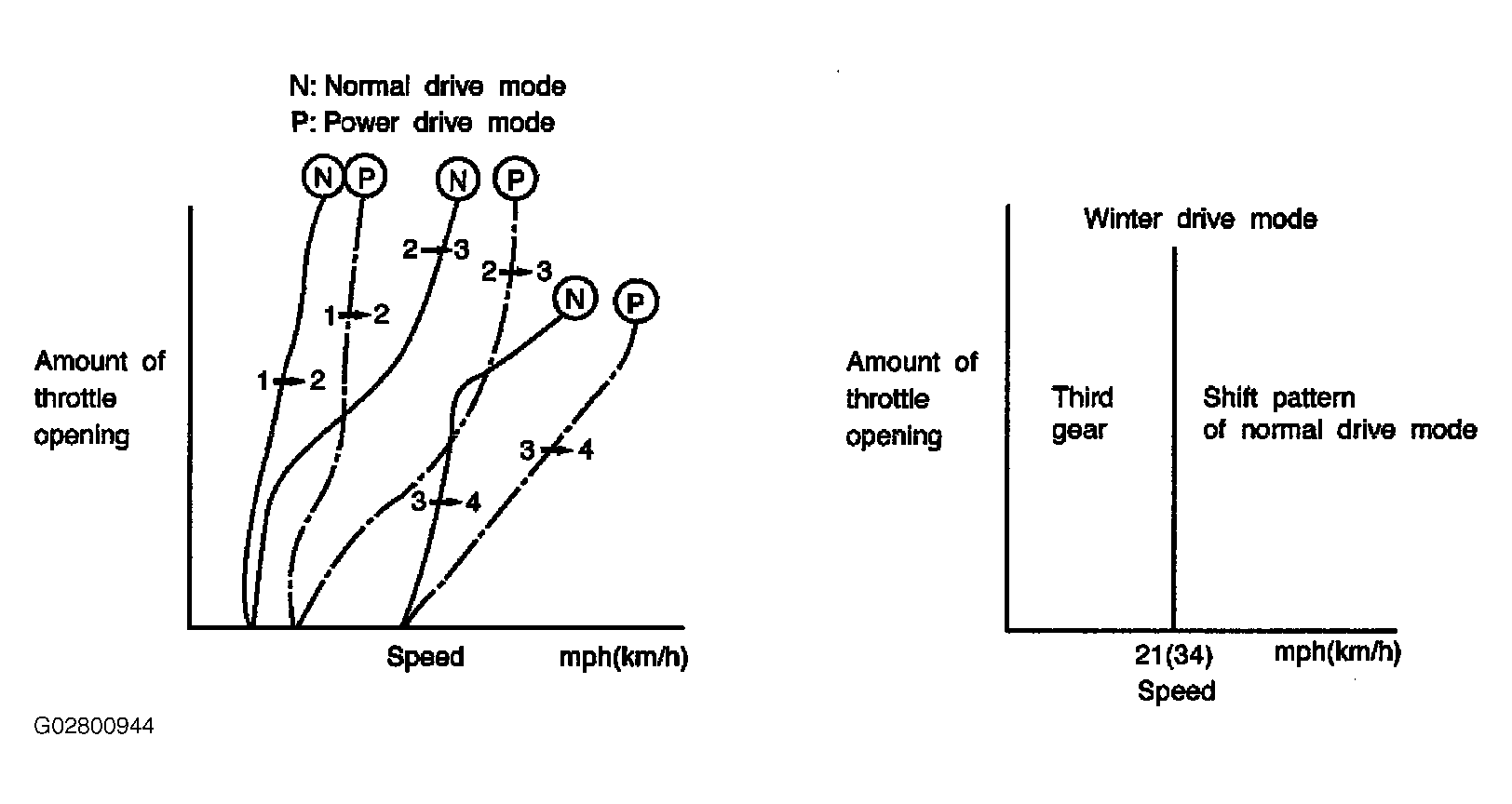

Fig 3: Shift Diagram

Courtesy of ISUZU MOTOR CO.
