Checking Failed TOD Control Unit Pin

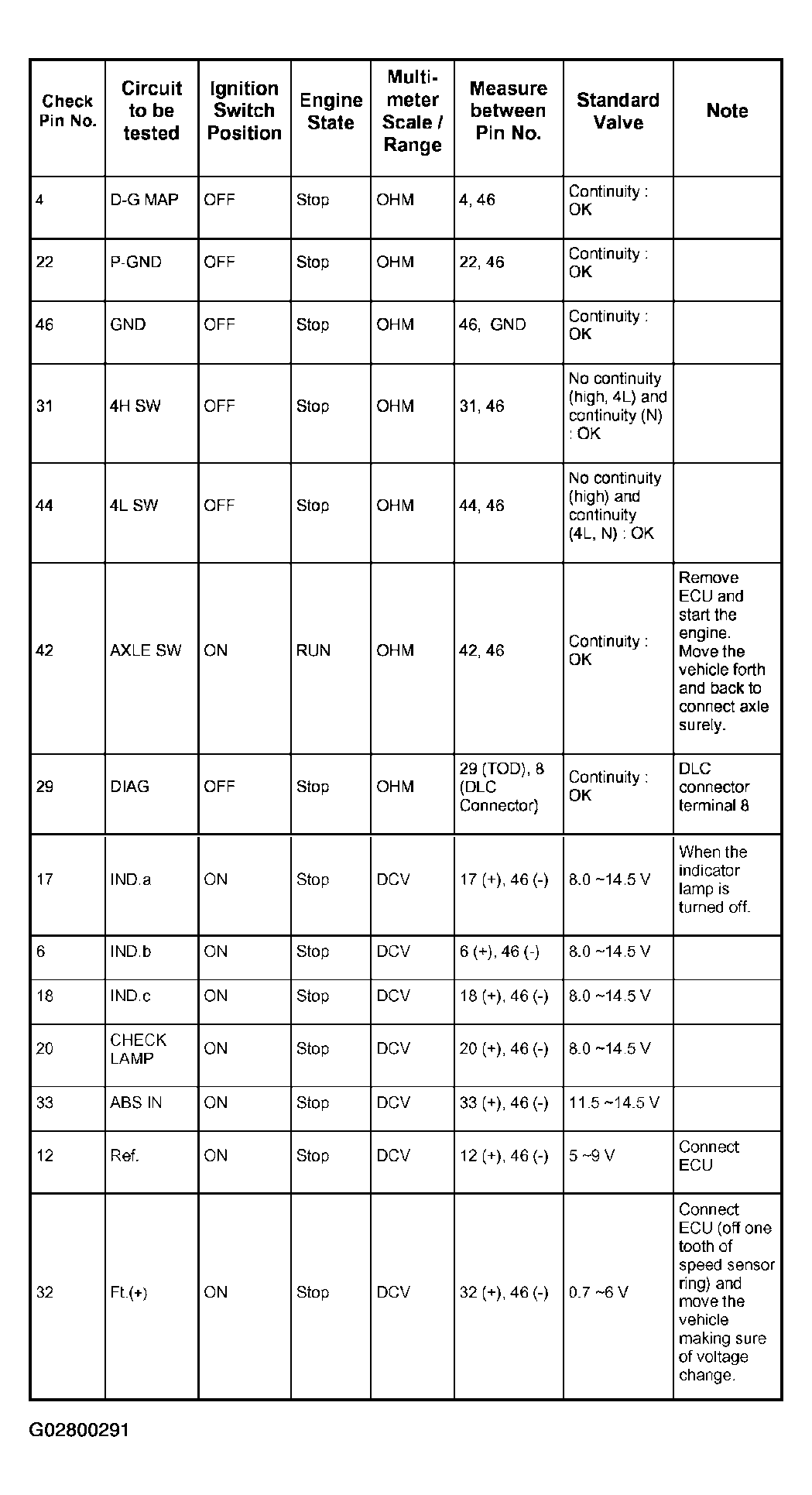

Fig 1: Checking Failed TOD Control Unit Pin Chart (1 Of 2)

Courtesy of ISUZU MOTOR CO.

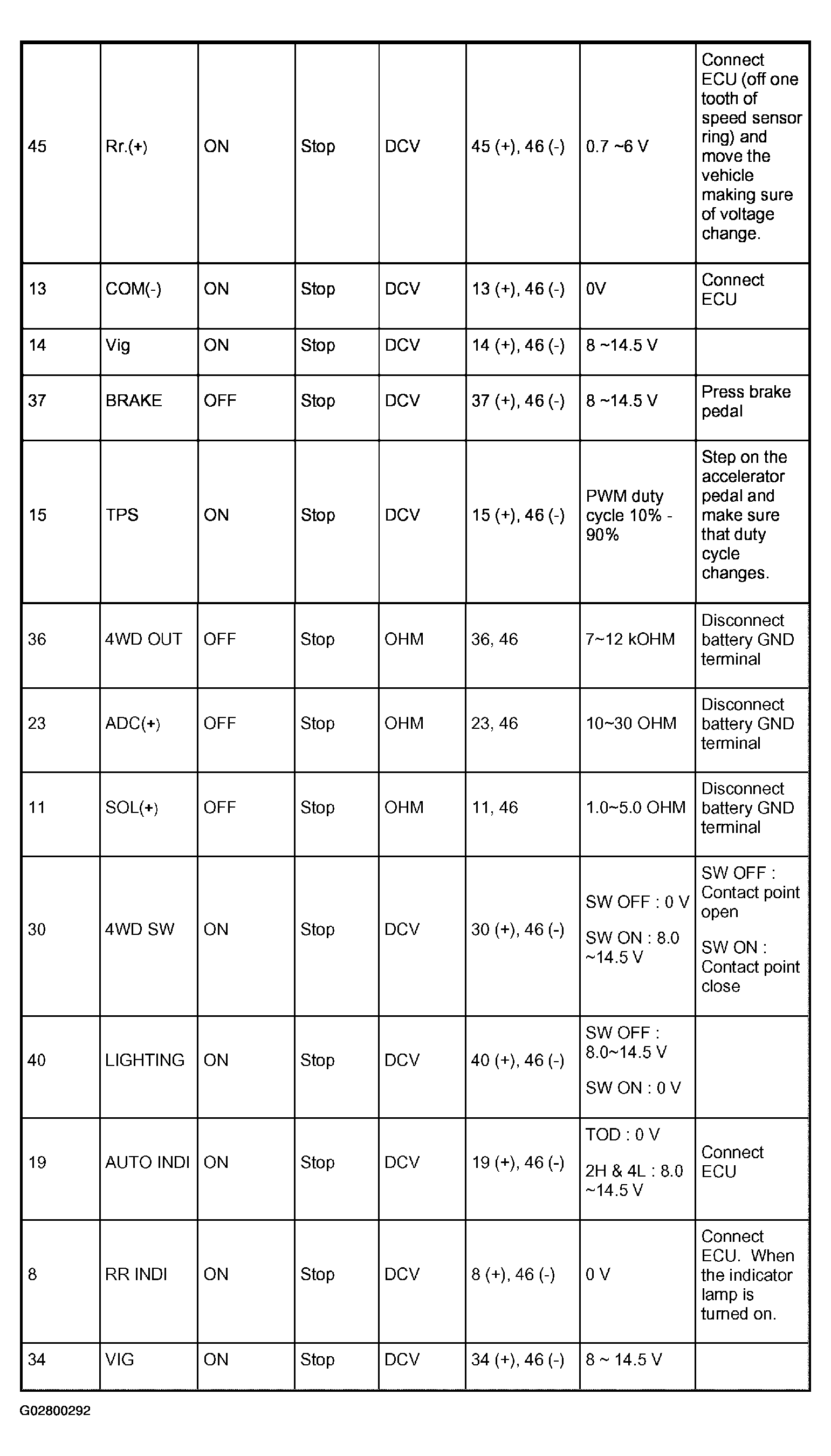

Fig 2: Checking Failed TOD Control Unit Pin Chart (2 Of 2)

Courtesy of ISUZU MOTOR CO.

Tech 2 Scan Tool

From 98 MY, Isuzu dealer service departments are recommended to use Tech 2. Please refer to Tech 2 scan tool user guide.

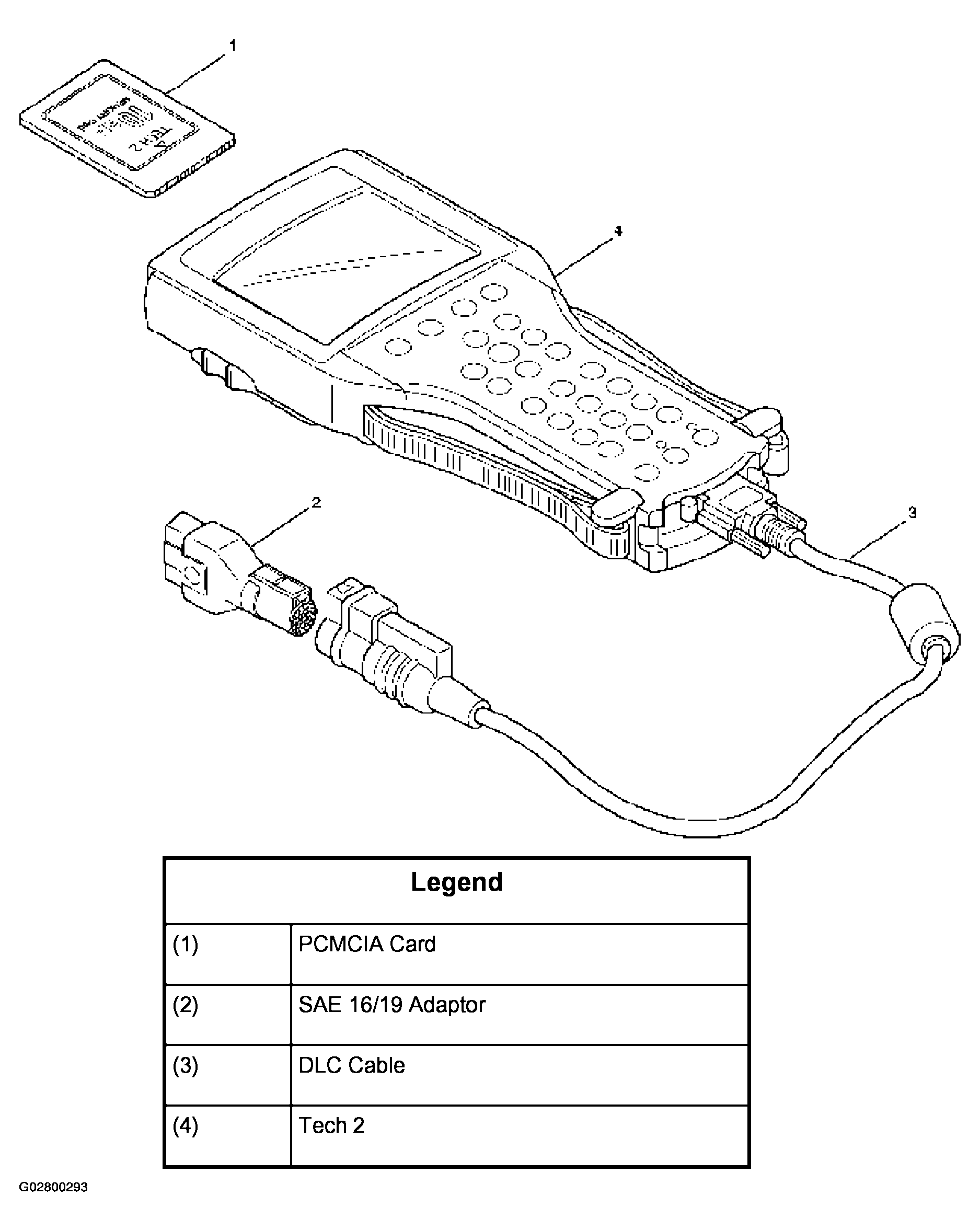

Fig 3: Identifying Tech 2 Scan Tool

Courtesy of ISUZU MOTOR CO.
