Internal Parts
Internal Parts

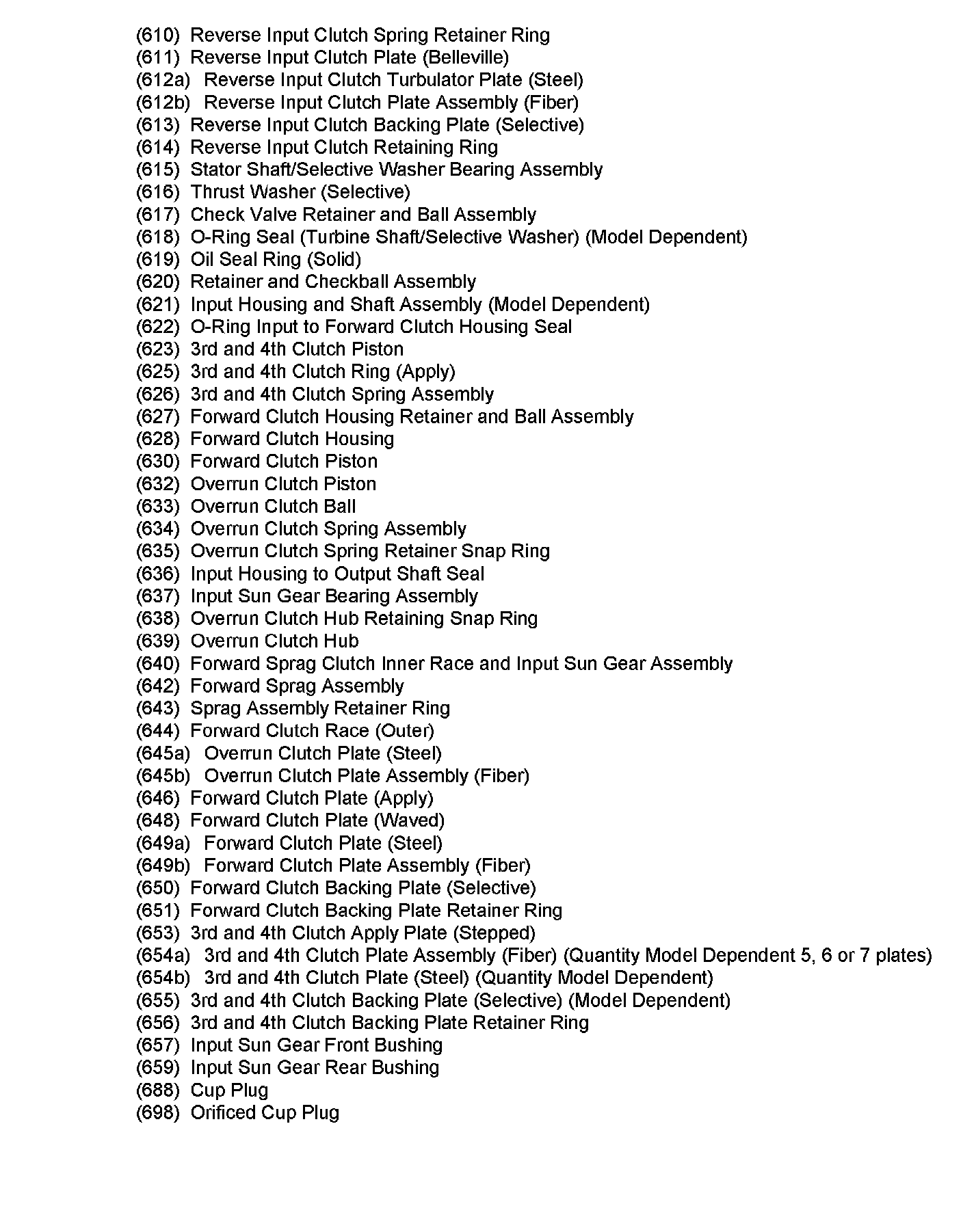

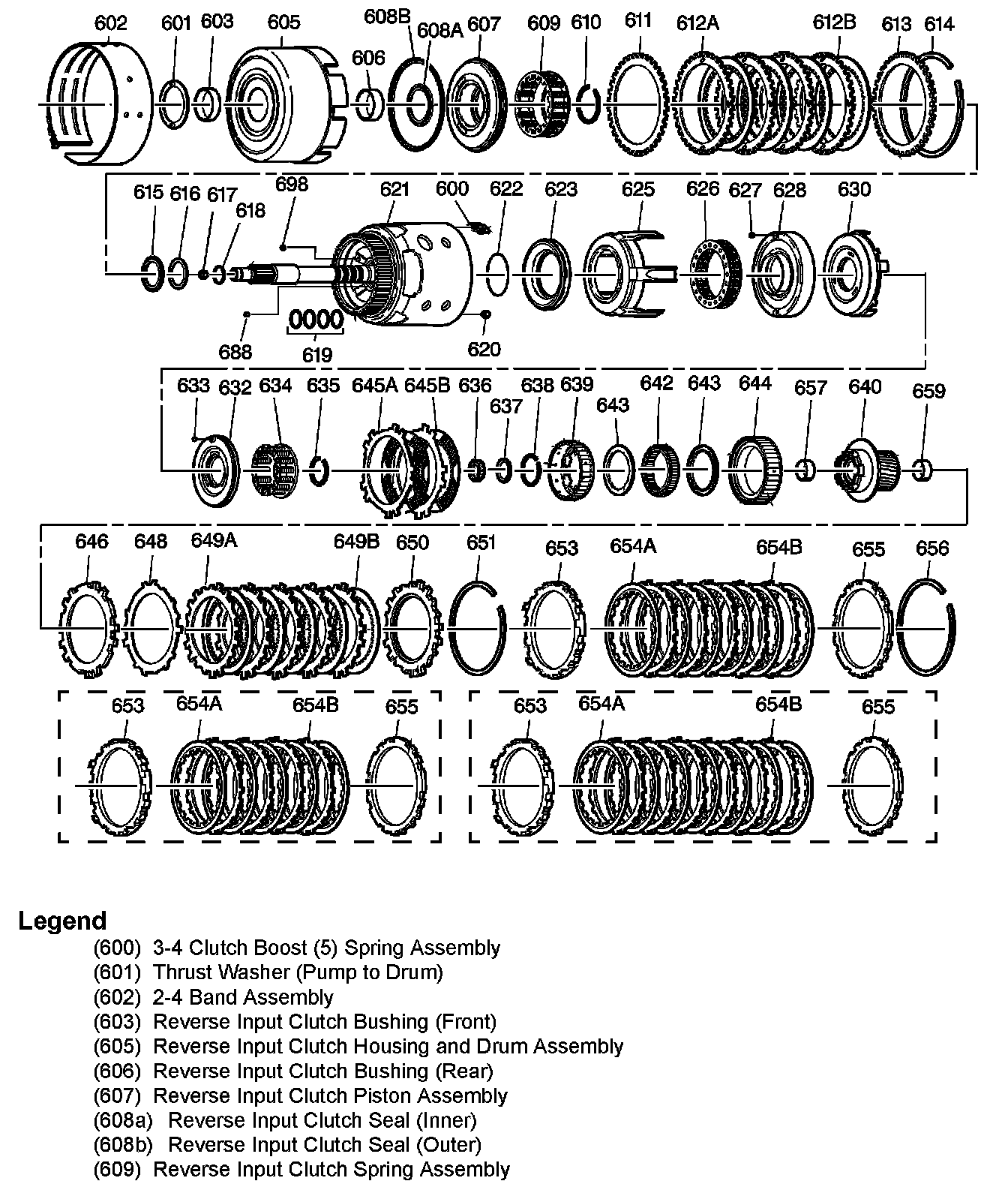

Internal Parts (1 of 2):
Internal Parts (1 of 2):

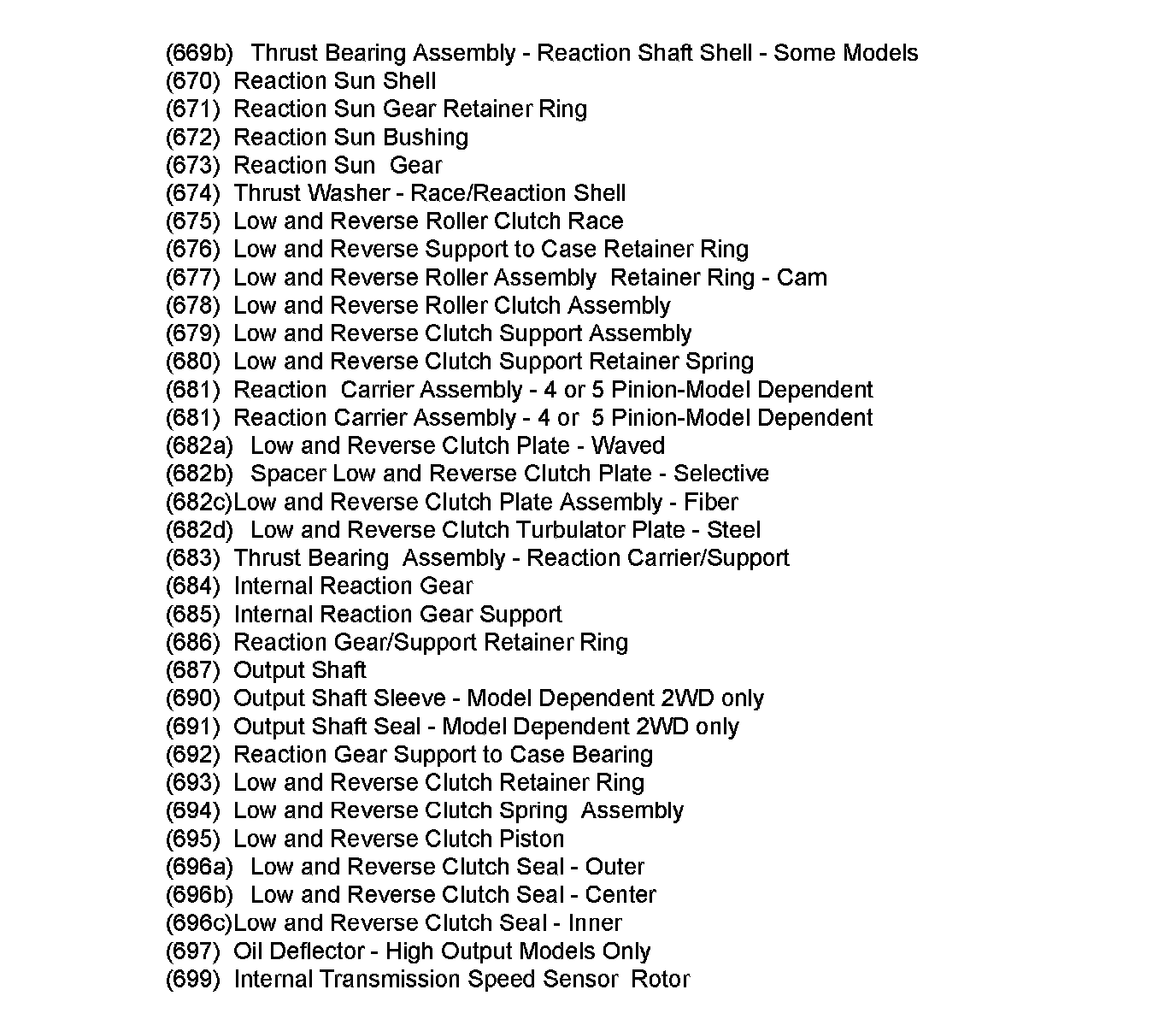

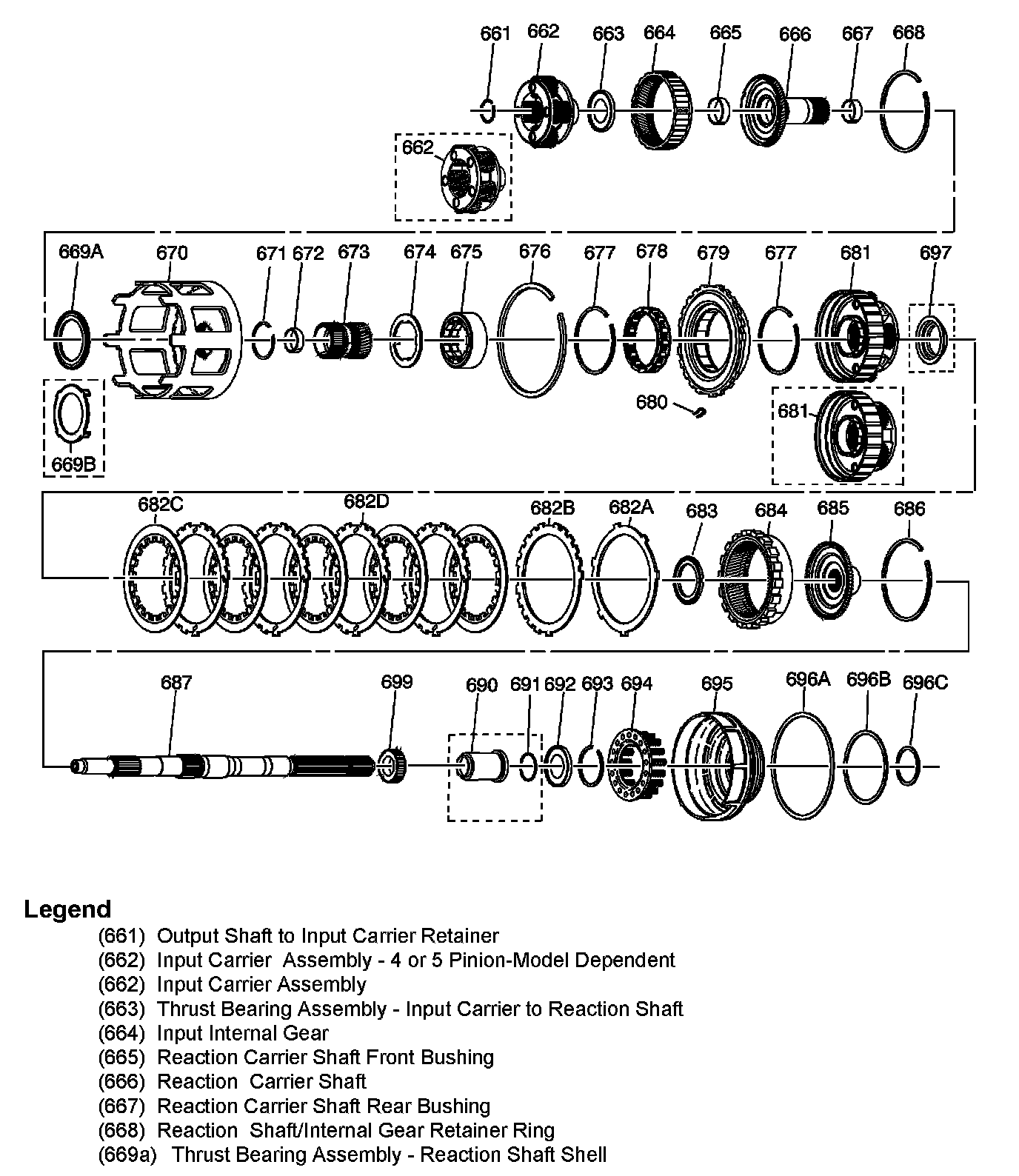

Internal Parts (2 of 2):
Internal Parts (2 of 2):
