Hydraulic System, Brakes
Hydraulic Brakes Component Views

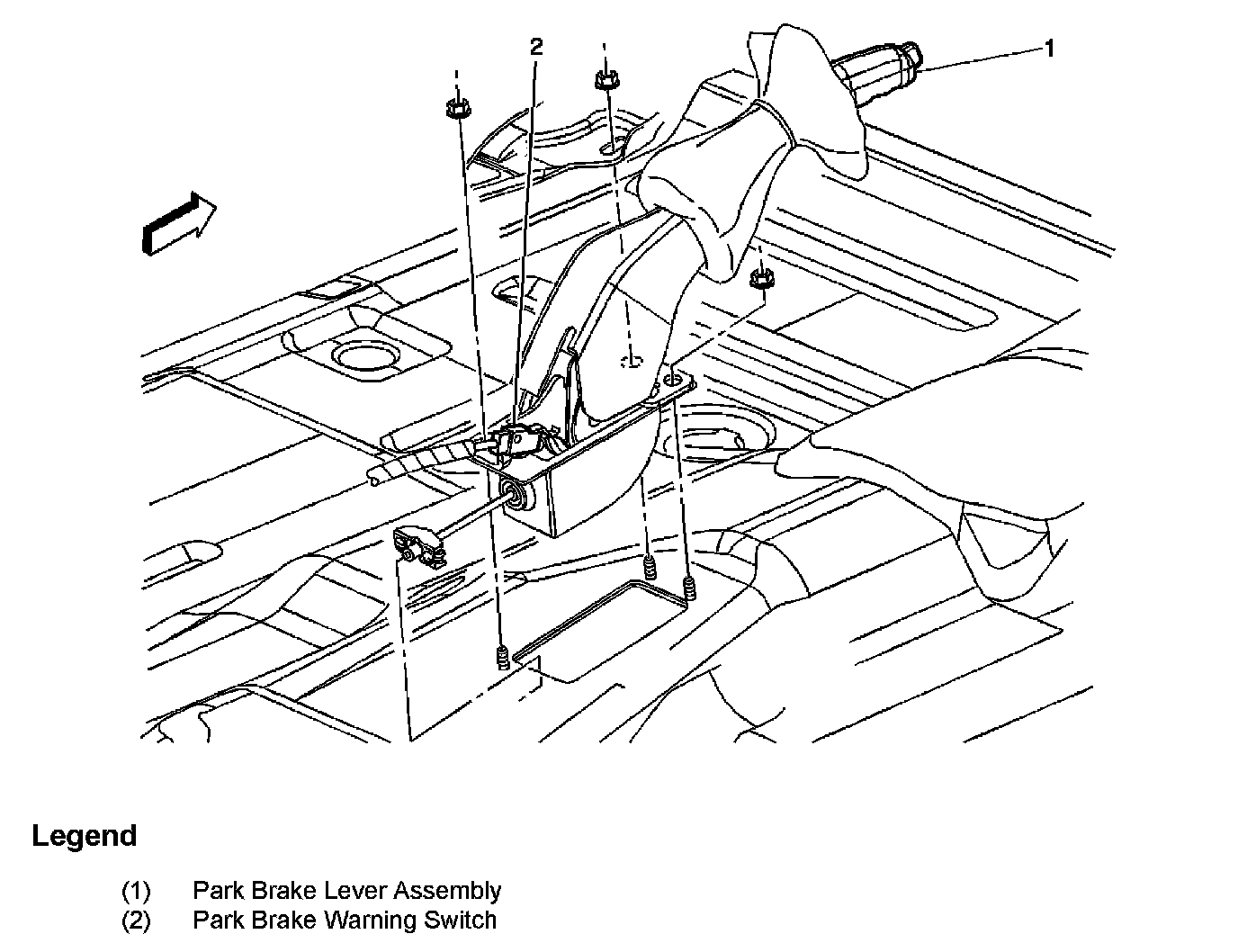

Park Brake Warning Switch:

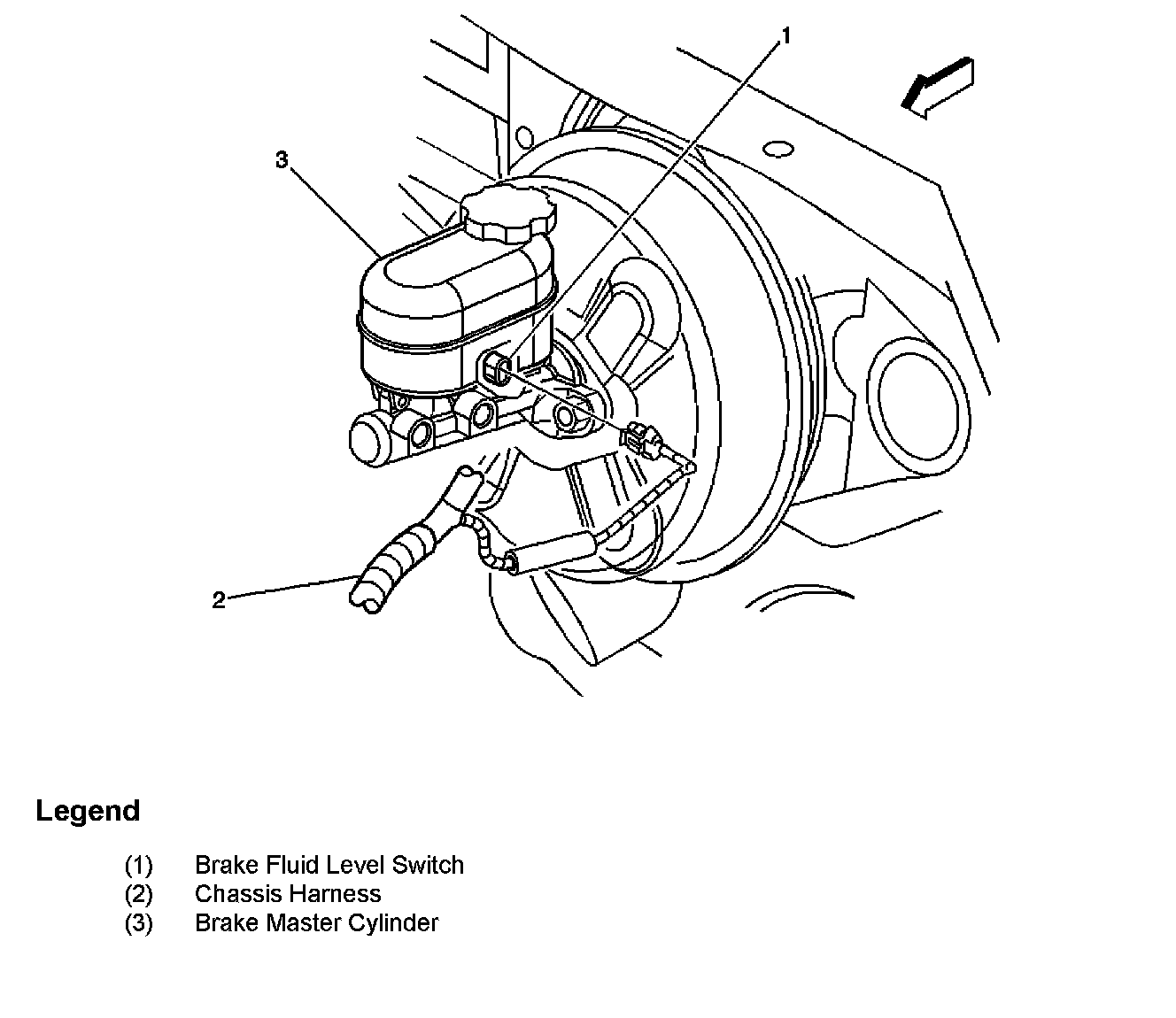

Brake Fluid Level Switch:
