HVAC Module-Auxiliary (Long Wheelbase, Body Type Vin 6)

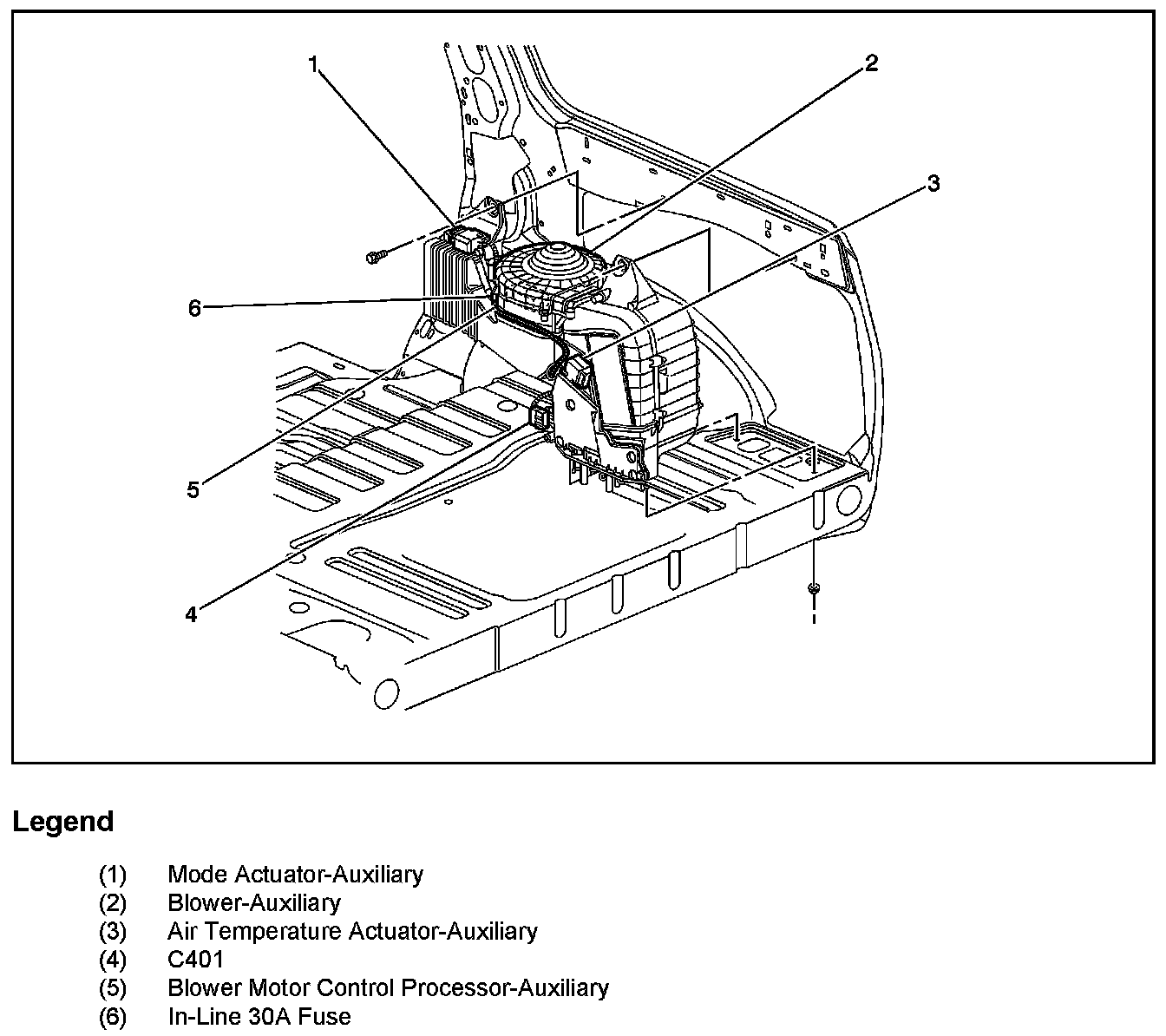

HVAC Module-Auxiliary (Long Wheelbase, Body Type VIN 6):
