Ascender 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Grounding Point
>>
Locations
>>
Engine Ground Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Ground Views

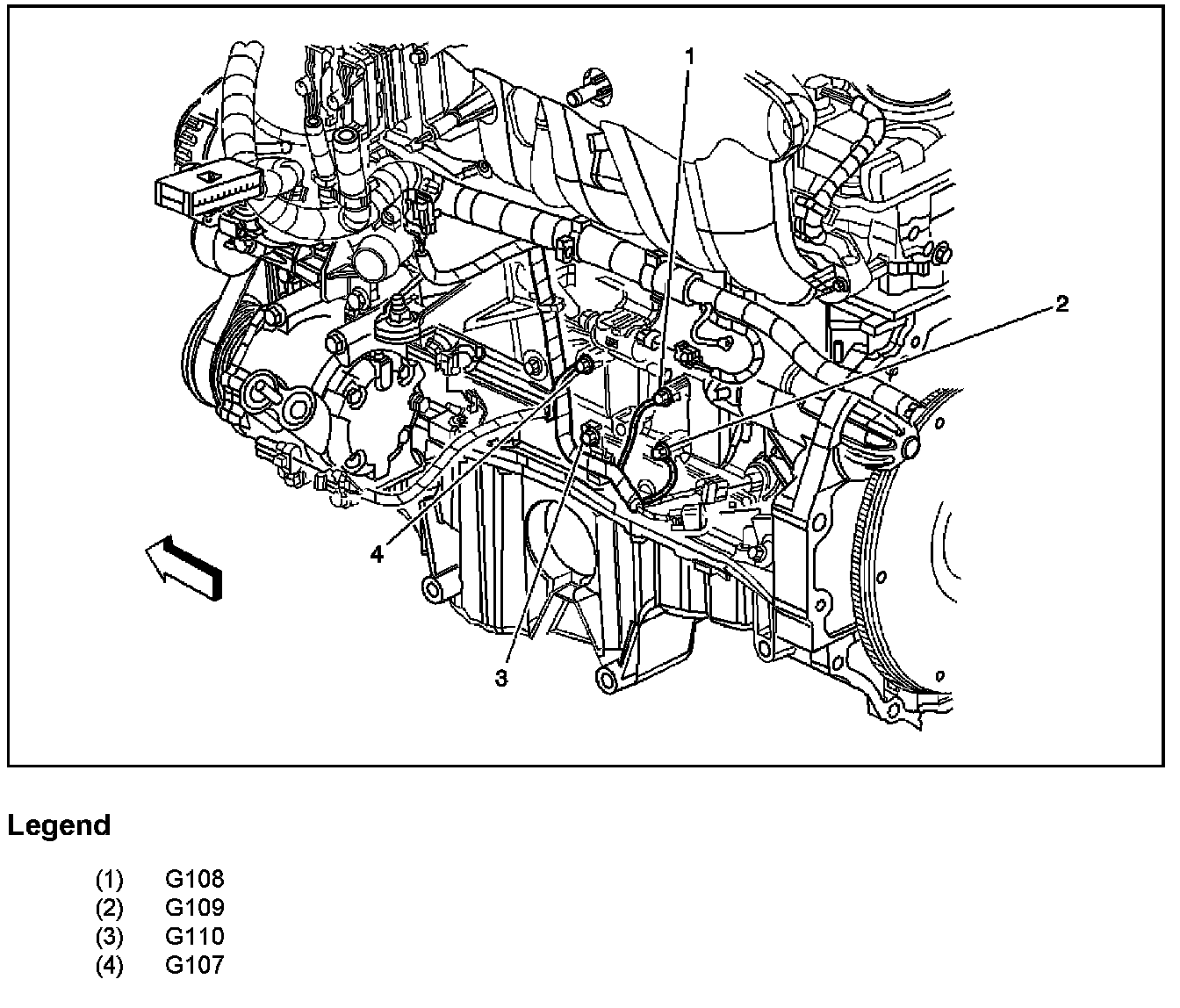

Engine Block Grounds G107, G108, G109, G110:
