Ground Distribution

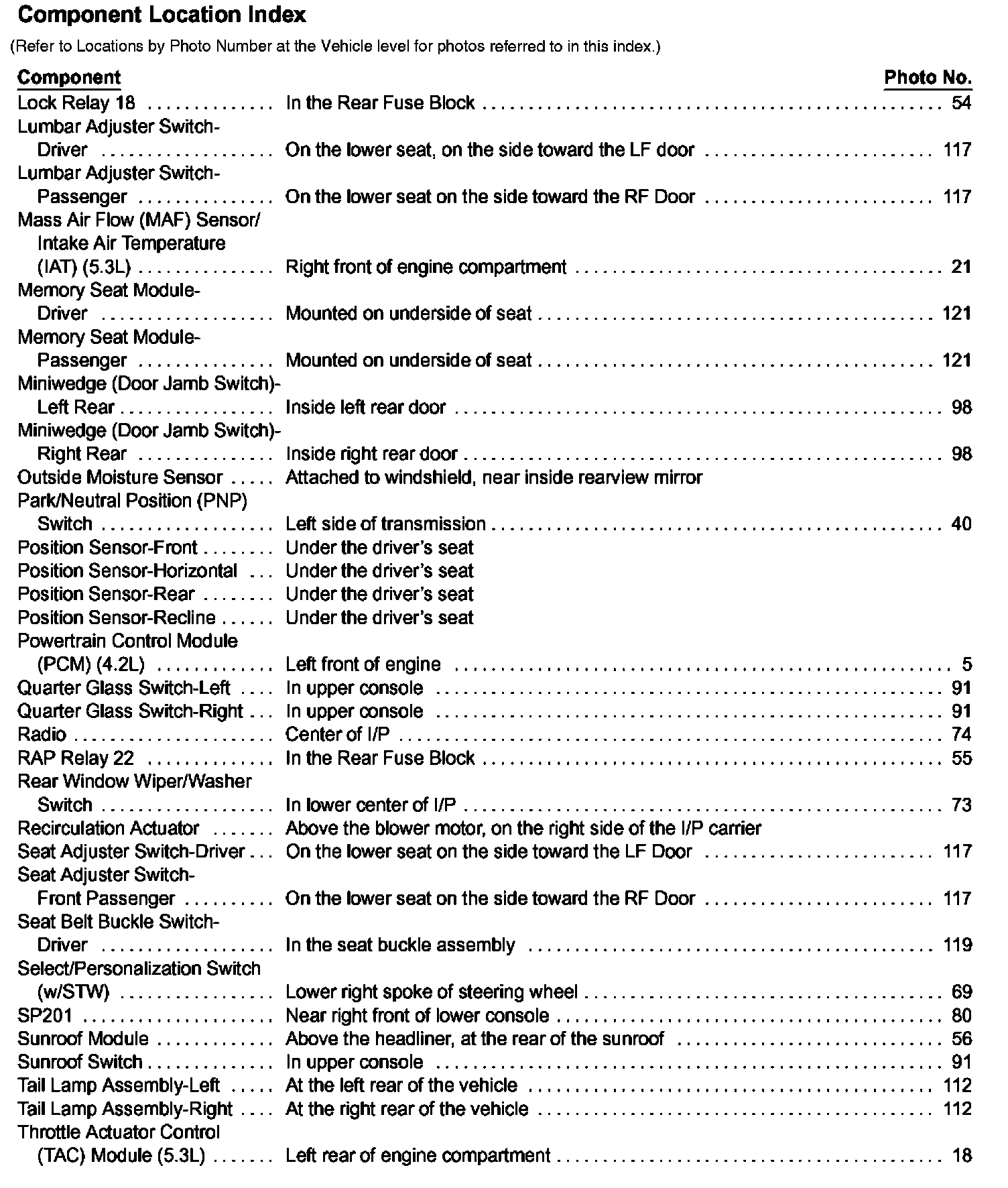

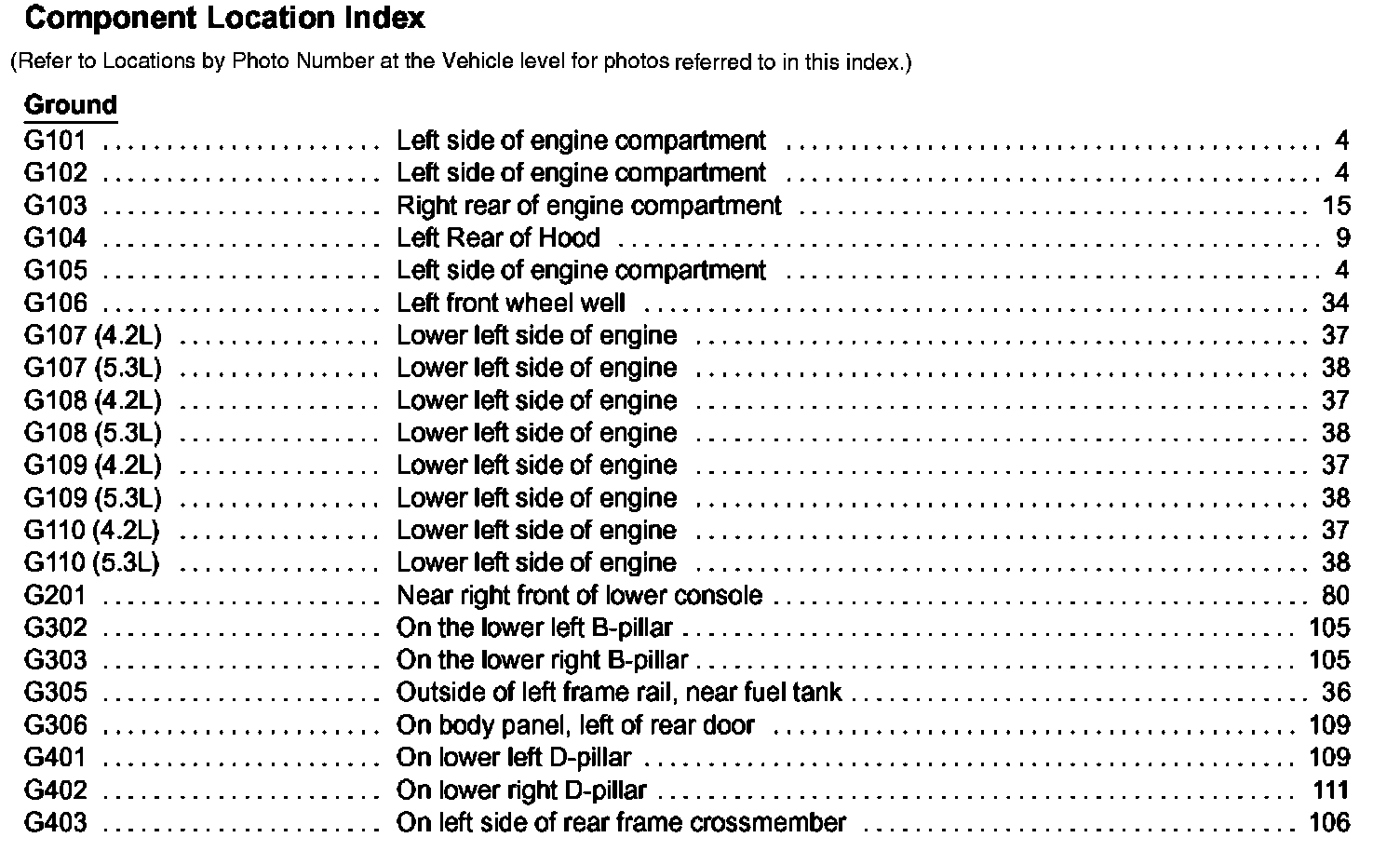

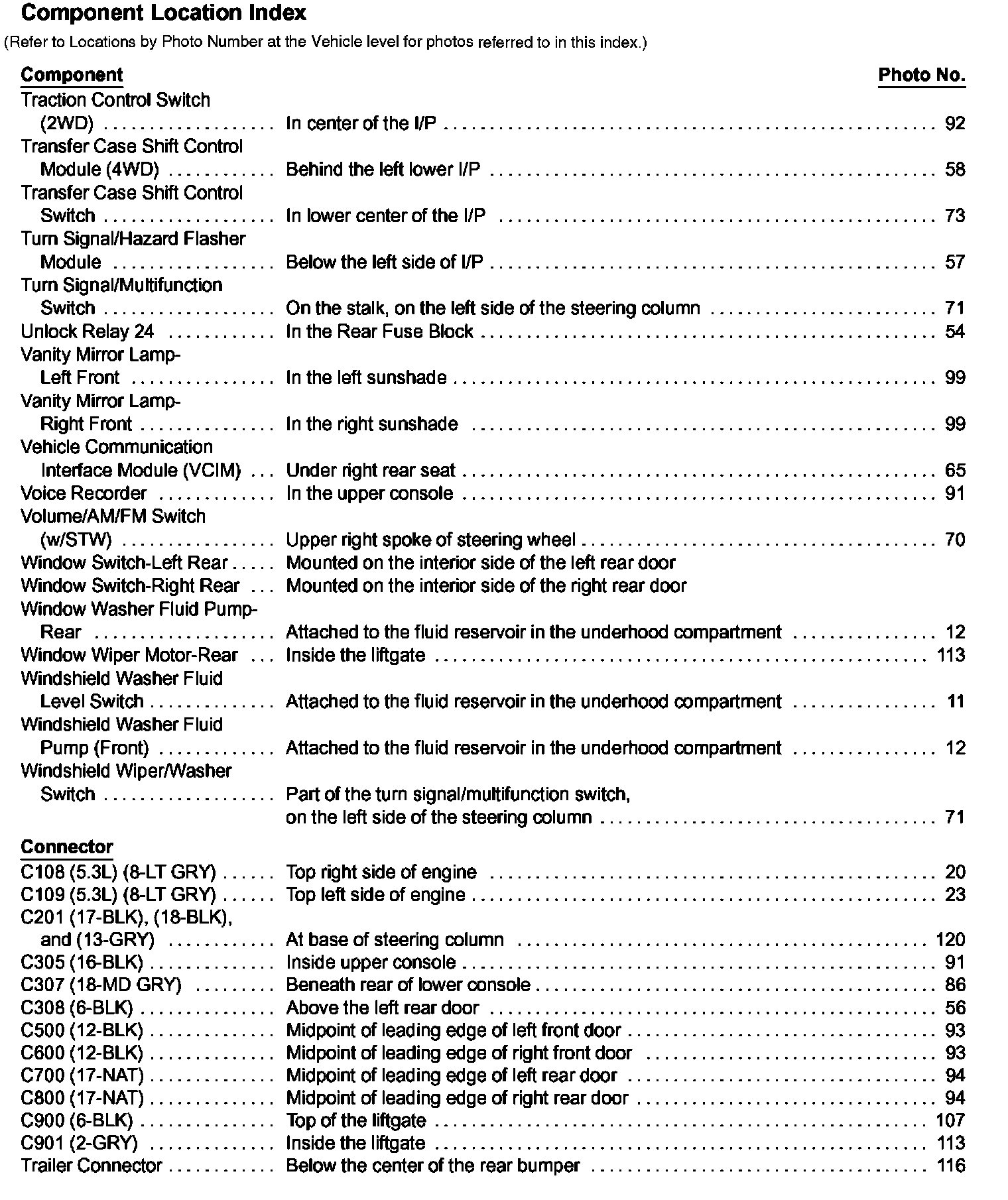

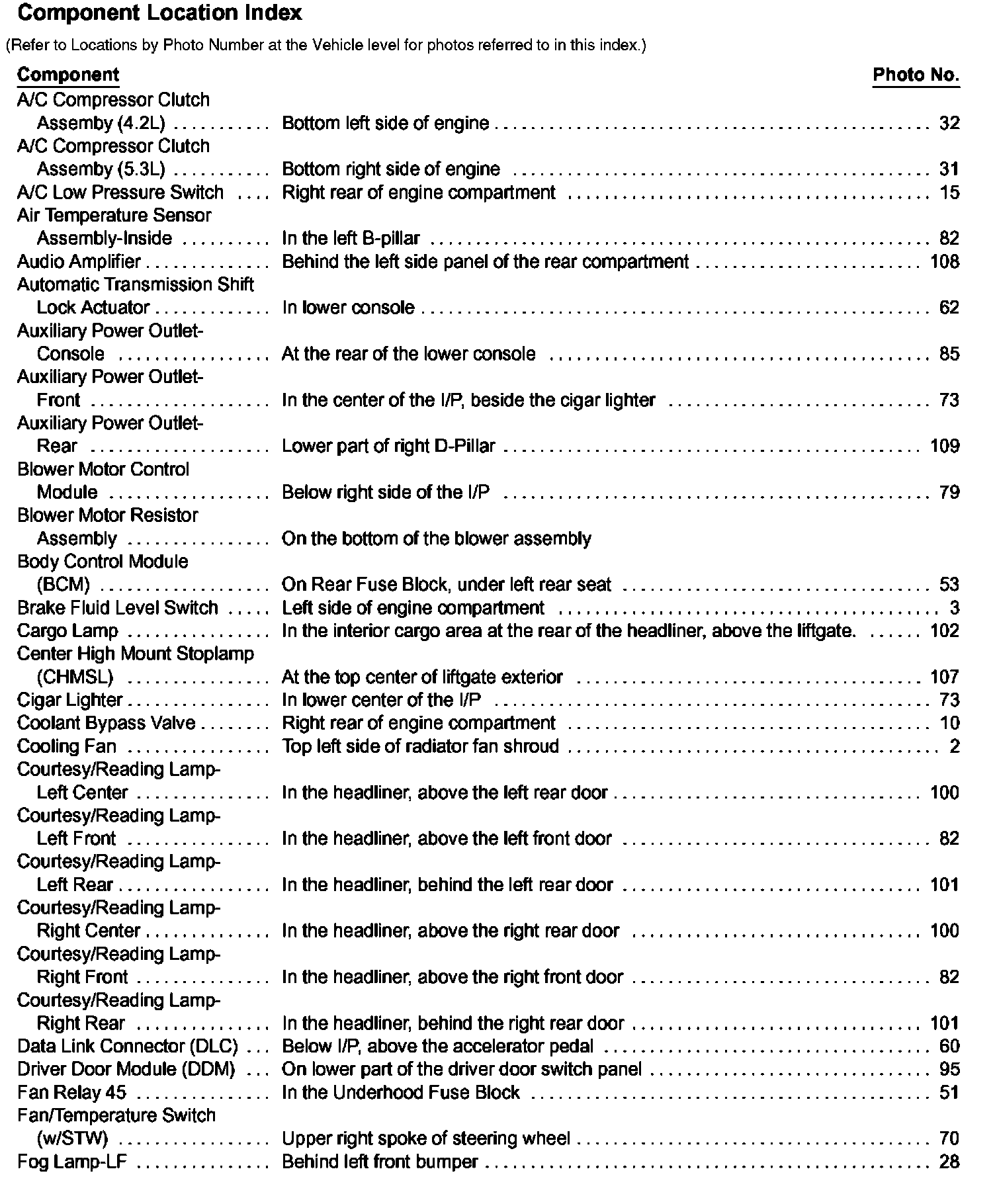

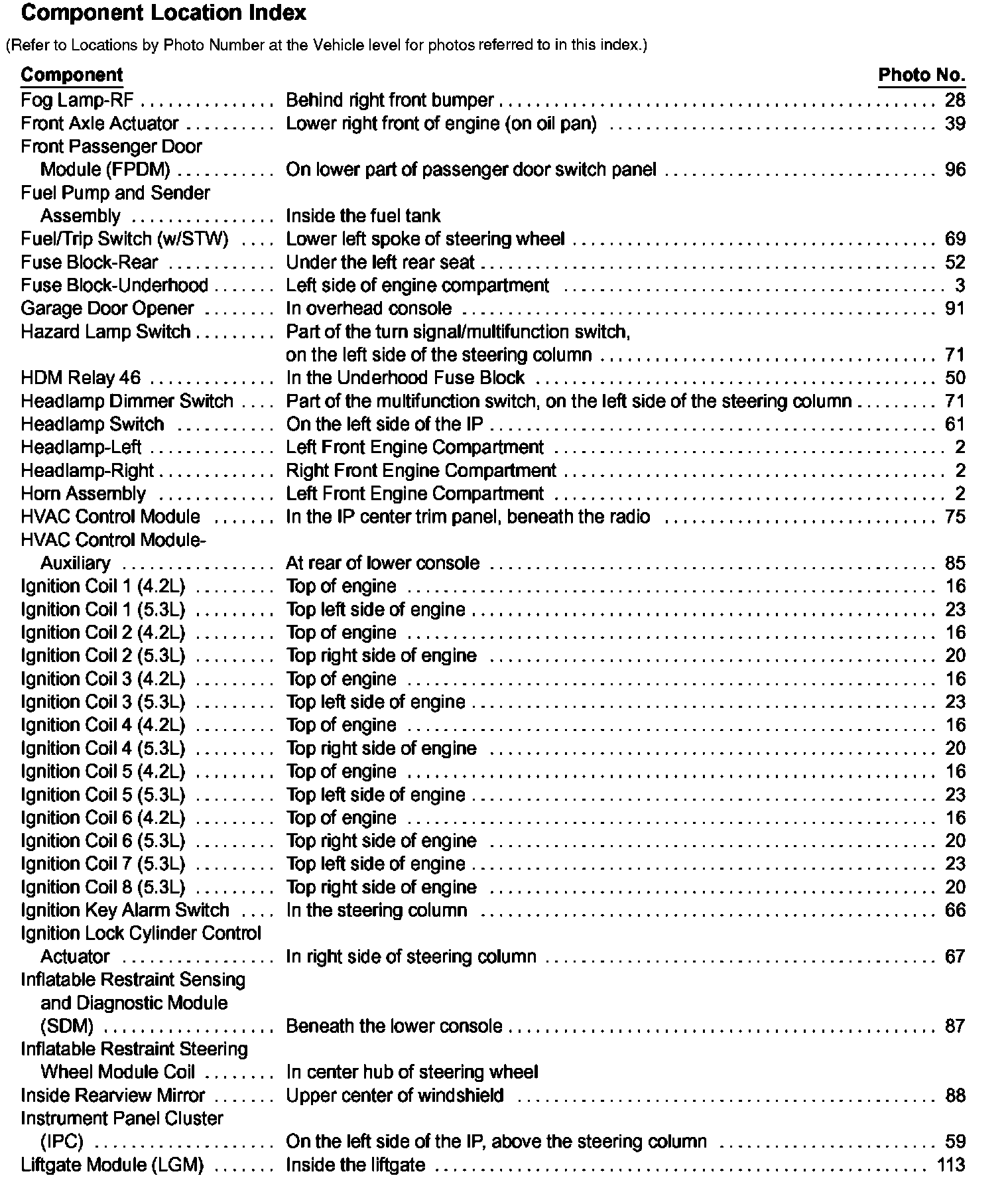

Ground Distribution Part 1:



Ground Distribution Part 2:



Ground Distribution Part 3:



Ground Distribution Part 4:



Ground Distribution Part 5:
