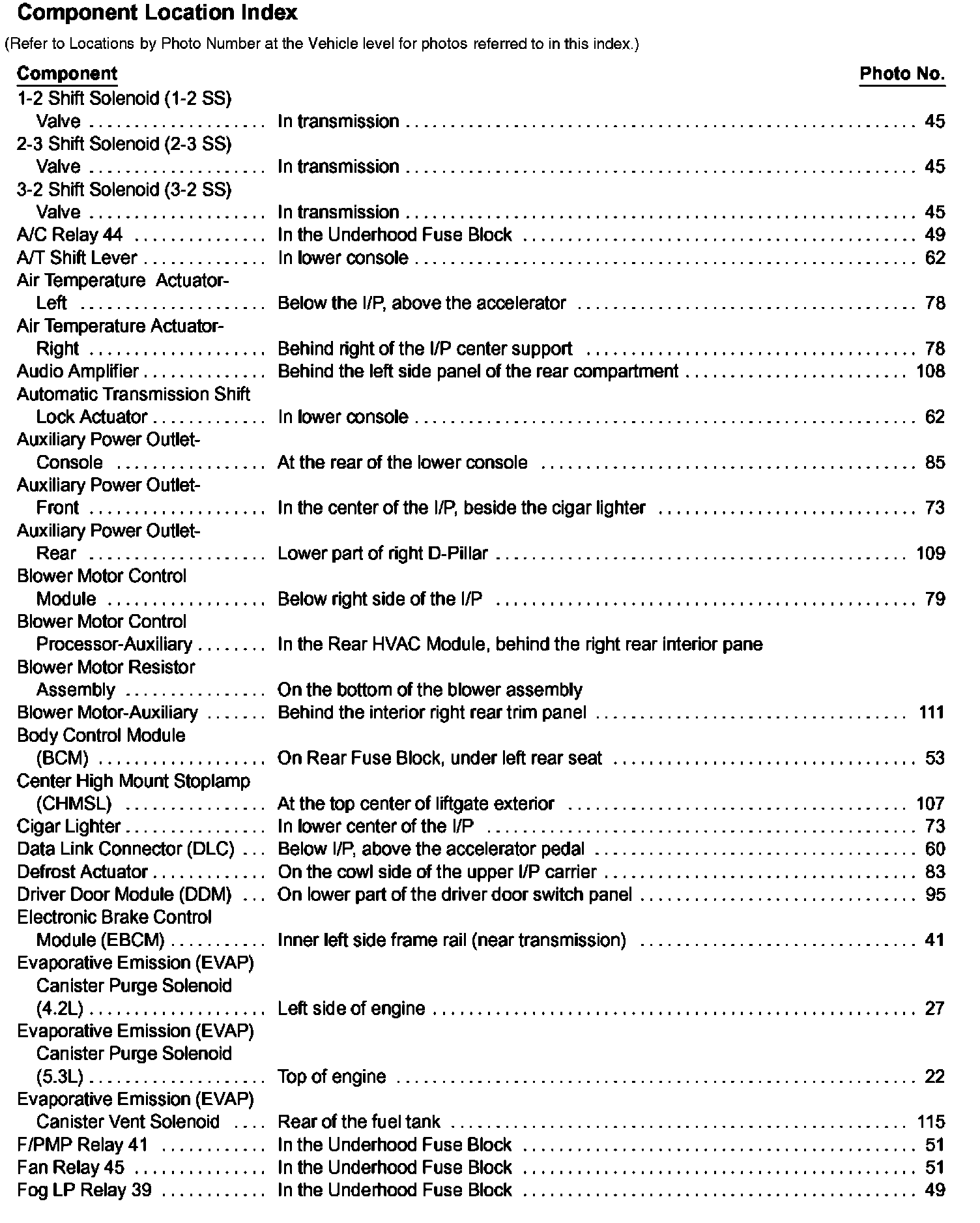

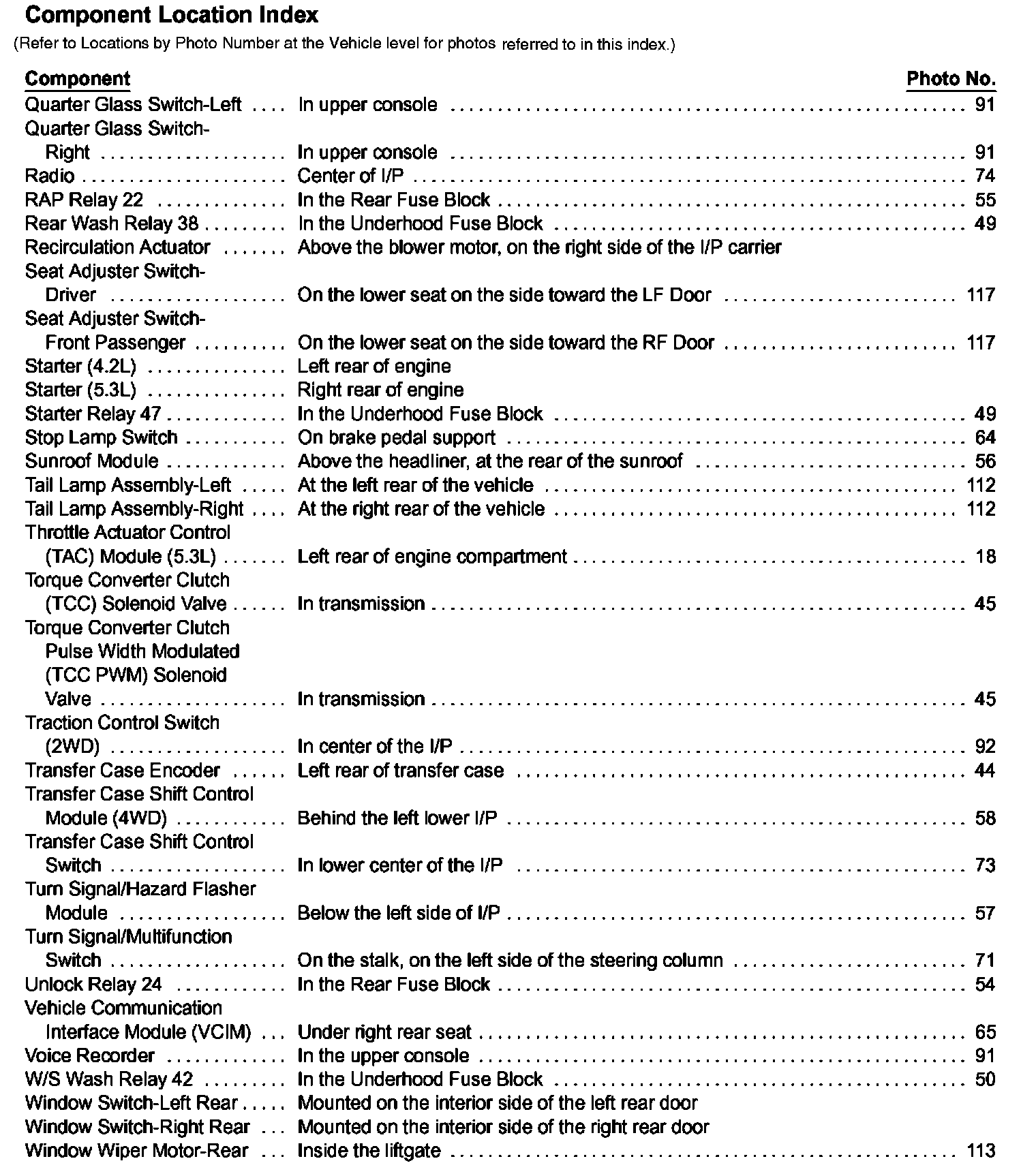

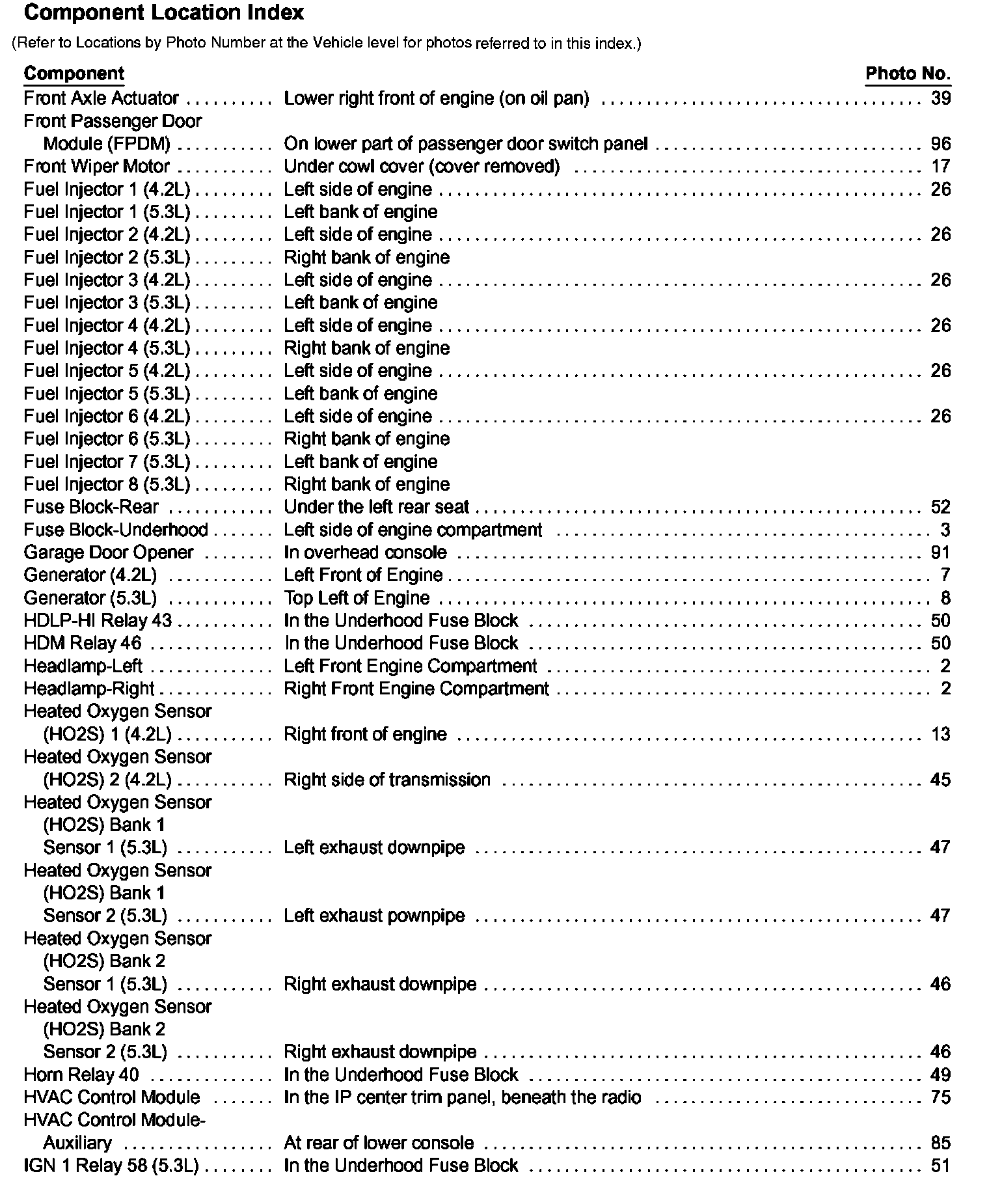

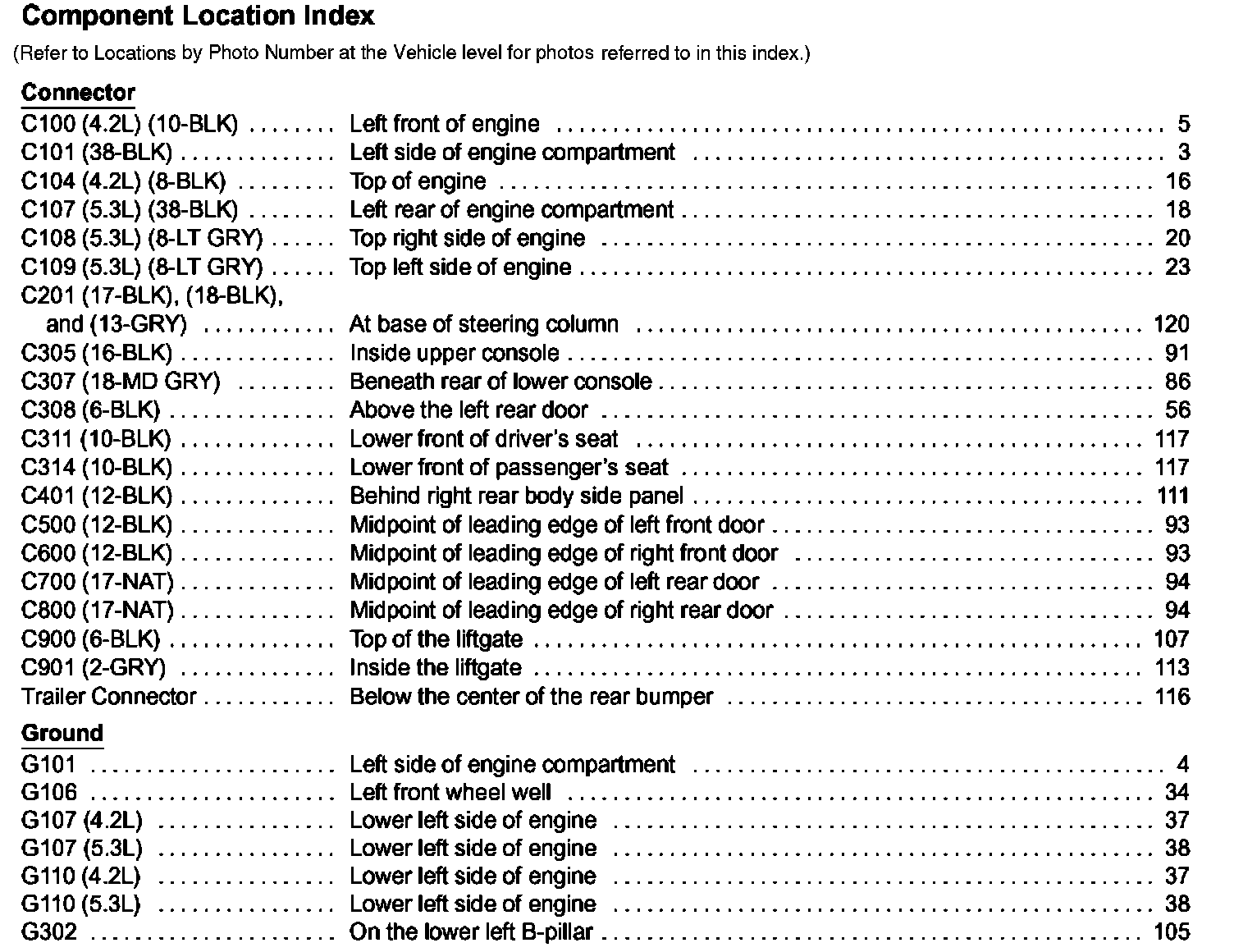

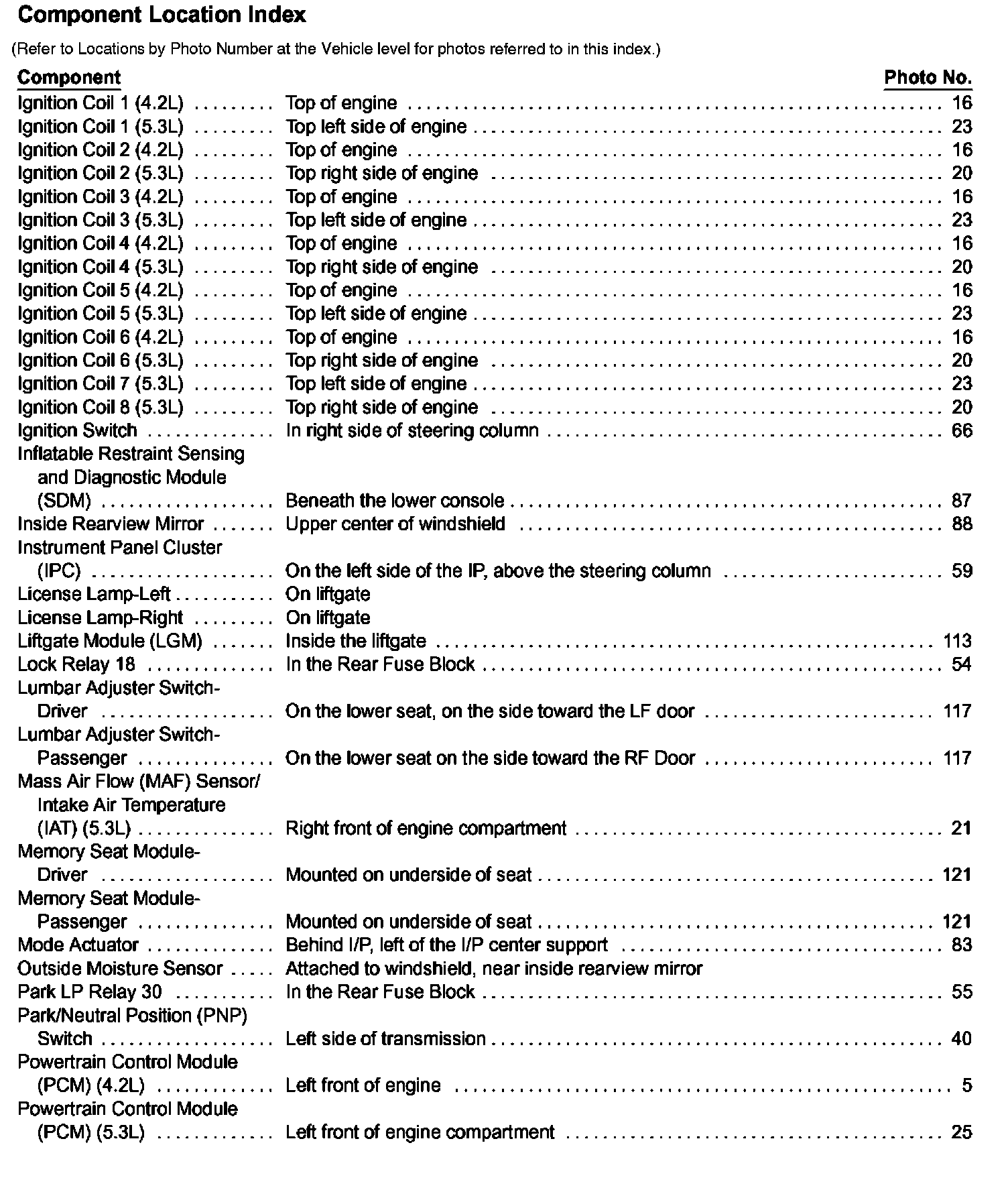

Power Distribution

Power Distribution Part 1:



Power Distribution Part 2:



Power Distribution Part 3:



Power Distribution Part 4:



Power Distribution Part 5:
