System Specifications

Hydraulic Brakes

Fastener Tightening Specifications:





Fastener Tightening Specifications

Brake Component Specifications (1 Of 2):




Brake Component Specifications (2 Of 2):





Brake Component Specifications

Brake System Specifications:





Brake System Specifications

Disc Brakes

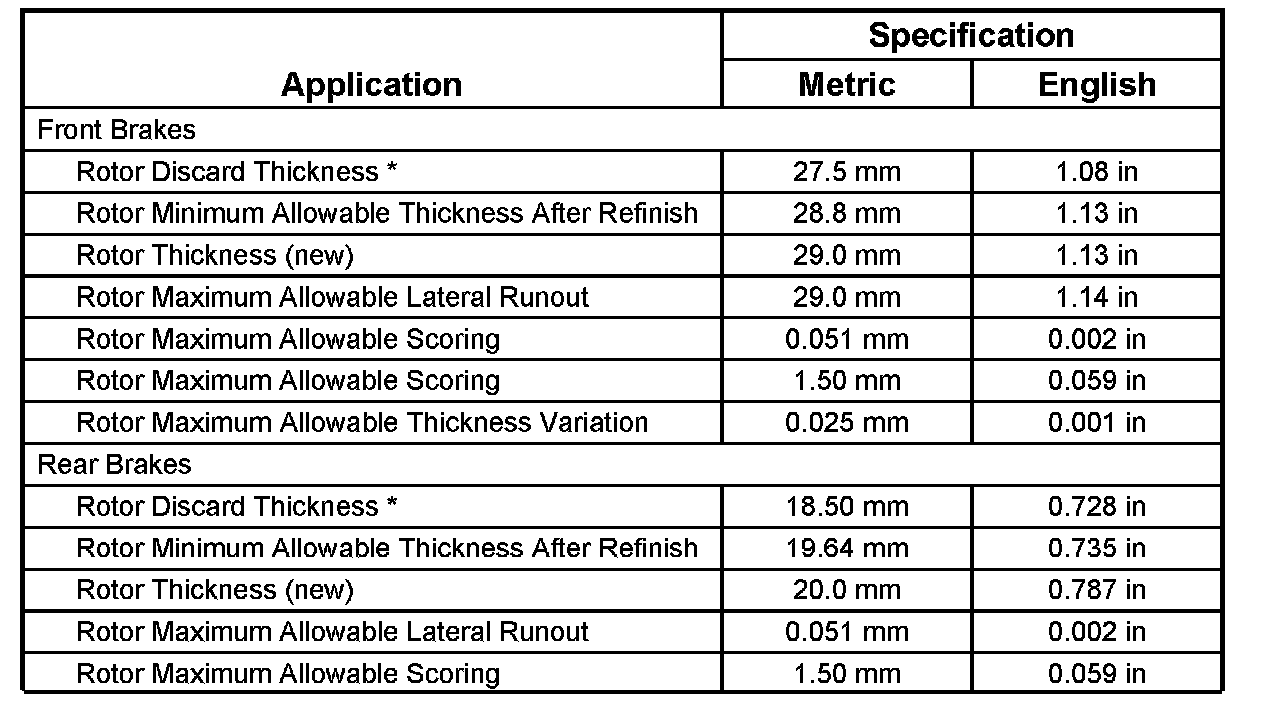

Disc Brake Component Specifications

Park Brake





Fastener Tightening Specifications





Antilock Brake System
