Automatic Transmission Shift Lock Actuator

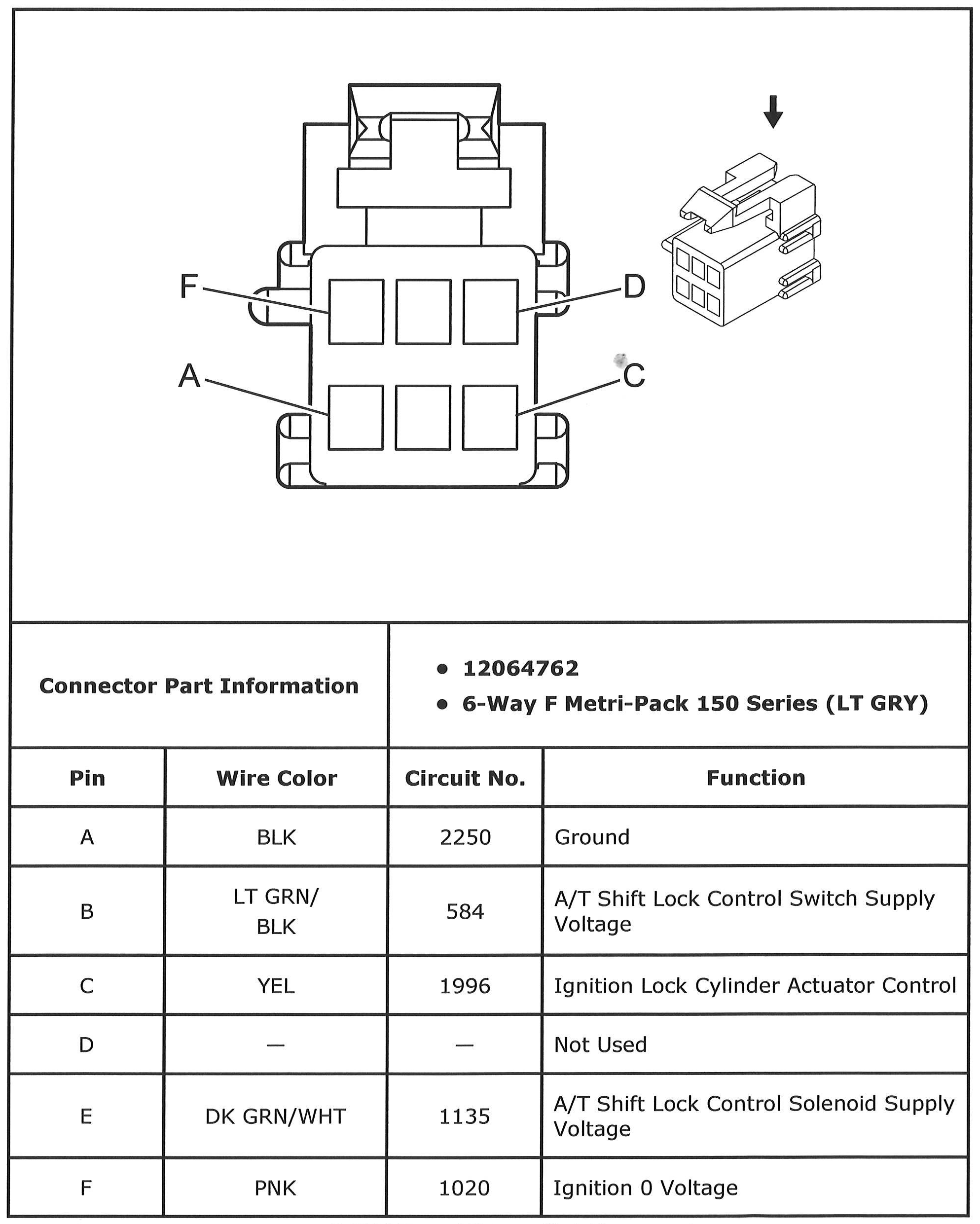

Fig 1: Automatic Transmission Shift Lock Actuator Connector End View
G00537827Courtesy of ISUZU MOTOR CO.
