Transmitter Battery Replacement

  1. Remove a screw to remove the cover (1).
  2. Remove the transmitter (2).
  3. Remove the screws and set the new batteries into the transmitter.
  4. Install the cover to the transmitter.
  5. Check that the keyless entry system works normally.

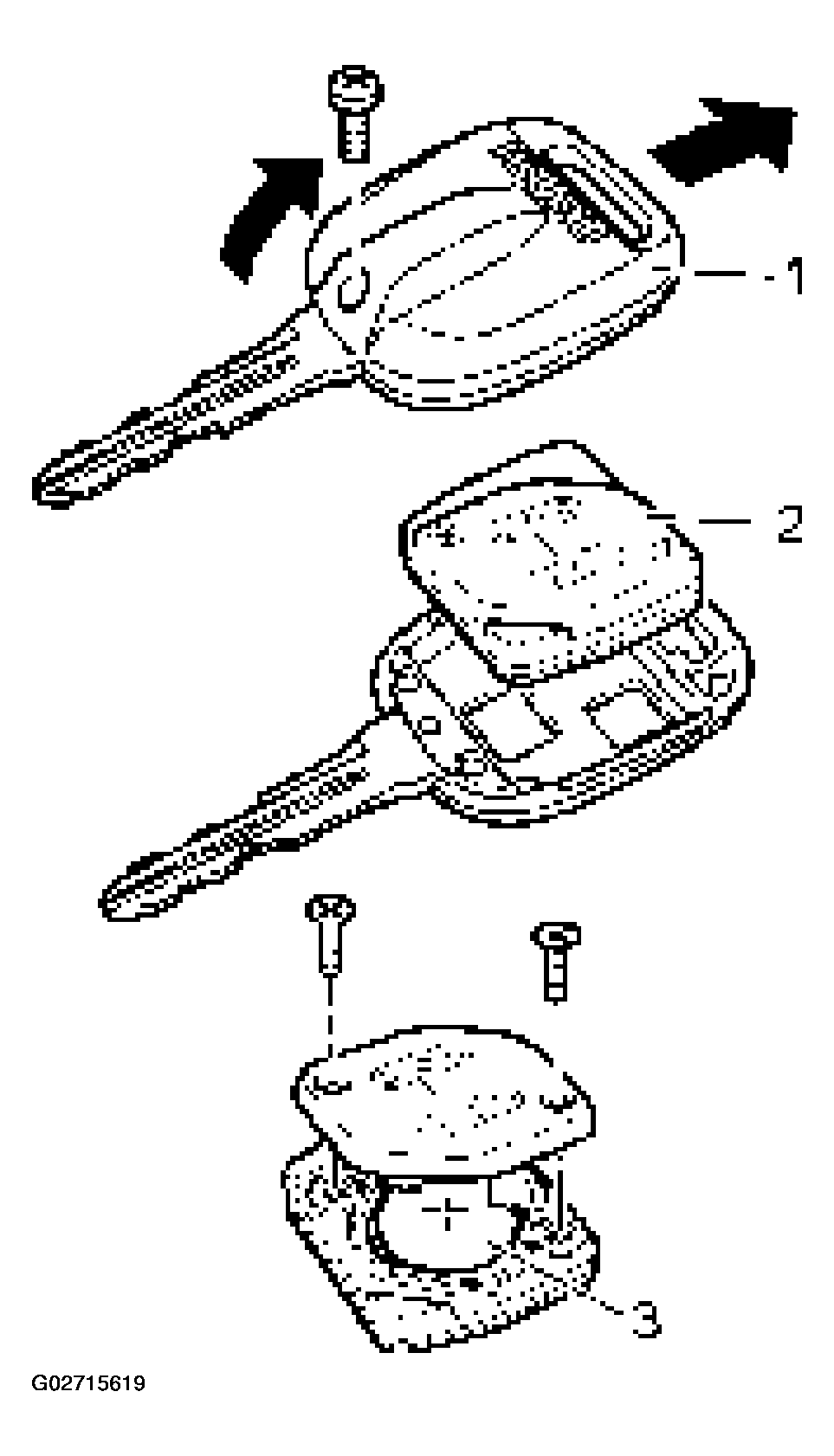

Fig 1: Replacing Transmitter Battery
G02715619Courtesy of ISUZU MOTOR CO.
