Brake Switch: Installation

Adjust stop light switch to specified clearance between switch housing and brake pedal by rotating switch housing. See Fig 1 .
NOTE: Do not attempt to force the push rod into position during the stoplight switch installation and adjustment procedure.

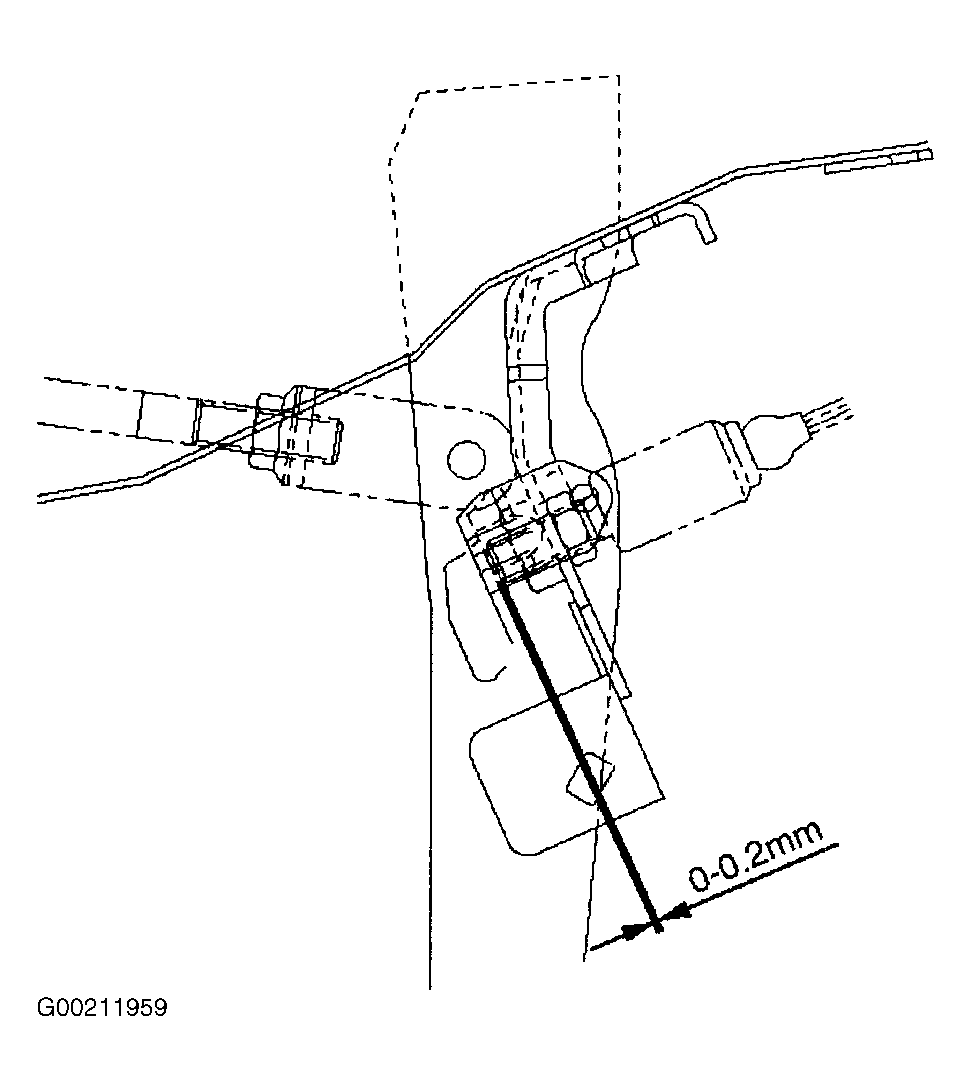

Fig 1: Adjusting Stop Light Switch Between Housing & Brake Pedal
Courtesy of ISUZU MOTOR CO.
Connect connector (1).
Install lock nut (3).
