Rear Wheel Speed Sensor: Installation

  1. Install speed sensor (3).
  2. Tighten the sensor fixing bolt (2) to the specified torque.

    Torque:  24 N.m (17 lb ft)

  3. Connect harness connector (1).

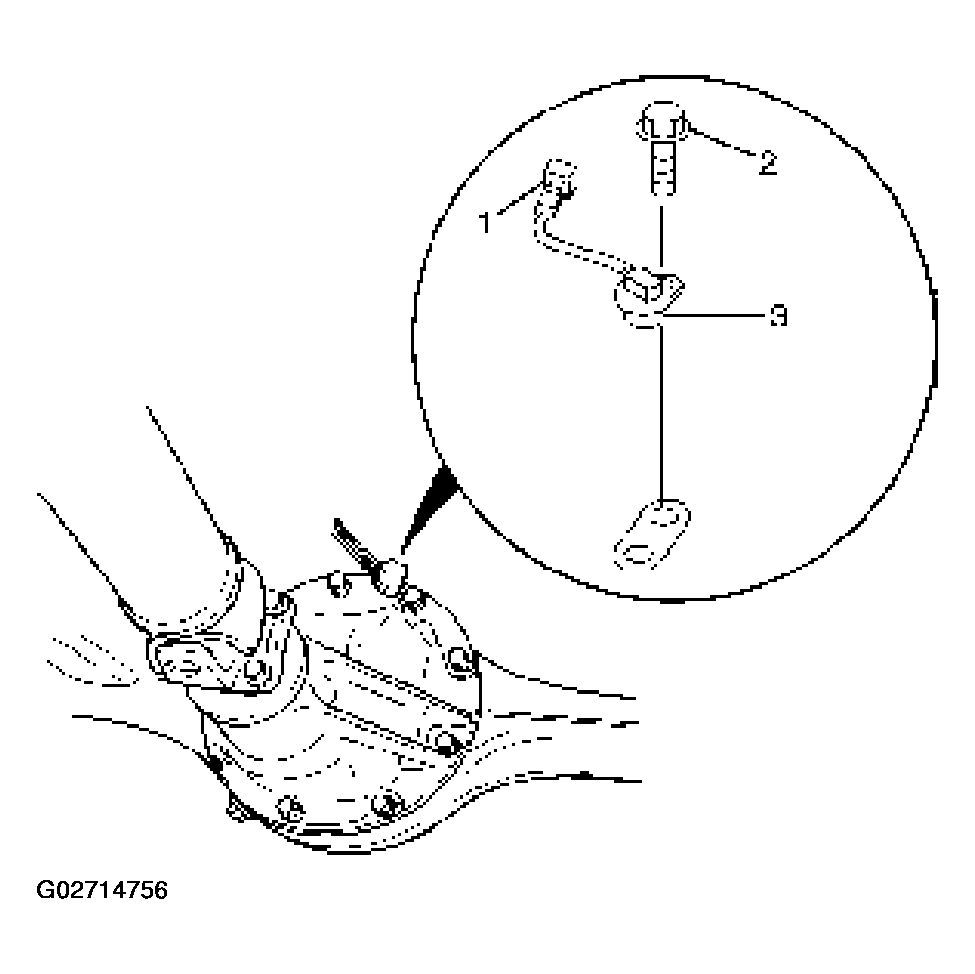

    Fig 1: Installing Speed Sensor
    G02714756Courtesy of ISUZU MOTOR CO.
