Engine Lubrication: General Description

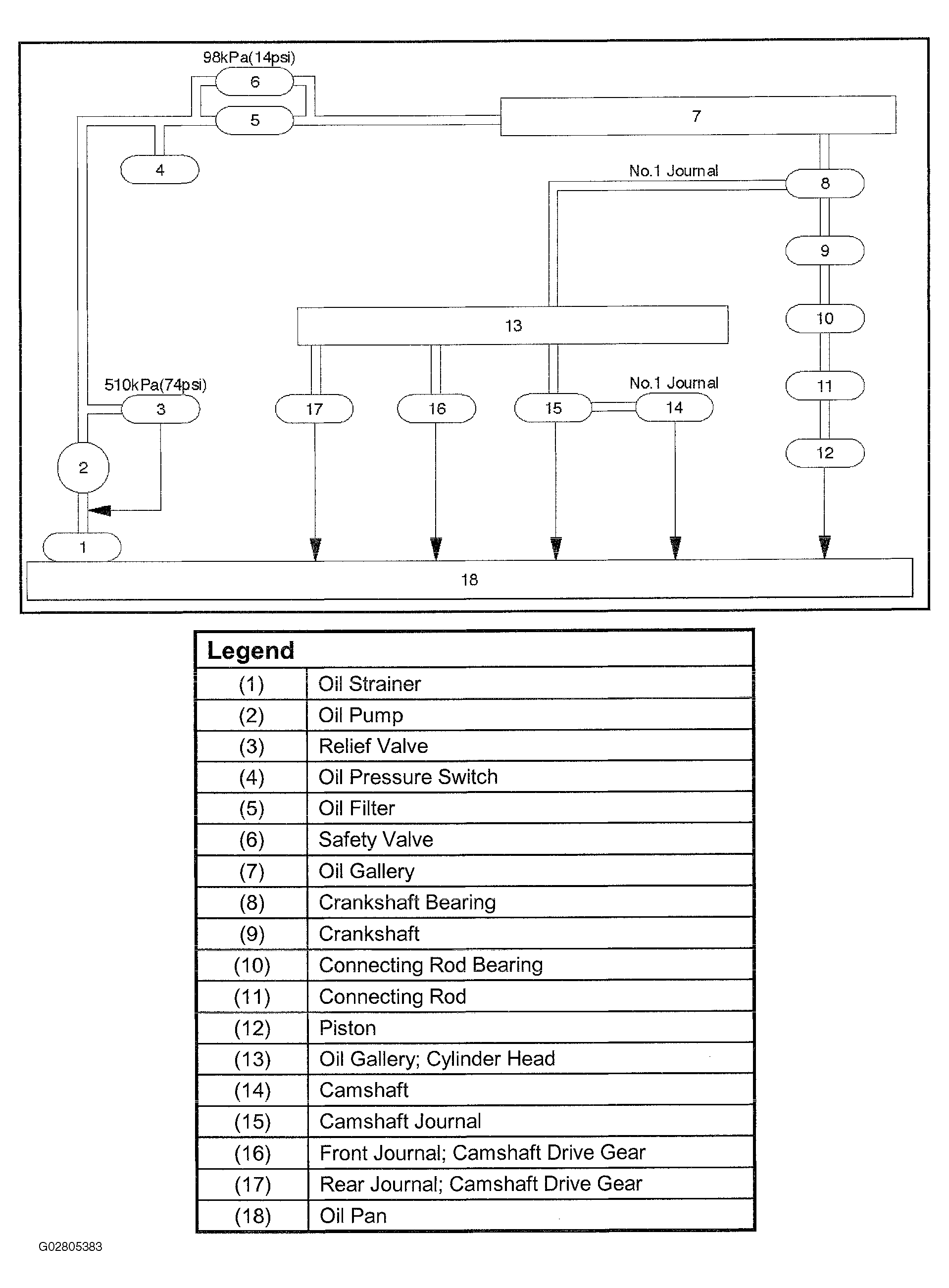

Fig 1: General Description Of Engine Lubrication

G02805383

Courtesy of ISUZU MOTOR CO.
