Air Control Functions

WARNING: This page is about a different car, the 2002 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.

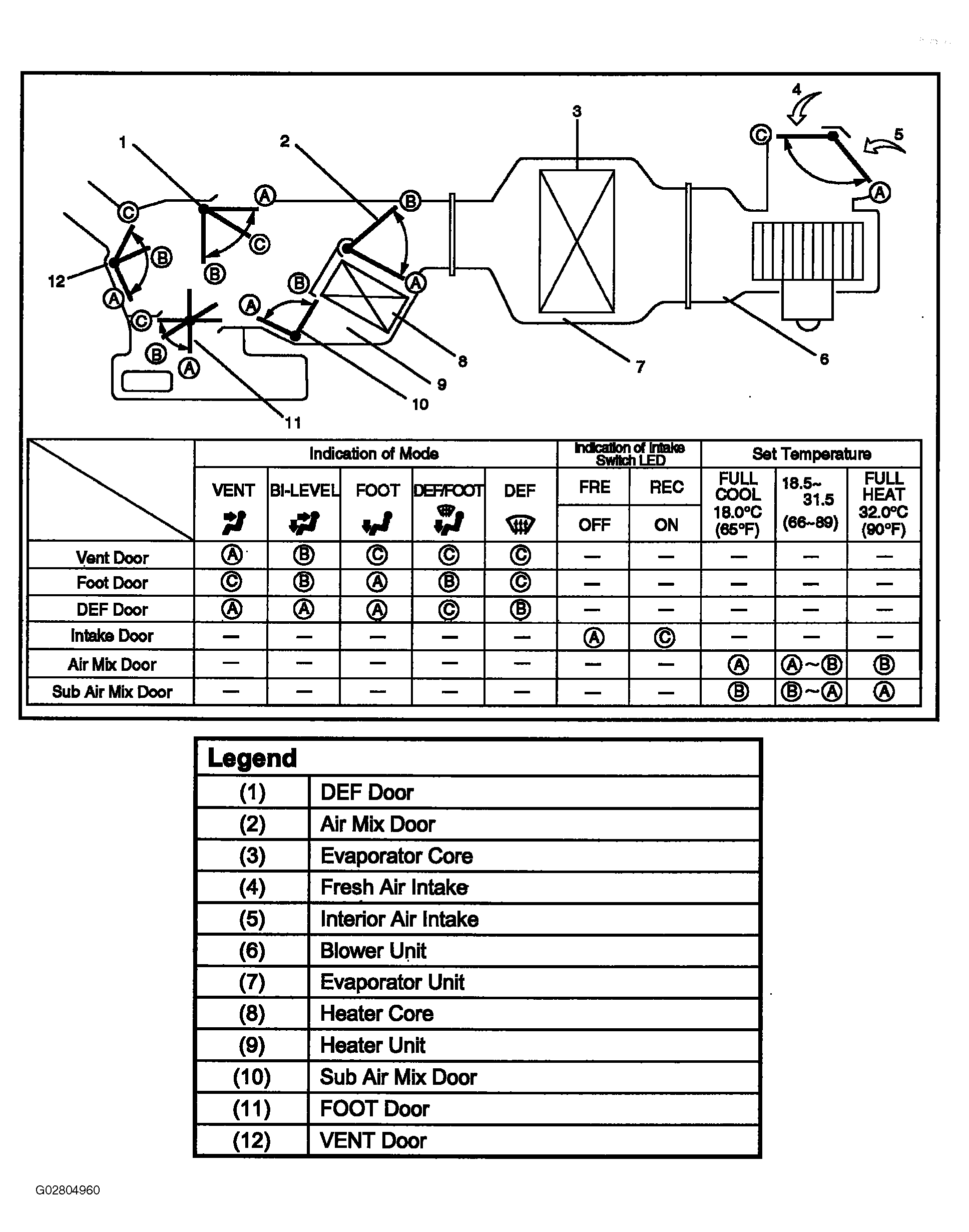

Fig 1: Identifying Air Control Functions
G02804960Courtesy of ISUZU MOTOR CO.
