Section 17 (HVAC Systems): Compressor: Diagnosis

WARNING: This page is about a different car, the 2002 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.

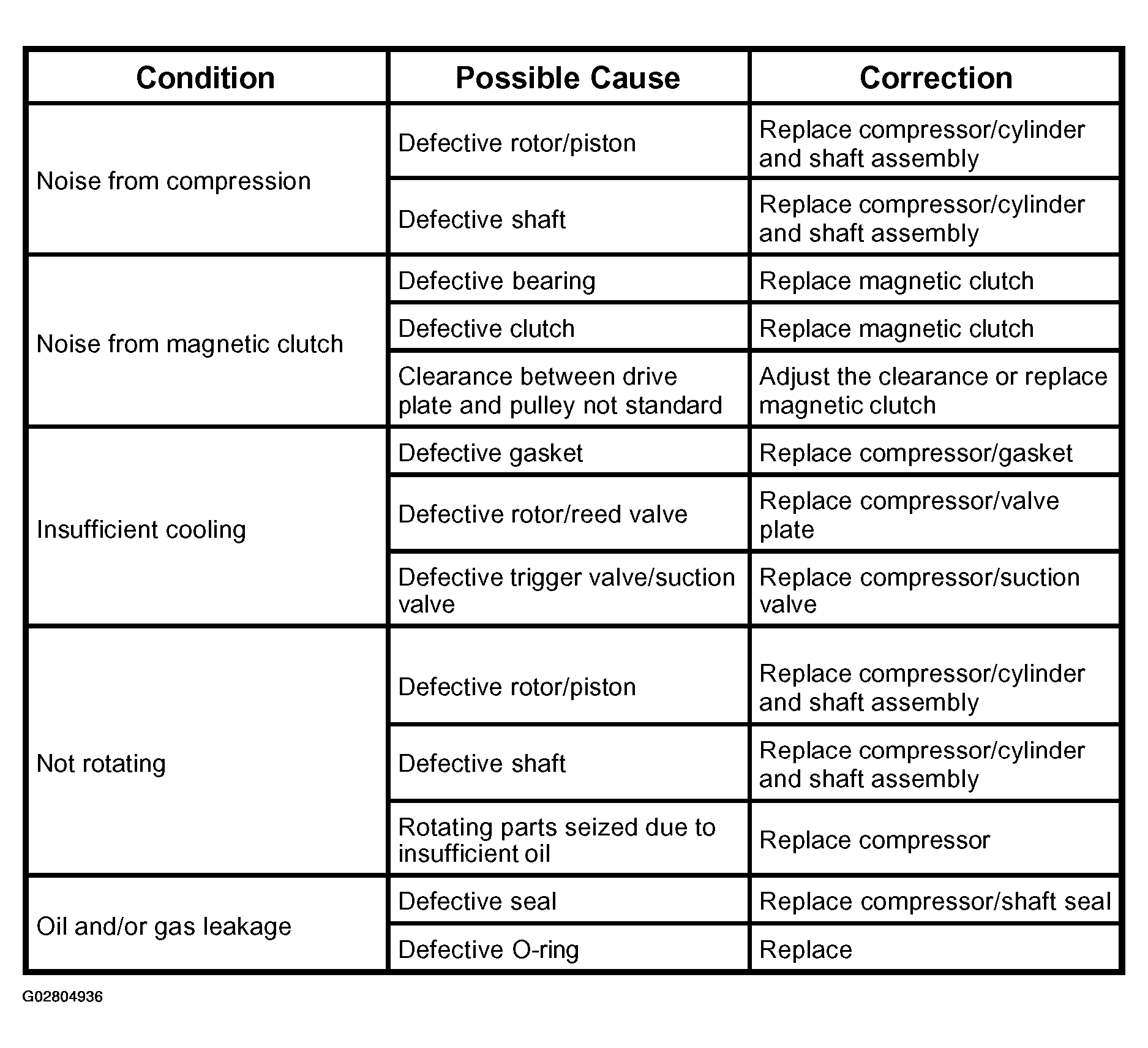

Fig 1: Compressor Diagnostic Chart

Courtesy of ISUZU MOTOR CO.
