Disassembled View: Removal

WARNING: This page is about a different car, the 2002 Isuzu Axiom. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Drain engine coolant.
  3. Discharge and recover refrigerant (with air conditioning)
  4. Remove heater unit.
  5. Remove mode actuator.
  6. Remove the case (mode control) from heater unit.
  7. Remove washer and the mode main lever.
  8. Remove rod.

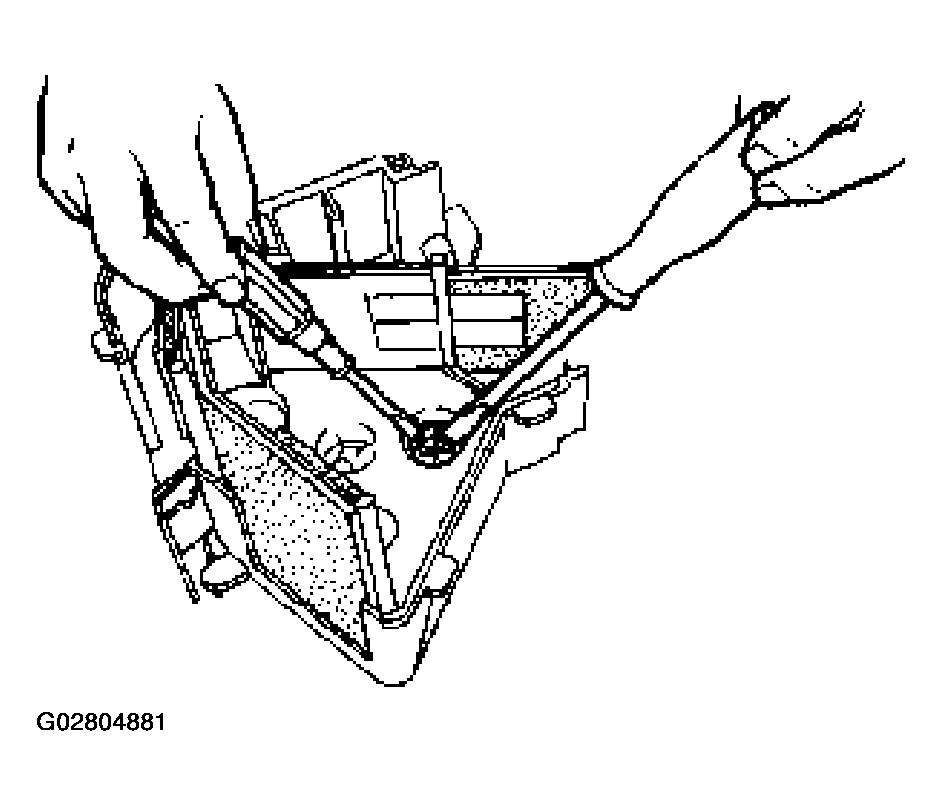

  9. Press the tab of the sub-lever inward, and take out the sub-lever.
    Fig 1: Removing Sub-Lever
    G02804881Courtesy of ISUZU MOTOR CO.
  10. Pull out the door lever while raising up the catch of the door lever.
  11. Remove clip.
