Transponder Program

  1. Select "Body" and "Immobilizer".
  2. Select "Programming" and "Program Transponder-Keys".
  3. See immobilizer status on Tech-2 screen, and enter security code. If the status does not allow the programming, only immobilizer status is displayed.
  4. Insert Non-programmed Transponder-key and press soft key of "Confirm".

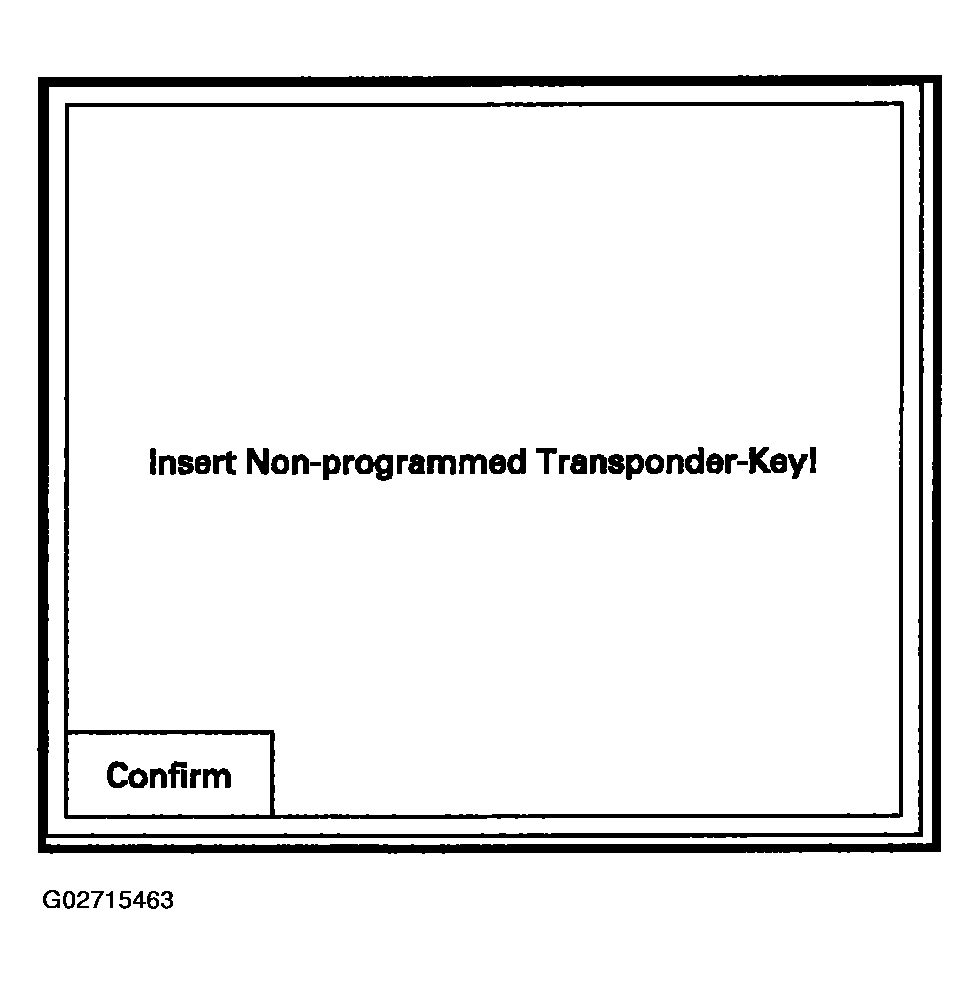

    Fig 1: Identifying Transponder Program Mode Display (1 Of 2)
    G02715463Courtesy of ISUZU MOTOR CO.
  5. "Turn On ignition key", is displayed if the ignition is off.
  6. The transponder status is displayed if the status does not allow the programming.
  7. When programming starts "Programming Transponder - key!" is displayed.
  8. Turn off Ignition key.
  9. Turn On Ignition key.
  10. If the programming was not successful, the transponder status is only displayed.
  11. To program more illustration press soft key.

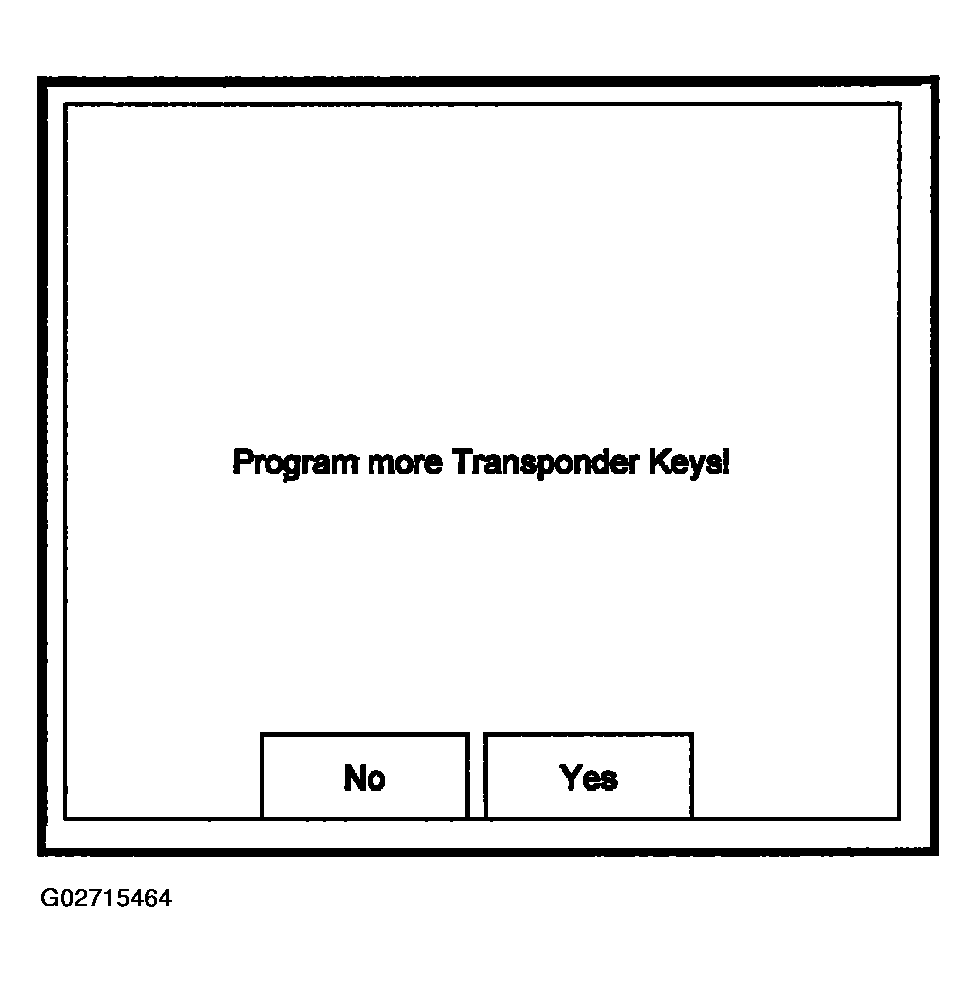

    Fig 2: Identifying Transponder Program Mode Display (2 Of 2)
    G02715464Courtesy of ISUZU MOTOR CO.
  12. See programming result.
