DTC P0713: Transmission Fluid Temperature (TFT) Sensor Circuit High Input: Notes

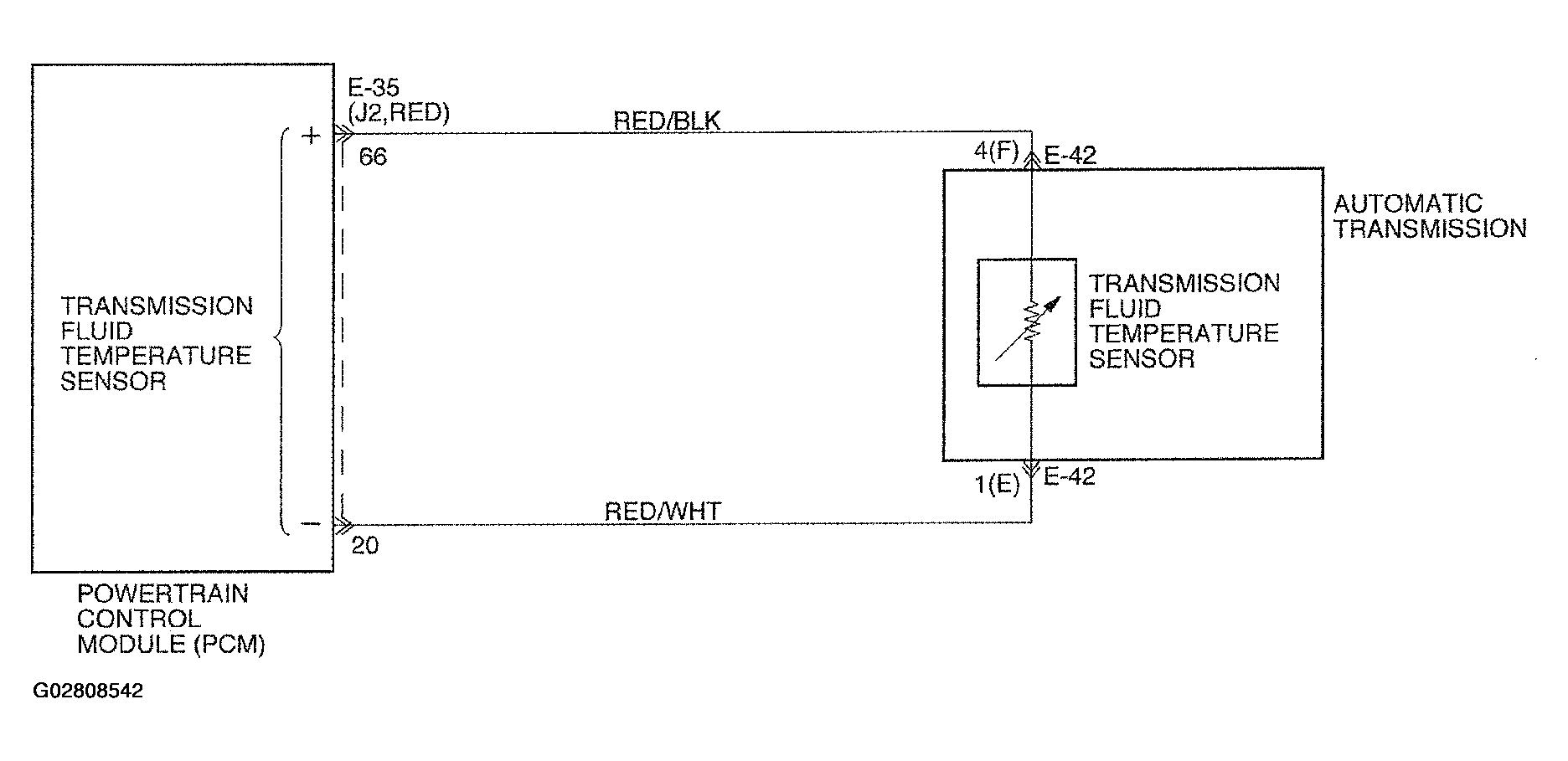

Fig 1: DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input Circuit Diagram
G02808542Courtesy of ISUZU MOTOR CO.
