Getting Started

Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:

1. The Isuzu System PCMCIA card inserts into the Tech 2.
2. Connect the SAE 16/19 adapter to the DLC cable.
3. Connect the DLC cable to the Tech 2.
4. Mark sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC.

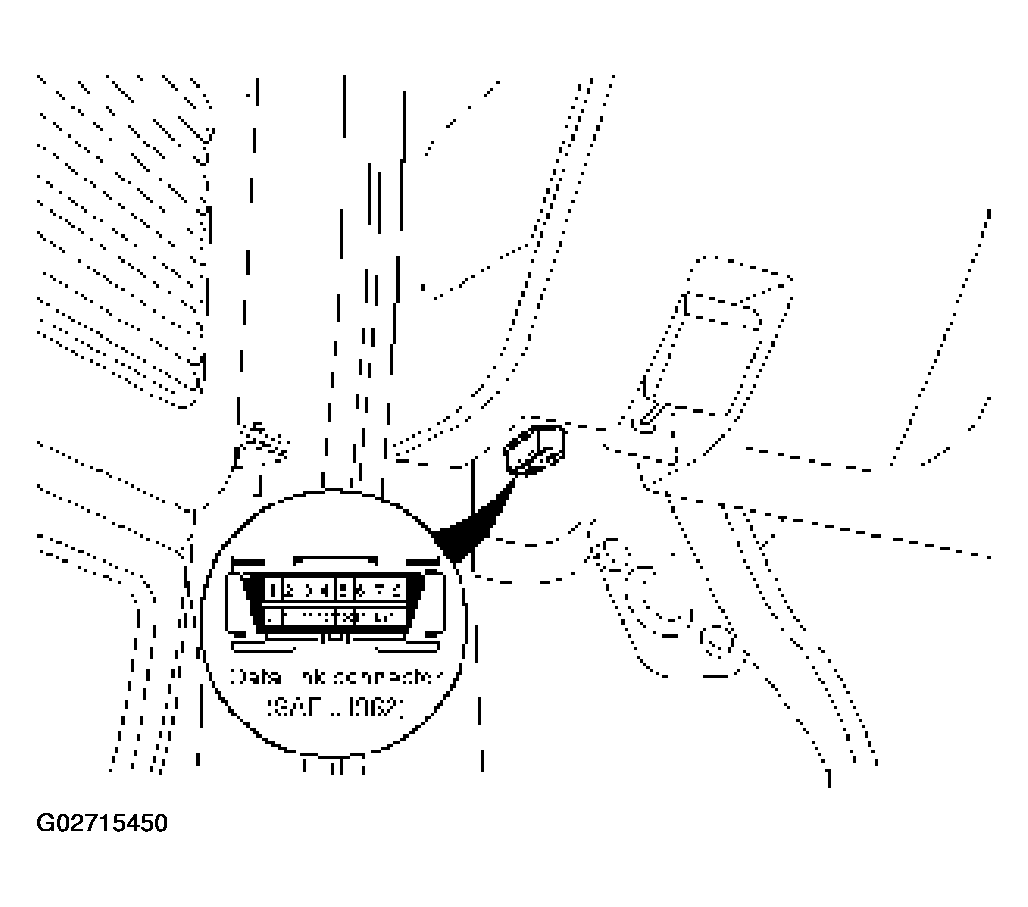

   Fig 1: Locating Data Link Connector

   Courtesy of ISUZU MOTOR CO.
   Fig 2: Identifying Data Link Connector

   Courtesy of ISUZU MOTOR CO.
6. Turn on the vehicle ignition (key) switch.
7. Power the Tech-2 ON and verify the Tech -2 power-up display.

Fig 3: Identifying Tech -2 Power-Up Display

Courtesy of ISUZU MOTOR CO.
