Electronic Hydraulic Control Unit and Associated Parts: Notes

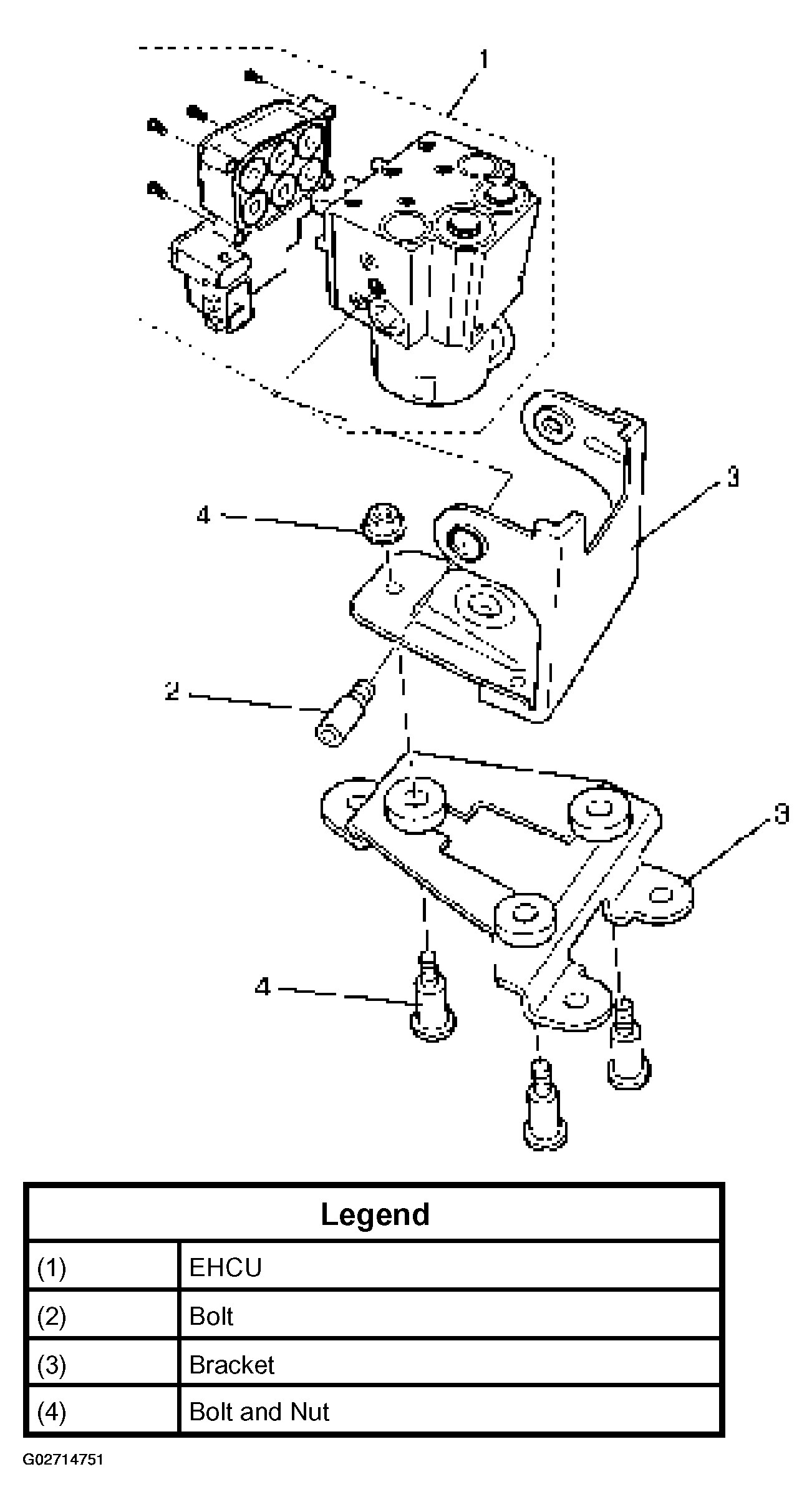

Fig 1: Identifying Electronic Hydraulic Control Unit & Associated Parts
G02714751Courtesy of ISUZU MOTOR CO.
