Front Wheel Speed Sensor and Associated Parts: Notes

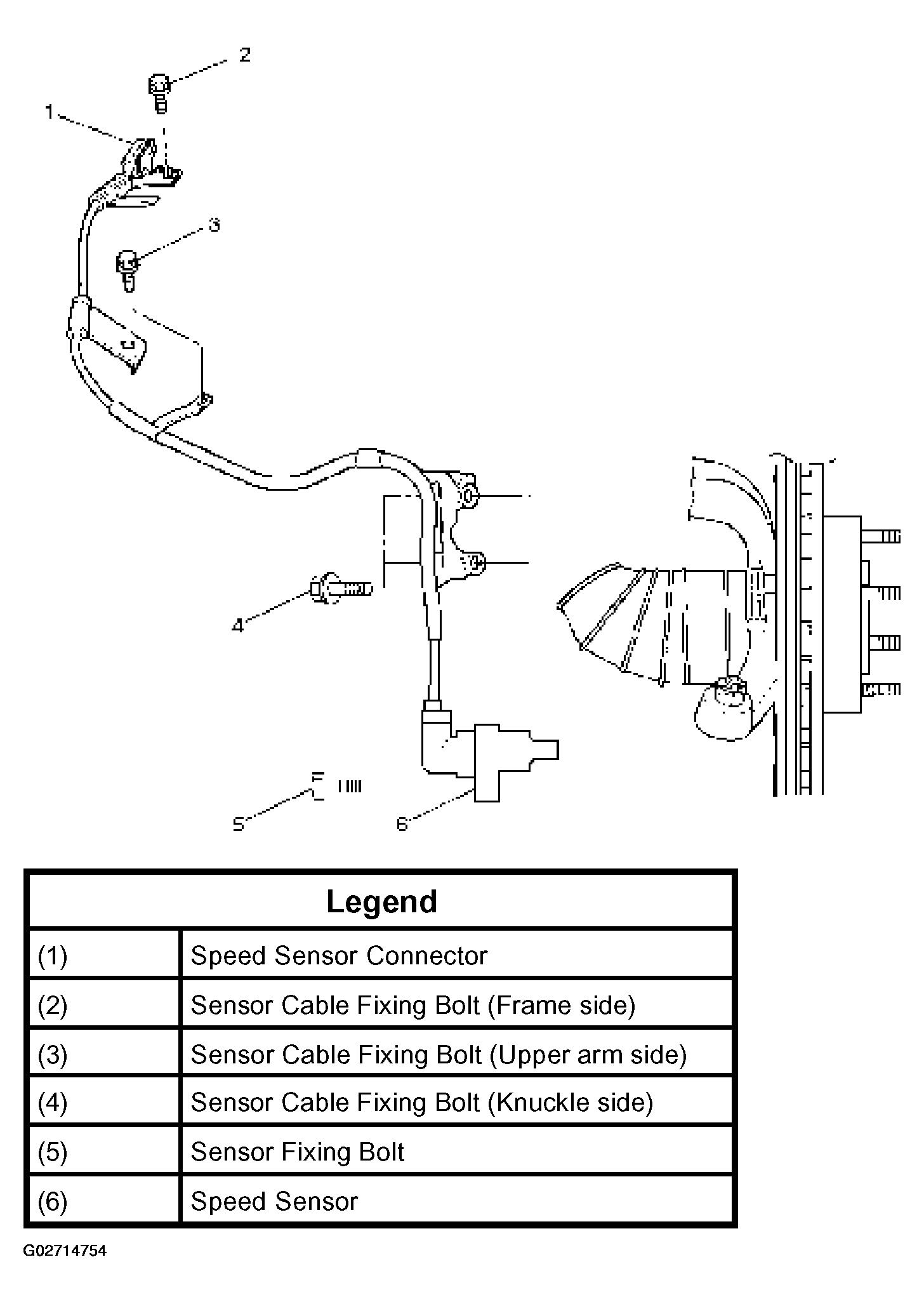

Fig 1: Identifying Front Wheel Speed Sensor And Associated Parts
G02714754Courtesy of ISUZU MOTOR CO.
